Jacobsen Fairway 71105 User Manual

17
> Change from previous revision
FAIRWAY MOWER
Item Part No. Qty. Description Serial Numbers/Notes
1
132506 1 Steel Roller
2 500534 2 • Bearing, Cup and Cone
3 338647 2 • Seal, Inner Grease
4 3005156 2 • Sleeve, Wear
5 3003413 1 • Shaft, Roller
6 471214 2 • Grease Fitting, Straight
7 367029 2 • Locknut, 3/4-16
8 3004882 2 • Seal, Excluder
9 500763 1 Bracket, Left Side Roller
10 500764 1 Bracket, RIght Side Roller
11 412003 1 • Screw, 1/2-13 x 1-1/2” Sq Set
12 446154 1 • Lockwasher, 1/2 Heavy
13 443818 1 • Nut, 1/2-13 Hex Jam
14 400266 2 Screw, 3/8-16 x 1-1/2” Hex Head
15 446142 2 Lockwasher, 3/8 Heavy
16 444510 2 Nut, 3/8-16 Square

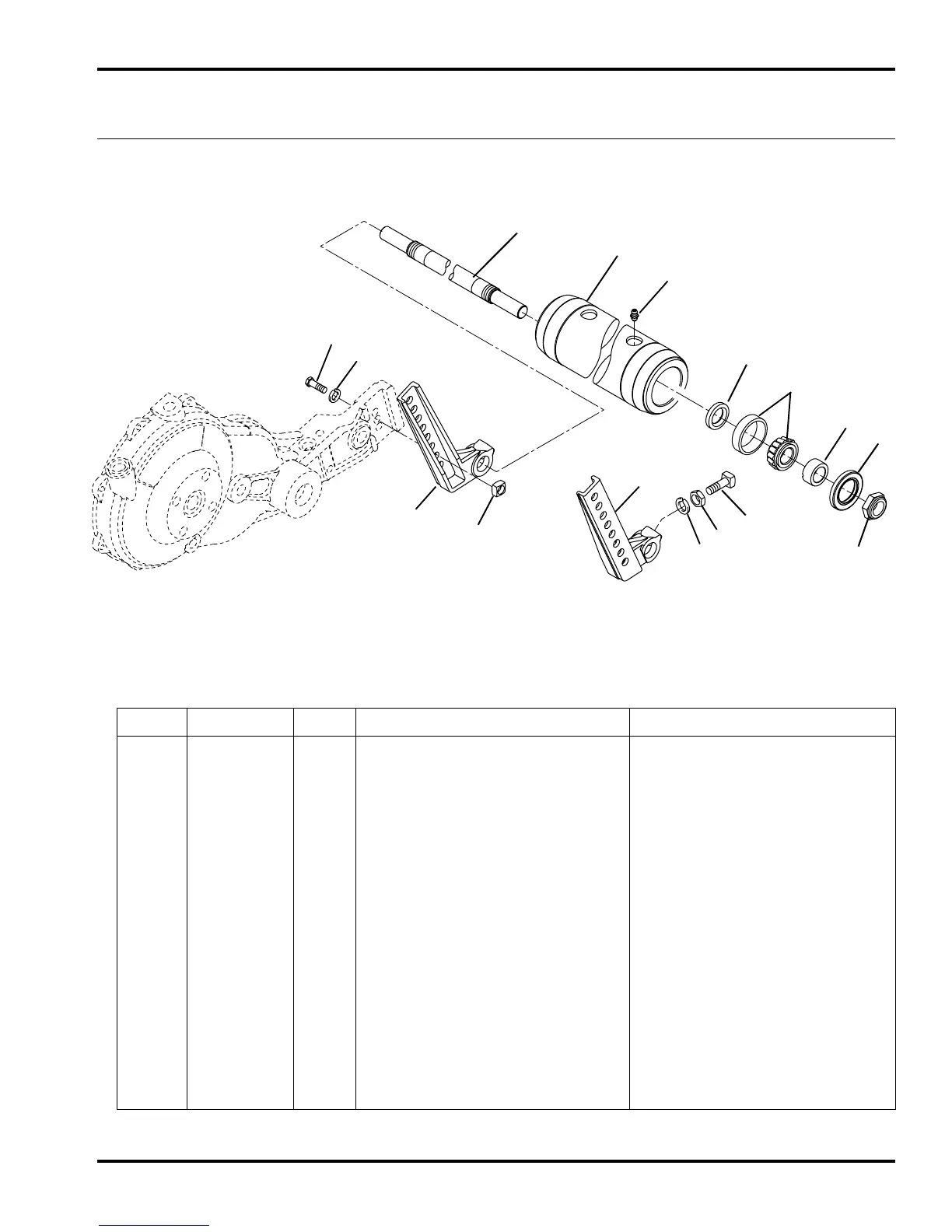

2.1 Rear Roller
Serial No. All
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
