4 CONTROLS
6
4 CONTROLS
4.1 CONTROLS ______________________________________________________________
4.2 CONTROL DESCRIPTIONS__________________________________________________
A.
Clutch Handle
Used to engage and disengage the clutch. To
disengage clutch, turn pointers towards front of
mower. To engage clutch, turn pointers toward rear of
mower. After moving handle, rock the wheels back
and forth to make sure the clutch is engaged or
disengaged.
B.
Filler Plug
Used to add grease to gear housings.
C.
Level plug
Used to determine if grease needs to be added to
gear housing. Grease level should be at bottom of
plug hole.
D.
Bedknife Adjusting Handle
Used to adjust clearance between reel and bedknife.
Turn handle clockwise to bring bedknife closer to reel
and counterclockwise to move away from reel.

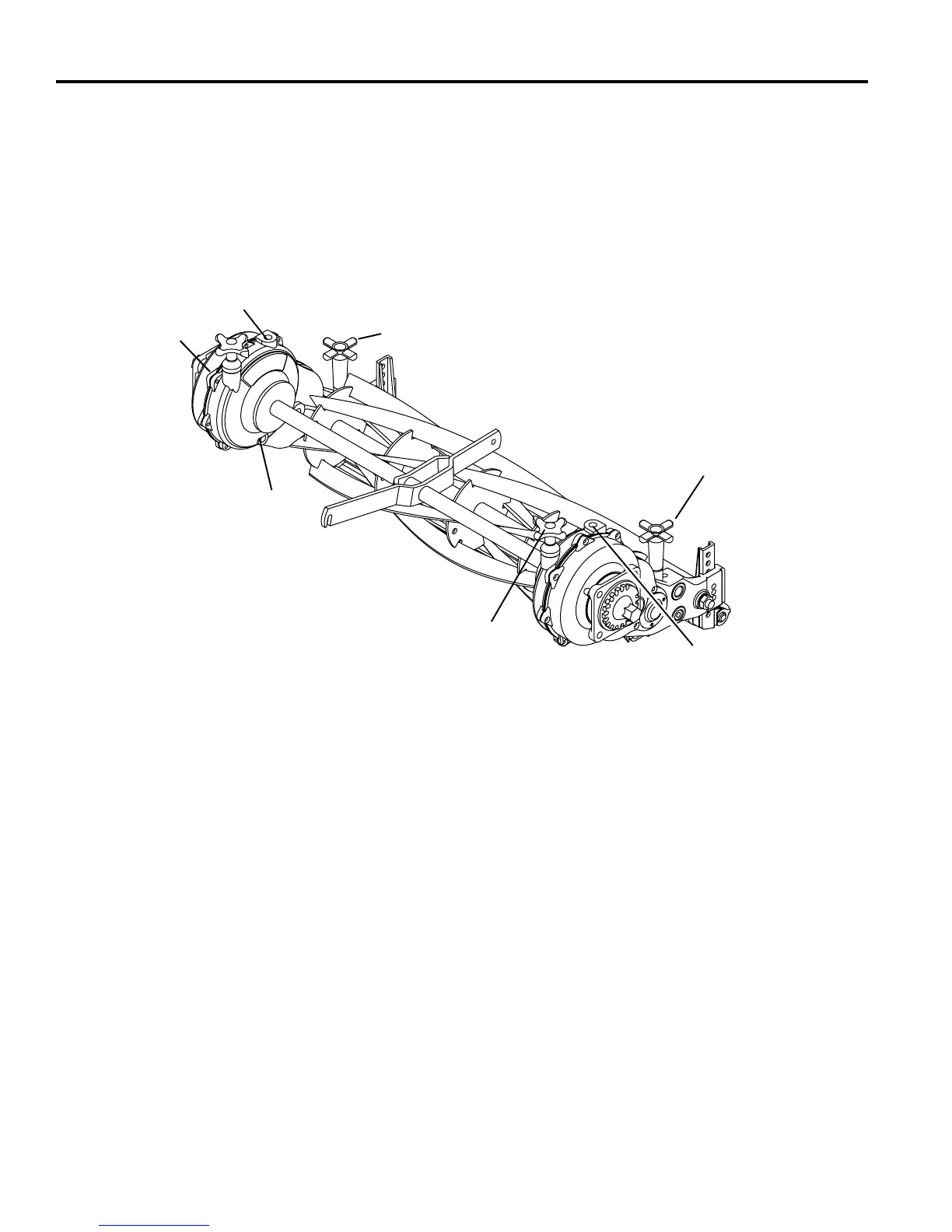

A Clutch Handles
B Filler Plug
C Level Plug
D Bedknife Adjusting Handle
A
A
B
B
C
D
D
