CNC:
Index Service Part #File Name
Description
Qty
1 A00-0013 TEKT-0009 5MM Bushing 5
2 A00-0014 TEKT-0092 Thick Bushing 3
3 A00-0019 STEP-BOLT1-4X1 Step Bolt, 1/4" x 1", MB 1
4 A00-0020 STEP-BOLT1-4X1-1-4 Step Bolt, 1/4" x 1 1/4", MB 3
5 A00-0021 FLANGE-NUT-1-4 Flange Nut, 1/4", YD 4
6 A00-0033 315-080 Rear Wiper Shaft Grommet 1
7 A00-0043 WWF-MOTOR WWF Wiper Motor, 1" Shaft 1
8 A00-0108 TEKT-ASM-037 WWF, Adjustable Radial Arm, 15" to 19" 1
9 A00-0320 TEKT-0159 12 3/4" Wiper Blade 1
10 Ja5-0005 JA9016-058 Rear Window Glass 1
11 Ja5-0019 JA9016-157- Rear Window Seal 1

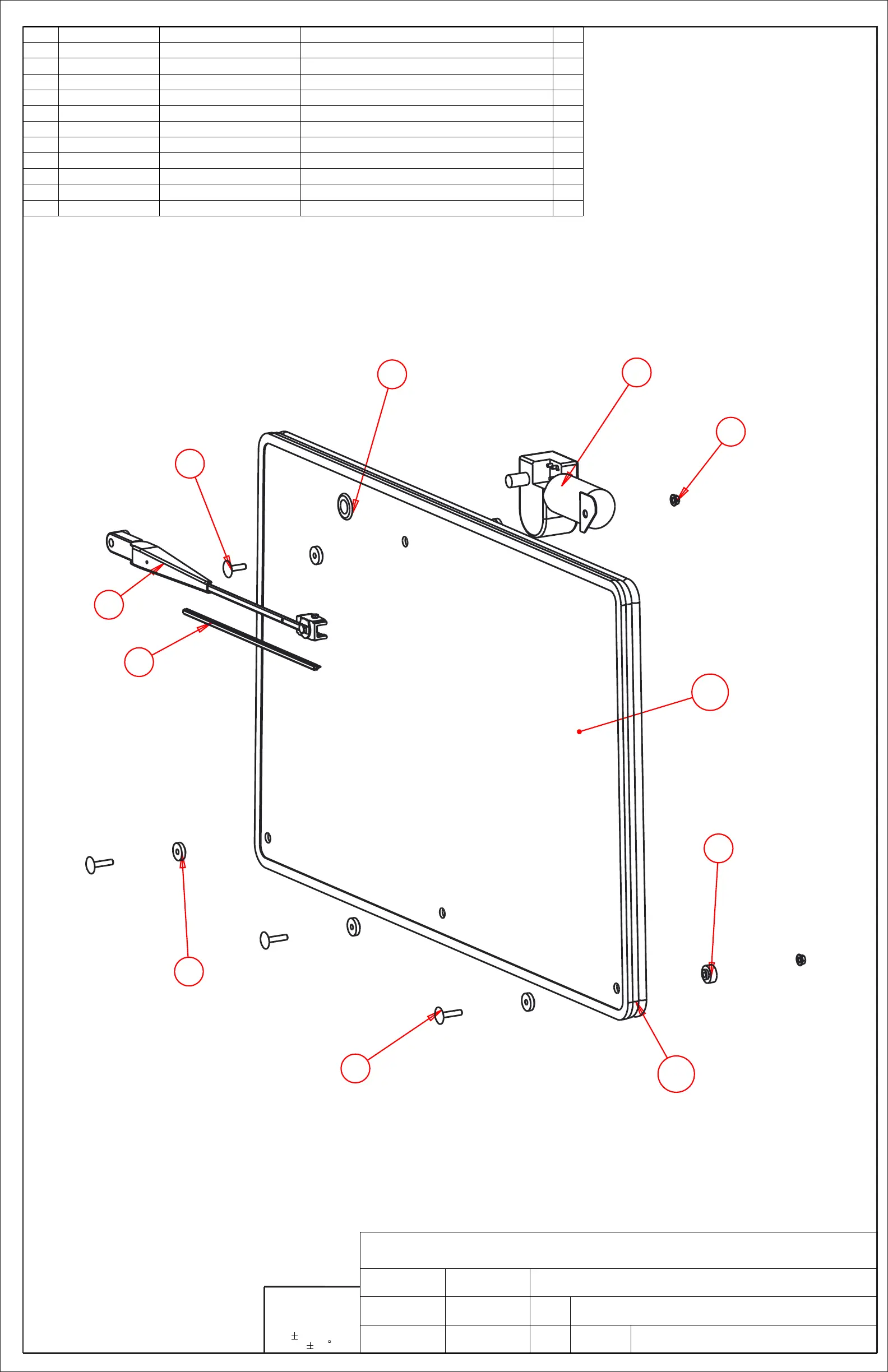

1 req Rear Window Assembly
Daryl Furkalo
2015-08-12 Imp.
JA9016-ASM-45_OP
B
SCALE 0.250
1
2
3
4
5
6
7
8
9
10
11
