Jacobsen JMP653F User Manual

en-28

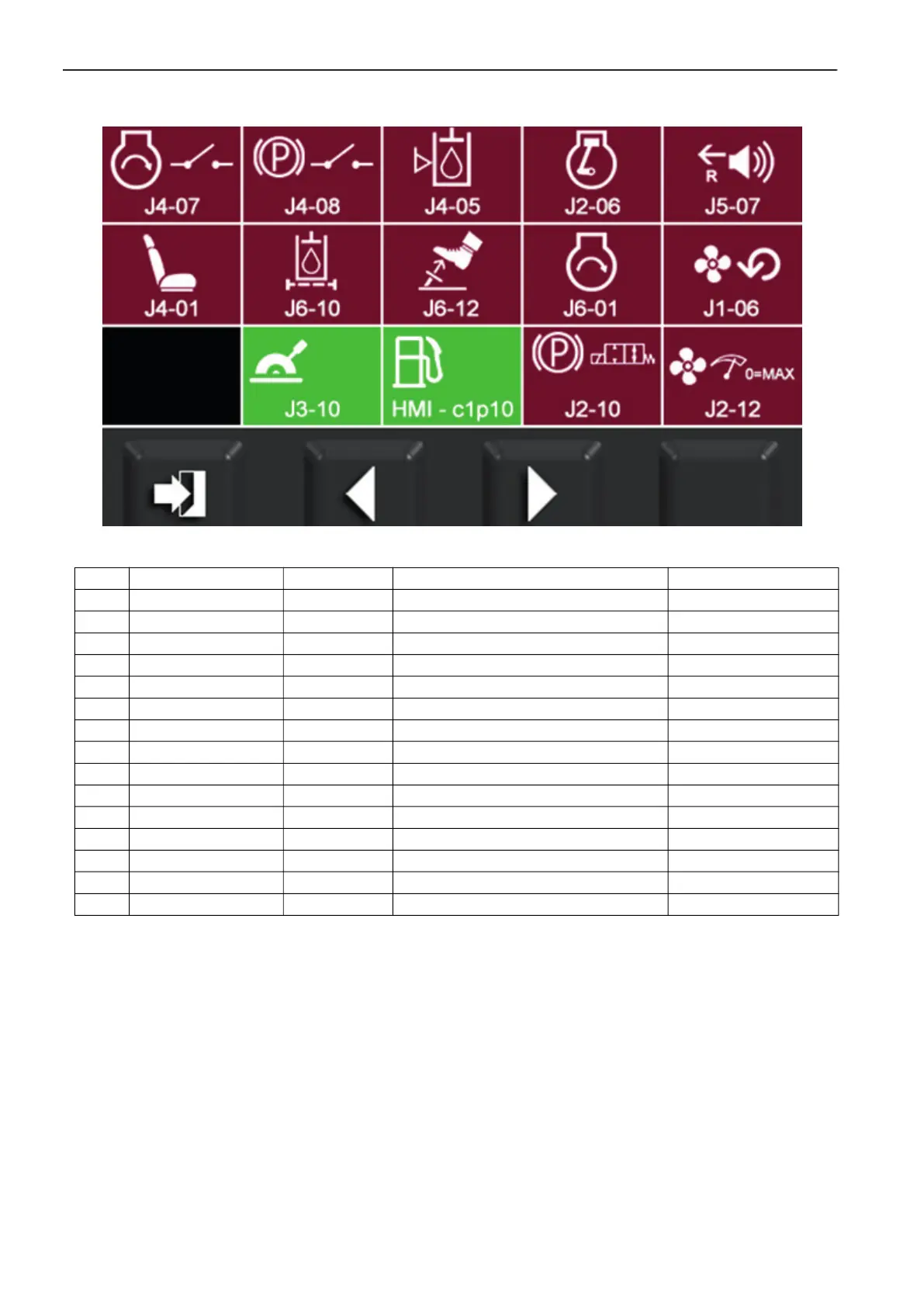

5 CONTROLS
General
Ref # Module Pin Number Function
1 Main Controller J4-07 Engine Ignition Key Input
2 Main Controller J4-08 Park Brake Switch Input
3 Main Controller J4-05 Hydraulic Oil Level Switch Input
4 Main Controller J2-06 Engine Run Interlock Output
5 Main Controller J5-07 Reverse Beeper Output
6 Main Controller J4-01 Seat Switch Input
7 Main Controller J6-10 Hydraulic Oil Filter Switch Input
8 Main Controller J6-12 Traction Pedal Neutral Switch Input
9 Main Controller J6-01 Engine Start Interlock Output
10 Main Controller J1-06 Cooling Fan Direction Output
11 - - -
12 Main Controller J3-10 Throttle Input
13 HMI c1p10 Fuel Level Sensor Input
14 Main Controller J2-10 Park Brake Solenoid Output
15 Main Controller J2-12 Cooling Fan Speed Output
