en-79
ADJUSTMENTS 7

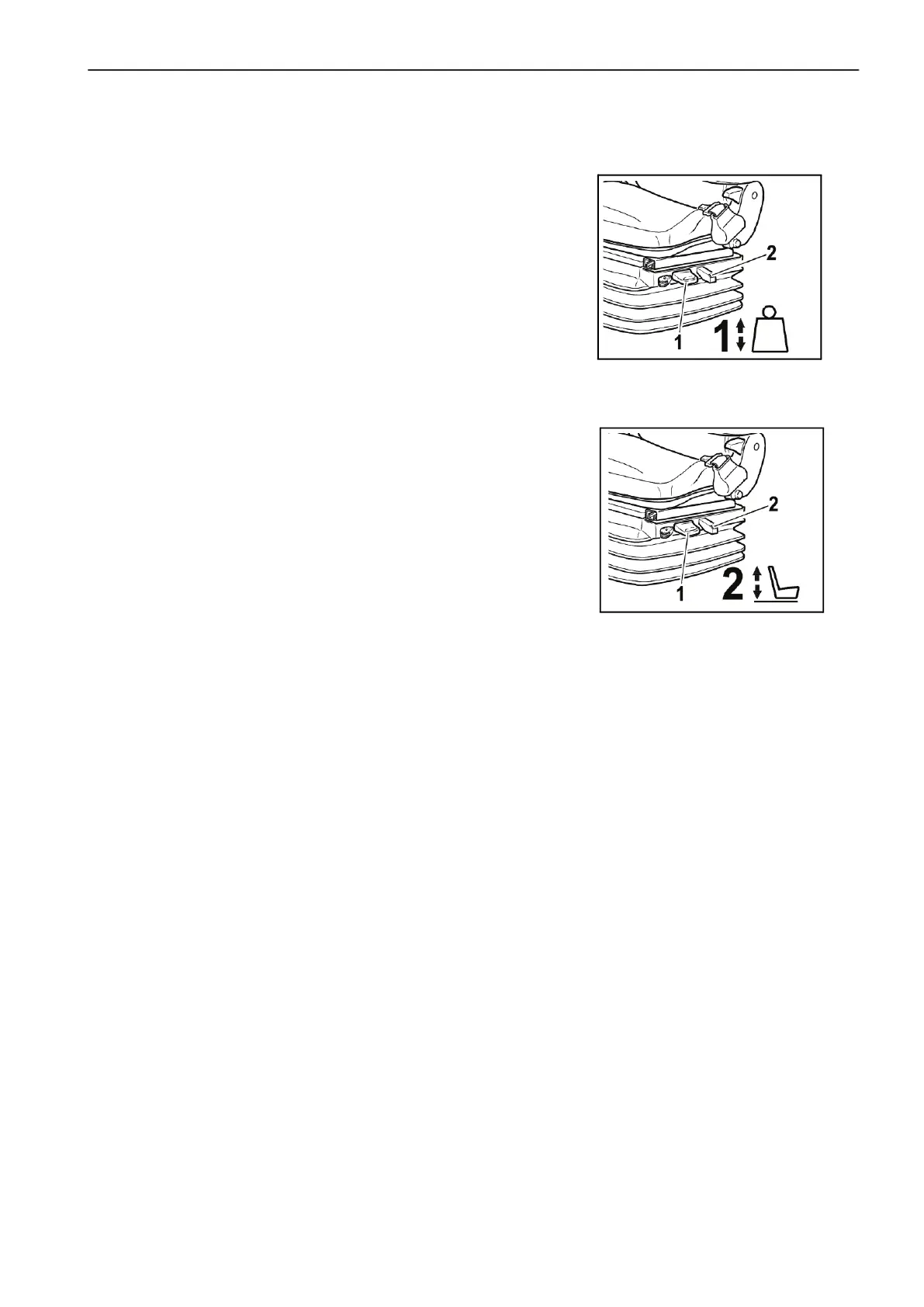

7.10 AIR SUSPENSION SEAT (GRAMMER MSG95 -721) ________________________
7.10.1 WEIGHT ADJUSTMENT _______________________________________________
The seat should be adjusted for the driver's weight with the driver sitting on
the seat. The adjustment is made by pulling out or pushing in the actuator
lever (1) until the green marking is visible in the weight-and-height indicator
(2).
• To prevent damage to yourself, the setting for the driver's weight
must be checked and adjusted as necessary before the vehicle is
driven.
7.10.2 HEIGHT ADJUSTMENT
The seat height can be altered by fully pulling out or pressing in the actuator
lever (1).
• The green marking in the weight-and-height indicator (2) should be
visible.
• In order to avoid damage, do not operate compressor for more than
1 minute.
