Jacobsen JMP653F User Manual

en-30
5 CONTROLS

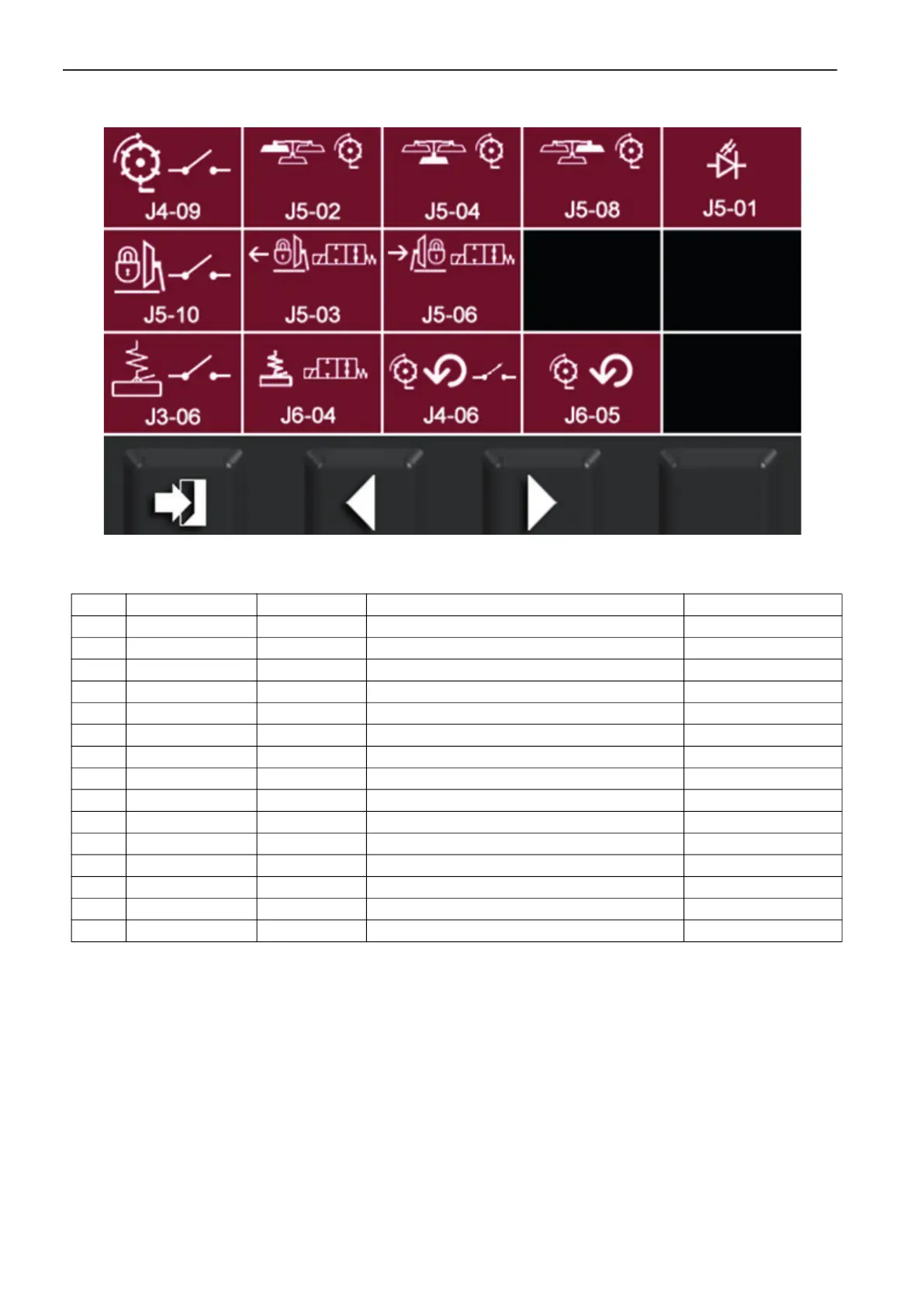

Cutters
Ref # Module Pin Number Function Note
1 Main Controller J4-09 Cutter Switch (PTO) Input
2 Main Controller J5-02 Left Hand Cut Solenoid Output
3 Main Controller J5-04 Centre Cut Solenoid Output
4 Main Controller J5-08 Right Hand Cut Solenoid Output
5 Main Controller J5-01 Centre Unit Position LED Output
6 Main Controller J5-10 Transport Lock Switch Input
7 Main Controller J5-03 Left Hand Transport Lock Solenoid Output
8 Main Controller J5-06 Right Hand Transport Lock Solenoid Output
9 - - -
10 - - -
11 Main Controller J3-06 Traction Boost Switch Input
12 Main Controller J6-04 Traction Boost Solenoid Output
13 Main Controller J4-06 Backlap Switch Input
14 Main Controller J6-05 Backlap Solenoid Output
15 - - -
