en-33
CONTROLS 5

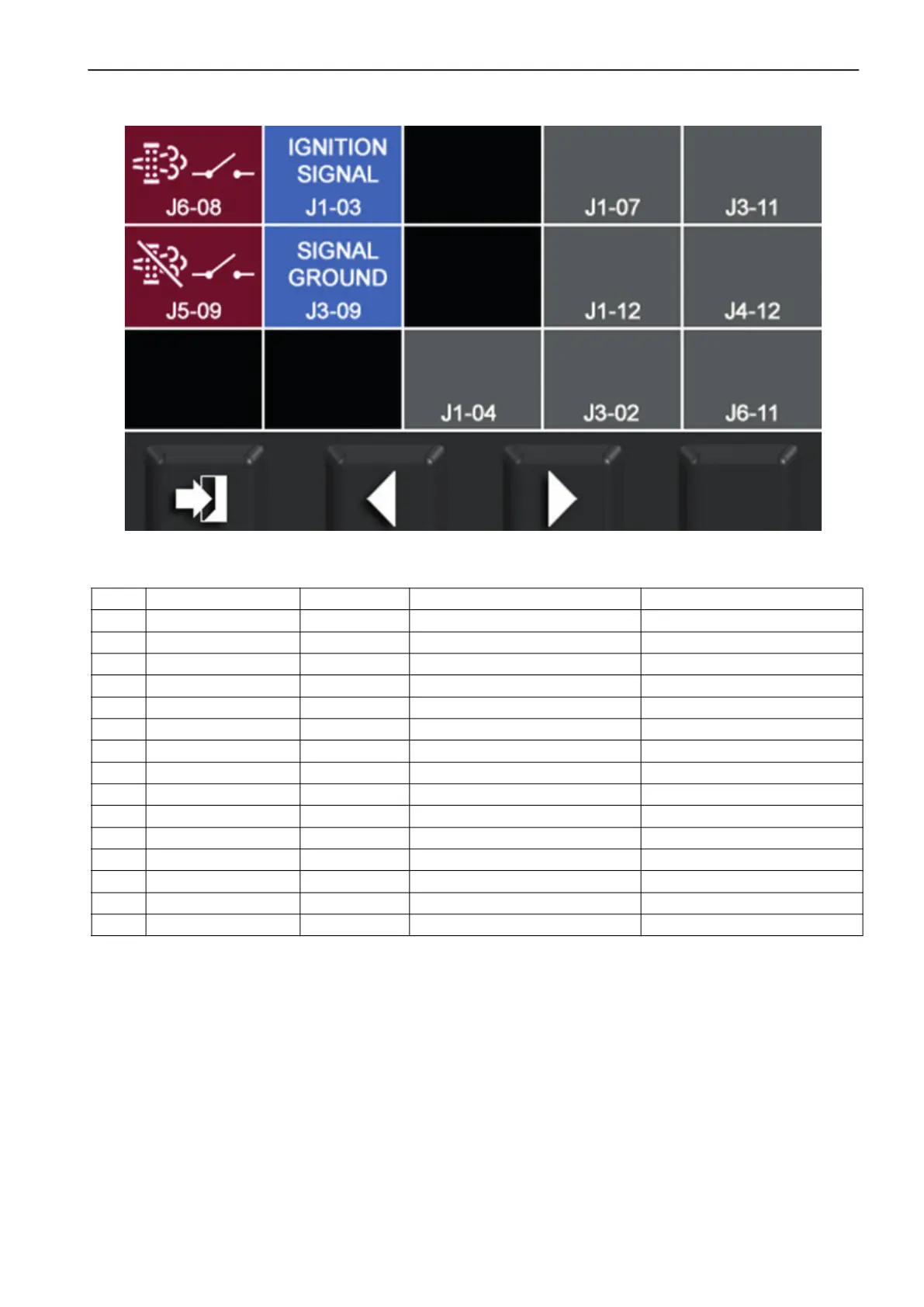

Miscellaneous Pins Continued
Ref # Module Pin Number Function Note
1 Main Controller J6-08 DPF Regen Start Switch Input
2 Main Controller J1-03 Ignition Signal
3 - - -
4 Main Controller J1-07 Not Used
5 Main Controller J3-11 Not Used
6 Main Controller J5-09 DPF Regen Inhibit Switch Input
7 Main Controller J3-09 Signal Ground
8 - - -
9 Main Controller J1-12 Not Used
10 Main Controller J4-12 Not Used
11 - - -
12 - - -
13 Main Controller J1-04 Not Used
14 Main Controller J3-02 Not Used
15 Main Controller J6-11 Not Used
To Next Page
