30
Tri-King 1900D
with GreensCare
Tri-King 1900D
1
2
3
4
5 / 6
7 / 8
9
29
10
11
12
13
24
14
15
27
16
17
18
19
22
23
20
21
28
26
25
105
dB
L
WA
11
CHARLOTTE, NC
YEAR OF
PRODUCTION:
MADE IN U.S.A.
®
A Textron Company
Manufactured under one or more
of the following U.S. Patents:
5309699
5941057
6698171
5896734
6412258
To Install the battery
1. Install the battery with terminals toward rear.
2. Secure battery to support.
3. Connect positive (+) (red) FIRST.
4. Connect negative (–) (black) LAST.
To use jumper cables:
1. Stop the engine on vehicle with good
battery.
2. Connect RED cable to positive (+) terminal
on good battery and positive (+) terminal
on discharged battery.
3. Connect the BLACK cable from negative (–)
terminal on good battery to frame of
vechile with discharged battery.
4. Start the engine.
!
CAUTION
367160
DANGER
!
To avoid injury:
Always connect the “ground” (black)
cable last and remove it first
whenever performing any battery
maintenance.
Do not contact battery terminals
or tools used to loosen the
terminals with metal parts.
Avoid contact with battery acid.
Keeps sparks and flames away from
the battery.
367159
IMPORTANT
This machine uses GreensCare 68,
a biodegradable hydraulic fluid.
(Order 5003103 for 5 gal. pail).
2812032
IMPORTANT
Do not overfill or spill oil.
Always lower lift arms to check or
add oil.
361615
To Start
OPERATION
READ MANUAL BEFORE OPERATING
MANUALS AVAILABLE FROM JACOBSEN, CHARLOTTE, NC.
To Drive/Transport To Backlap
To Stop
Parking Brake
1. Par king brak e. . . . . On
2. Hydro pedal. . .Neutral
3. Reel switch. . . . . . . Off
4. Depress glow plug
switch for 3 to 5
seconds.
5. Start engine.
1. Remove foot from
hydro pedal.
2. Engage parking brake.
3. Turn ignition off.
4. Remove key.
Important: When operating on inclines maintain engine speed and reduce forward
speed. Warranty is void if tractor is used for towing. Do not use start assist fluids.
Use of such fluids in the air intake system may be potentially explosive or
cause a ‘runaway’ engine condition that would result in engine damage.
1. Parking brake. . . . . Off
2. Slowly depress
hydro pedal.
Vehicle weight wet: 1720 lbs. - 780 kg.
Vehicle horsepower: 19 hp. - 14.2 kw. at 3400 r.p.m.
1. Parking brake. . . .Off
2. Reel switch. . . . . . On
3. Slowly depress hydro pedal.
4. Depress top pf mow pedal to lower
and engage reels. Lift mow pedal
to raise and stop reels.
1. Engage parking brake.
2. Turn backlap lockout key to backlap position.
3. Turn all 3 backlapping nuts to neutral position.
4. Start engine. Set throttle to minimum idle speed.
5. Engage reels. Turn backlap nut on one reel to
backlap at desired speed.
6. With extreme caution apply lapping compound
with a long handled brush.
7. Turn backlapping nut to neutral position
after backlapping is complete.
8. Repeat above steps on remaining reels.
3003590
ADVERTENCIA
1. Leer el manual del operador. No permitir que
personas no capacitadas para ello usen la maquina.
2. Mantener los protectores en su lugar y la tornillos
debidamente fijados.
3. Antes de limpiar, ajustar o reparar este equipo,
apagar todas los mandos, aplicar el freno de
estacionamiento y apagar el motor.
4. Mantener las manos, los pies y la ropa alejados de
las piezas en movimiento.
5. No conducir como pasajero ni llevar pasajeros en
maquinas sin asiento para ello.
6. Mantener a las demas personas alejadas durante
el functionamiento de la maquina.
7. Si no sabe leer ingles, solicitarle a otra persona que
le lea y explique el contenido de las etiquetas y del
manual de la maquina.
340623
Mix equal parts of clean water and a premium quality
ethylene glycol based anti-freeze to maintain the boil
over, rust and corrosion protection.
Drain and discard coolant yearly. Read manual for
additional instructions.
THIS RADIATOR CONTAINS
ANTI-FREEZE
PROTECTED TO -26°F (-32°C)
363995
WARNING
!
To prevent burns, do not touch
muffler or muffler shield.
Temperatures may exceed 150° F (66° C)
!
WARNING
Radiator is under pressure. Remove cap slowly to
avoid personal injury.
365956
B
I
O
D
E
G
R
A
D
A
B
L
E
F
L
U
I
D
1
4
3004207
3
2
4141266
2811597
TRI-KING

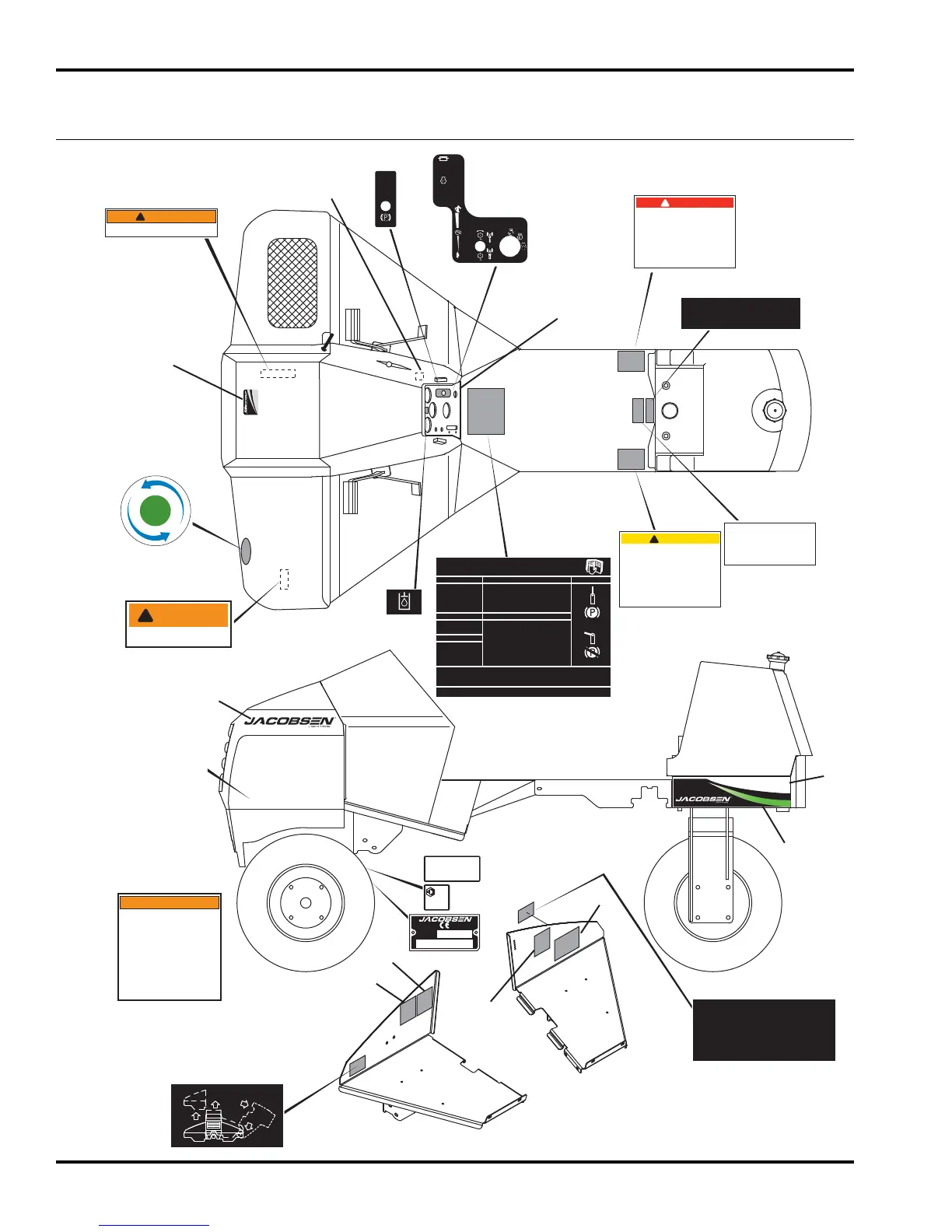

1.1 Decals
Serial No. All
