Jacobsen TURFCAT-623D User Manual

37
600 Series
Turfcat
Tractors
ITEM PART NO. DESCRIPTION QTY
ITEM PART NO. DESCRIPTION QTY

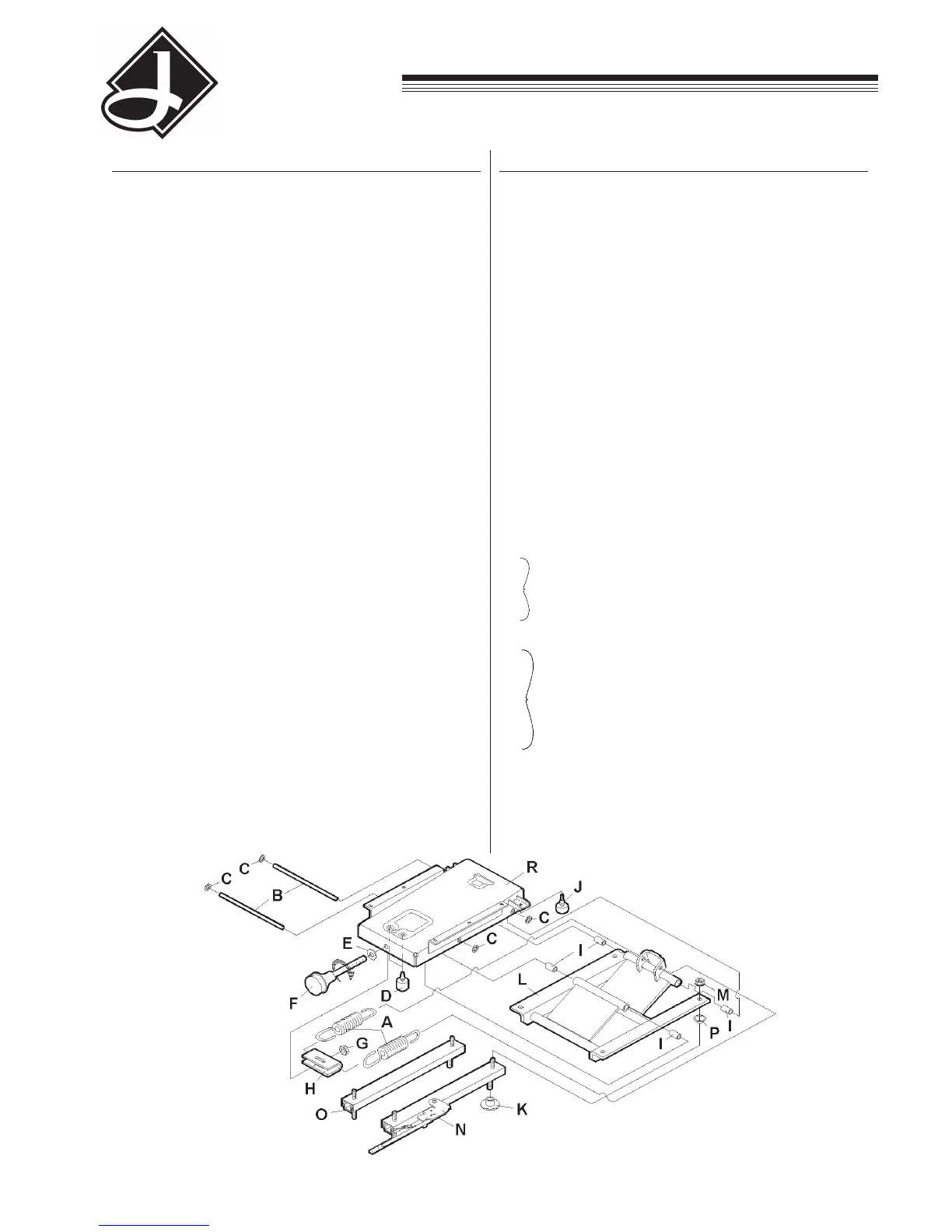

2722080-12
SEAT & PLATFORM ASSEMBLY
FIGURE 10
10-1 198066 ARM REST ASSY-RH 1
10-2 198057 SEAT 1
SEAT KITS AVAILABLE:
(970039 INCLUDES ITEMS: 2,6-17, & 22)
(970080 INCLUDES ITEMS: 1-5,7,11,12, 22 & 48)
198057-01 CUSHN, EDGNG, HWR A/R
10-3 64139-16 BLT-WLF 5/16-18 X 5/8 10
10-4 198059 ARM REST ASSY-LH 1
10-5 48228A CABLE CLIP 1
10-6 198062 SLIDE RAIL-SLAVE 1
10-7 64152-23 1/4-20X3/8 LG SP SCREW 2
10-8 198063 SLIDE RAIL-ADJUSTER 1
10-9 64018-27 BOLT-CARAGE 1/2-13X1-1/2 1
10-10 2198096 SCRW-CAP W.375 WASH 4
10-11 158136 WIRE-SEAT SWITCH 1
10-12 64141-6 NUT-WLF 5/16-18 4
10-13 2142376.7 ADAPTER-SEAT 1
10-14 64123-73 BLT-HEX 1/2-13X1 2
10-15 64163-19 WASHER 4
10-16 142095.7 SPRING-SEAT 1
10-17 64151-7 1/2-13 HEX LOCK NUT 3
10-18 64251-003 WASHER-M8 12
10-19 64237-05 LOCKNUT-NYLON M8-1.25 8
10-20 2721881 S SEAT PLATE W/LABS 1
10-21 64151-8 NUT-HEX 1/4-20 EL 2
10-22 158135-01 SWITCH-SEAT NO 1
10-23 2306144 S DOCU TUBE W/LAB 1
10-24 38061A SPINDLE SHIELD 2
10-25 64197-002 BOLT TR 1/4-20 X 3/4 2
10-26 64123-89 BLT-HEX 1/4-20X3/4 2
10-27 38542 CLAMP-DOCU TUBE 2
10-28 2208058.7 HINGE-SEAT PLATE 2
10-29 A1103051 BLT-MET. M8-1.25X20 2
10-30 64151-18 3/8-16 CL HEX NUT 1
10-31 64025-15 NUT HEX #10-24 KEPS 1
10-32 22372 B & S CABLE CLIP 1
10-33 148057-01 CABLE-THROTTLE 1
10-34 64152-49 10-24 X 3/4 MACH SCRW 1
10-35 64209-01 CONICAL SPRING WASH 5
10-36 2192254.7 BRKT-THROTTLE 1
10-37 64166-17 BLT-SHLDR 3/8-16 X 1.12 1
10-38 2198109 KNOB-THROTTLE 1
10-39 2721527 LEVER-THROTTLE 1
10-40 48228-1A CABLE-CLIP 2
10-41 2208075 LATCH-ADJ LEVER 2
10-42 64205-007 BLT-MET. M10-1.5X20 2
10-43 64237-03 LOCKNUT-NYLON M10-1.5 2
10-44 64166-03 SHLDR BLT .281X5/16-18 2
10-45 64163-31 WASHER 25/64X1X12 GA 2
10-46 2202118.7 SUPPORT-SEAT 2
10-47 64229-02 LOCKNUT-NYLON 5/16-18 2
10-48 64205-001 BLT-MET. M8-1.25X20 6
10-49 198058 SUSPENSION W/ADJUST 1
(INCLUDES ITEMS A THRU R)
(SERVICE SUSPENSION W/148394, 148395,
148396, 148397)
B
C 148394 LOWER SEAT WELDMENT
I (INCLUDES ITEMS B,C,I, & L)
L
B
C
D 148395 UPPER SEAT WELDMENT
J (INCLUDES ITEMSB,C,D,J&
R)
R
A THRU K 148396 DELUX SEAT/SPRING SHAFT
(INCLUDES ITEMS A THRU K)
M THRU P 148397 SEAT ADJUSTOR
(INCLUDES ITEMS M THRU P)
