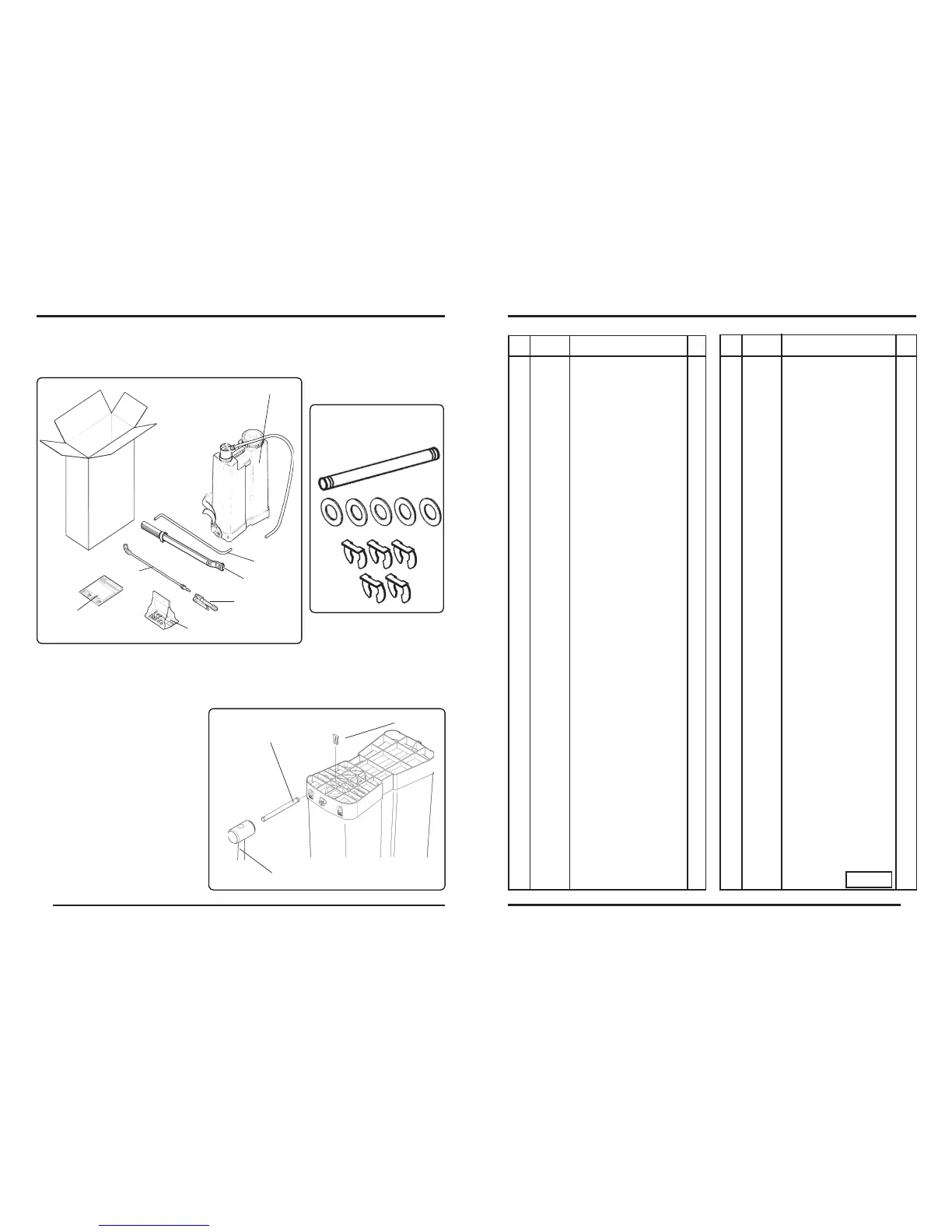

Jacto HD-400 - Assembly Procedures; Installing the Shaft

15
02
Tank
Lance
Accessories plastic bag
Trigger valve
Contents of the
plastic bag
ATTENTION:Be careful when taking the sprayer out of the carton as the lever is shipped
loose and can cause damage.
4- ASSEMBLY PROCEDURES
Remove from the sprayer carton the following parts:
5- INSTALLING THE SHAFT
- Insert the shaft (1) in the free ope-
ning on the tank base (on the same
side of the chamber).
- Tap the shaft with a plastic hammer
as shown, until it is possible to t the
shaft lock (2).
- Lock the shaft with the shaft lock (2).
Shaft lock
(2)
Lever
Shaft (1)
Manual
Rod
Plastic
hammer
Description
Item
Description
Item
Part no
Qty
Qty
Part no
LLM-421
00 - HD400 01
01 1198800 Washers and locked rings
set (repair) 01
02 907113 Gasket holder and gasket 01
03 325787 Blue adjustable cone
nozzle 01
04 188250 Chamber (0.23 gallons) 01
05 214585 Piston cup 01
06 560573 Diaphragm 01
07 1173630 Sphere valve 01
08 635813 Chamber assembly
(includes items 4, 5, 7 and
38) 01
09 920470 Pin lock 01
10 942193 Screw cap S-20 x 1.5 01
11 1194579 Handgrip with lock 01
12 1198602 Rod 01
13 838029 Strap assembly (includes
14 to 17) 01
14 1184172 Shouder strap and pad 01
15 229971 Strap and handle 02
16 635672 Buckle 02
17 635664 Strap catch 01
18 214619 Agitator 01
19 654939 Cylinder (includes items
47 and 21 to 25) 01
20 838011 Cylinder valve assembly
(repair) 47, 22 to 25) 01
21 635599 Cylinder body 01
22 715474 Ball 01
23 570945 Ball seat 01
24 336412 Compression spring
12 x 28 01
25 635615 Valve base 01
26 661363 Lever 01
27 293324 Lever shaft 01
28 654921 Lid with diaphragm 01
29 942920 Fill basket strainer 01
30 586321 Tank 01
31 277350 Shaft lock 01
32 635854 Spray lance 01
33 909192 Trigger valve handle 01
34 909283 Trigger valve body 01
35 105247 Trigger 01
36 908889 Trigger valve assembly 01
37 915751 Extention 601 01
38 048116 Dip tube with hose 01
39 071308 Dip tube assembly 01
40 105239 Trigger valve needle
assembly 01
41 996058 Trigger valve cap with
packing 01
42 909309 Cone packing 02
43 915744 Screw cap 02
44 1189539 Stainless steel tube 01
45 635276 Elbow witth cone packing 01
46 592139 Nozzle lter (40 mesh) 01
47 635607 Piston cup fastener 01
