Jacto HD-400 - Parts List; Installation and Assembly Steps; Installing Lever and Rod; Attaching Lance to Trigger Valve

03
14
6- INSTALLING THE LEVER ON THE SHAFT AND THE ROD ON THE CHAMBER TOP
Rod
Lever
Shaft
- Lightly grease the orice on the chamber
top.
- Fit a at washer on the shaft and rod.
- For easy assembly, install the lever on
the shaft and the rod on the chamber
top at the same time.
- Install the other at washers on the
shaft and rod and lock with the
locked ring.
Locked ring
Flat washers
Locked ring
Chamber
Flat washers
7- ATTACHING THE LANCE TO THE TRIGGER VALVE
- Push the lance into the trigger valve and secure it with the screw cap.
Lance
Trigger valve
Elbow
ATTENTION:
Do not overtighten the screw cap.
Screw cap
8- ATTACHING THE HOSE TO THE TRIGGER VALVE
- Unscrew the trigger valve handle.
- Remove the lock.
- Pass the hose through the randle and attach it
to the trigger valve as shown.
- Screw the handle on the trigger
valve.
ATTENTION: Do not overtighten the handle.
Lock
Hose
Trigger
valve
Handle
ilustrative
gure

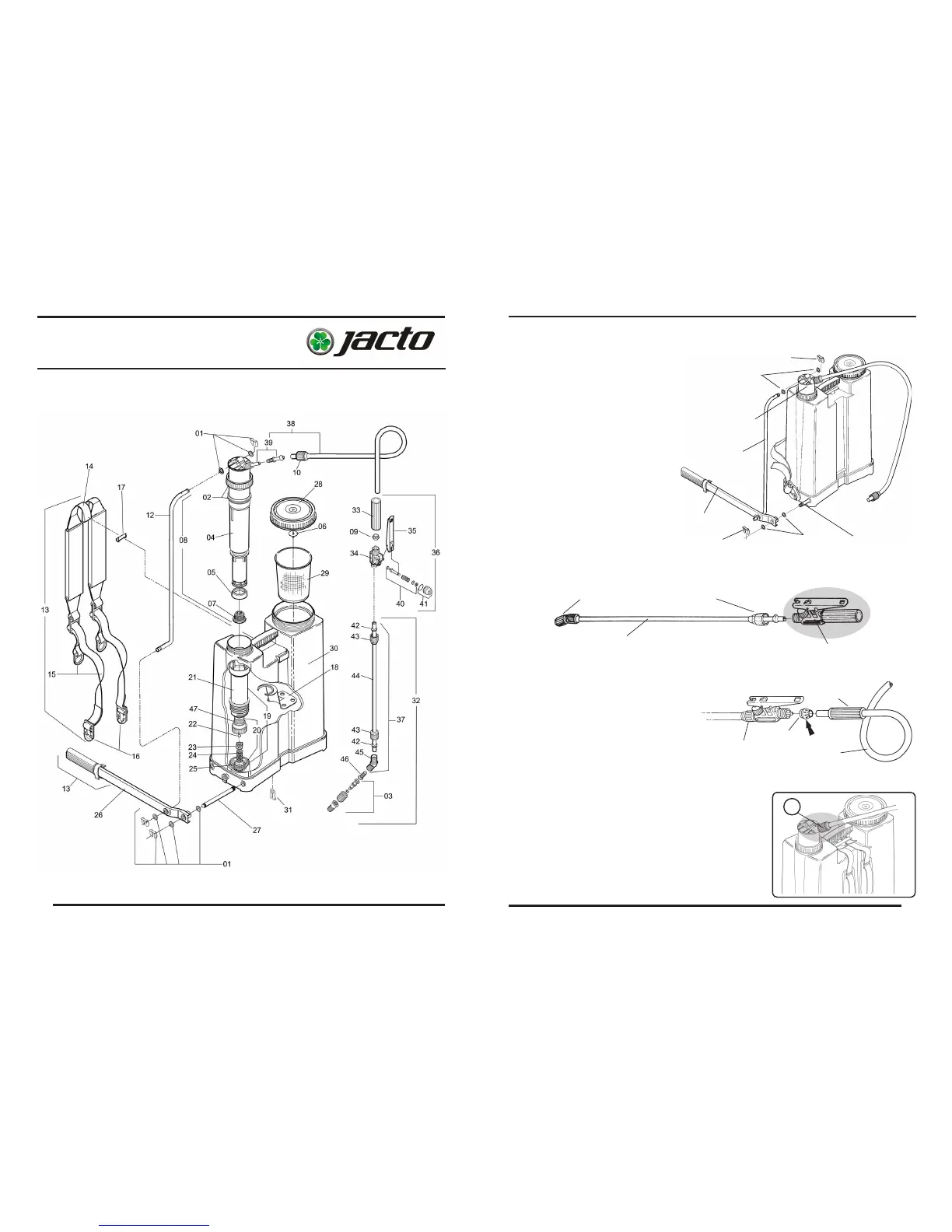

PARTS LIST
9- TIGHTENING THE FASTENING NUT.
- Before using the equipment, tighten the fastening nut
(A).
Important: This operation must be carried out by hand.
Never use any type of tool.
A
