5. Controls
5.1. Throttle lever

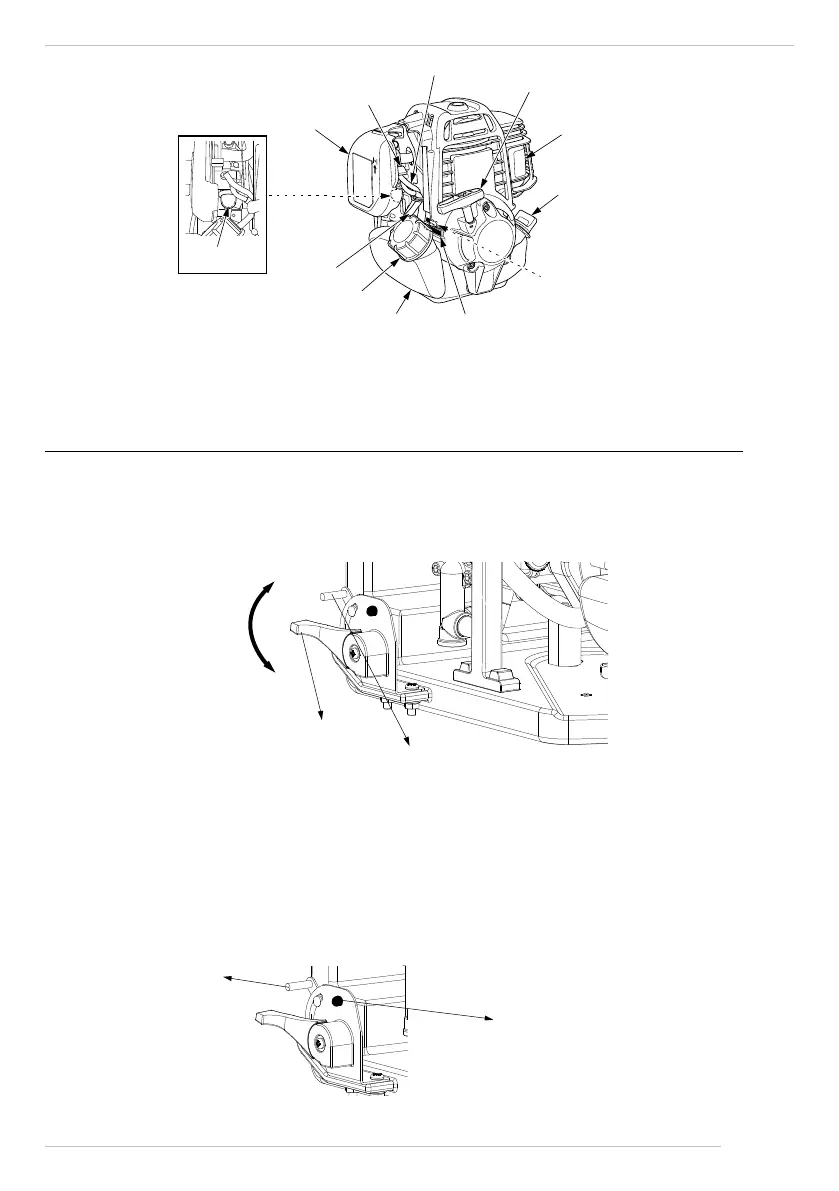

The throttle lever, located on the side end of the sprayer, controls the engine speed from SLOW to FAST.
Fuel return tube
Choke lever
Starter grip
Air lter
Muer
Engine type
Engine serial
number
Fuel tank
Priming
pump
Tampa do tanque de
combustível
Fuel tank
Oil ller cap
Throttle lever
Positioner
Positioner
Engine stop
button
FAST
SLOW
NOTE: Excessive acceleration impairs the pump performance and aects negatively both the pump and the engine. The positioner
controls the throttle lever. Do not change the position of the positioner to force an increase in engine power and speed.
5.2. Engine stop button
When pushed, it stops the engine.
