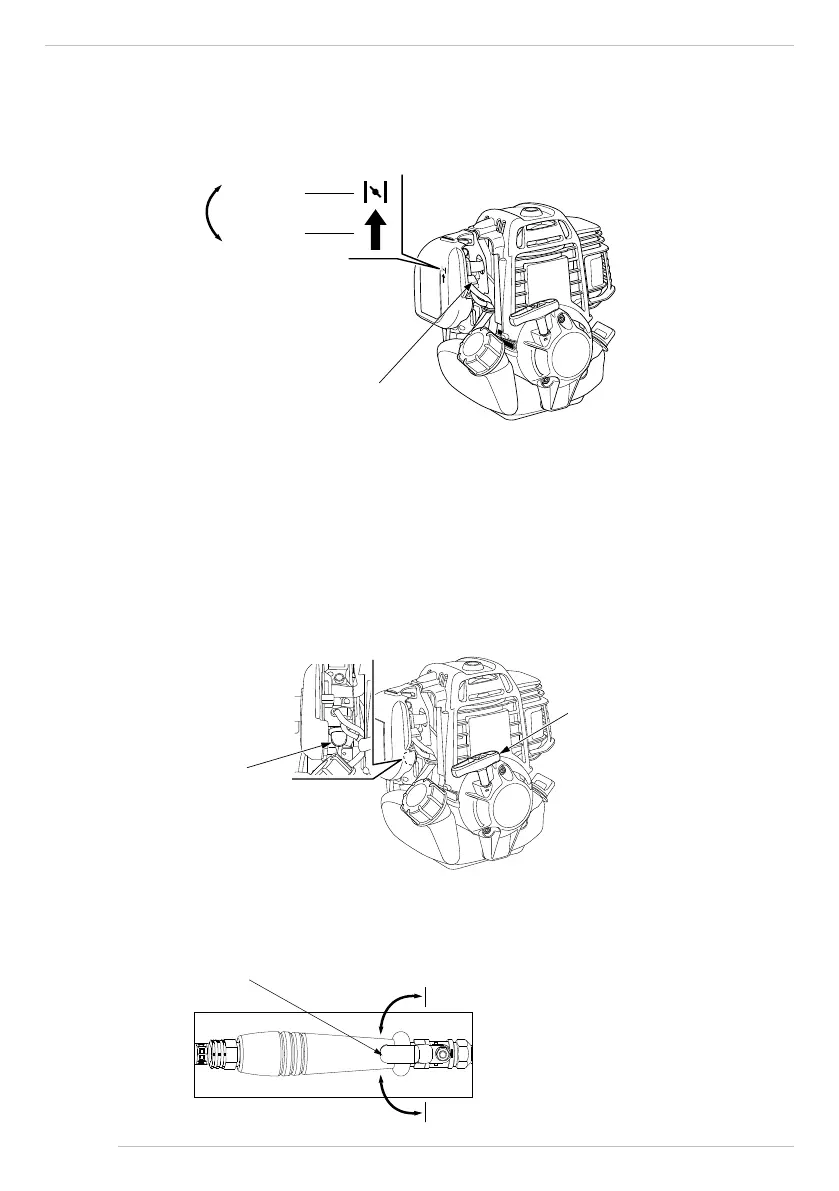

5.3. Choke lever
The choke lever opens and closes the carburetor choke valve. The CLOSED position enriches the fuel mixture to start a cold engine.
The OPEN position gives the correct fuel mixture to operate the sprayer after starting it and to start a warm engine.
CLOSED
OPEN
Choke lever
5.4. Starter grip
When pulled, the starter grip starts the engine.
Note: Avoid jerking the starter grip. Always pull it straight out rmly.
5.5. Priming pump
When pushed, the priming pump circulates fuel from the fuel tank to the carburetor. Whenever the engine is started, this procedure
must be followed in case air is noticed inside the priming pump.
Priming pump
Starter grip
5.6. Shutoff valve
Use the shuto valve to open and close the spray lance trigger valve.
CLOSED
CLOSED
OPEN
Shuto valve
