Jacuzzi J-200 Series Owner's Manual

J-200
Figure D
(North American 60 Hz
120/240 VAC Convertible Models)
Green
TB3
TB1
A B C D
OZONE
P1 1SPD
UV
A/V
30A
F2 10A 250VAC
F3 0.125A 240V
30A
FAN
STEP LIGHT
(OPTIONAL)
J37
J44
J73
J72
J74
J35
J59
J51
J33
J36 J46
J41 J47
J49
J38
J53
TB3

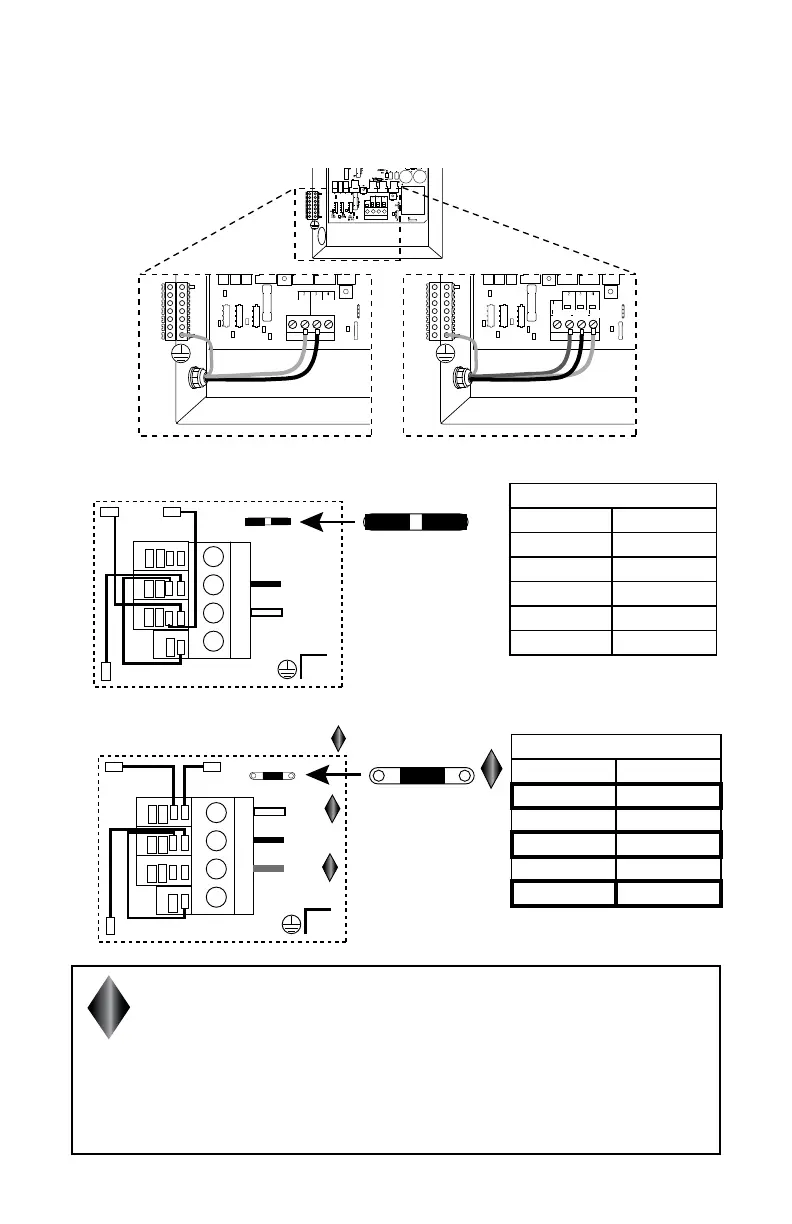

120 VAC 3-Wire connection 60 Hz
240 VAC 4-Wire connection 60 Hz
A B C D
J37
J44
J73
J72
J74
J35
J33
J36 J46
J41 J47
J49
J38
J53
Wht
Black
Green
TB3
OR
TB1
A B C D
J37
J44
J73
J72
J74
J35
J33
J36 J46
J41 J47
J49
J22
240V
120V120V
J38
J53
Wht
Blk
Red
J22
240V
120V120V
CAUTION: (FOR A 4-WIRE 240 VAC HEATER
OPERATION.) The jumper at location J22 must be changed
from a 120V to a 240V conguration. Make sure to connect
the wires as shown at TB1, for a 240V connection, before
applying power. Jumper wires MUST be changed. Failure to
follow these steps will result in damage to the circuit board
and/or related components and void the manufactures
warranty.
TB1
TB1
GRN
BLK
WHT
120V 3-WIRE CONNECTION
240V 4-WIRE CONNECTION
J51
J33
1
2
3
4
J41
J47
J53 J38
J46
J36
J37
J59
GRN
WHT
BLK
RED
J51
J37
J59
A
B
C
D
240V
120V 120V
J22
240V
120V 120V
J22
J33
1
2
3
4
J41
J47
J53 J38
J46
J36
A
B
C
D
J22
120V 120V
240V
J22
120V 120V
240V
Jumper Wires
FROM TO
J37 J36
J51 J46
J59 J41
J33 J47
J22 2 jumpers
Jumper Wires
FROM TO
J37 J38
J51 J46
J59 J53
J33 J47
J22 1 jumper
