Jacuzzi J-385 User Manual

57
J-300
16.2 North American J-315 and J-325 Convertible Power Models
(For a 3-wire 120V 60 Hz connection)

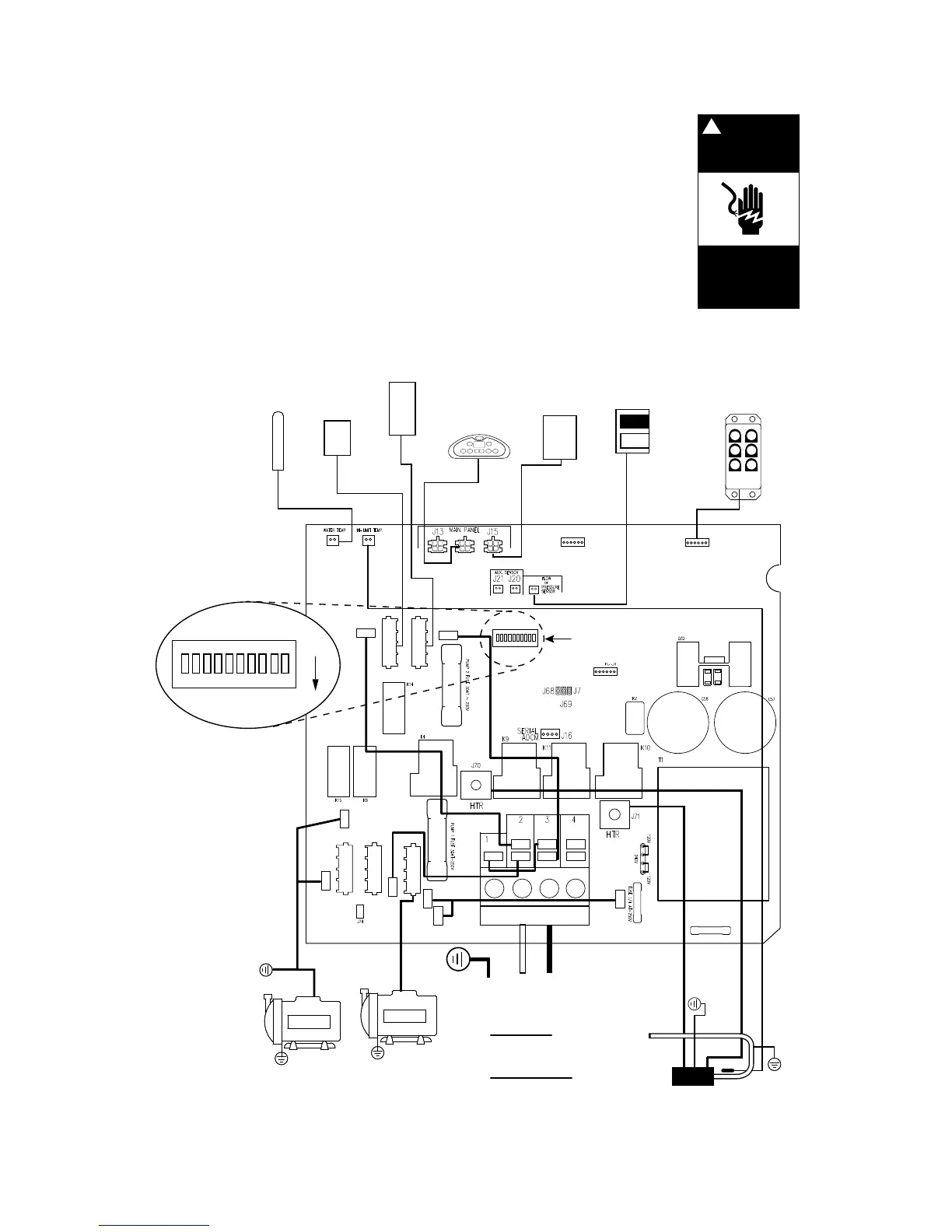

This wiring diagram is used for all North American
120V 60 Hz convertible power models.
Note: Refer to Section 16.3 for a 4-wire 240V connection.
DANGER
Turn power off
before servicing. This
task should only be
performed by a quali-
fied technician.
!
RISK OF SHOCK OR
ELECTROCUTION!
CLEARRAY
STEREO POWER
SUPPLY (OPTIONAL)
PUMP 1
LIGHTING
EXPANSION
A B C D
CIRC PUMP
OZONE
P1 2SPD
UV
A/V
5AT~250V
WI-FI
(OPTIONAL)
CONTROL
PANEL
120 VAC, 12A
3-WIRE CONNECTION
60HZ 1-PHASE SERVICE
240 VAC, 24A/32A
4-WIRE CONNECTION
60HZ 1-PHASE SERVICE
WHT BLK
G-GRN
CIRC PUMP
STEP LIGHT
(OPTIONAL)
WATER
SENSOR
FLOW
SENSOR
L-BLK
N-WHT
G-GRN
WHT BLK
1.0KW
G-GRN
G-GRN
See Section 17.0
for Dip Switch
Settings
TB1
30A (PMP 1)
30A (PMP 2)
J33 J36 J53
J41
J46
J47
J51
J59
J38
J44
J49
J22
J23
J9
J24
J14
J18
J17
F4
J27
J34J29
F6
J56 J57
S1
ZONE 1ZONE 2
F2
F3
J35
J37
J72
J73
4A
5A
1 2 3 4 5 6 7 8 9 10
S1
ON
1 2 3 4 5 6 7 8 9 10

Jacuzzi J-385 Specifications

General

Seating Capacity	6-7 Adults
Pumps	2
Circulation Pump	Yes
Primary Pump	2.5 HP
Secondary Pump	2.5 HP continuous duty, 4.8 HP breakdown torque
Electrical Requirements	240V
