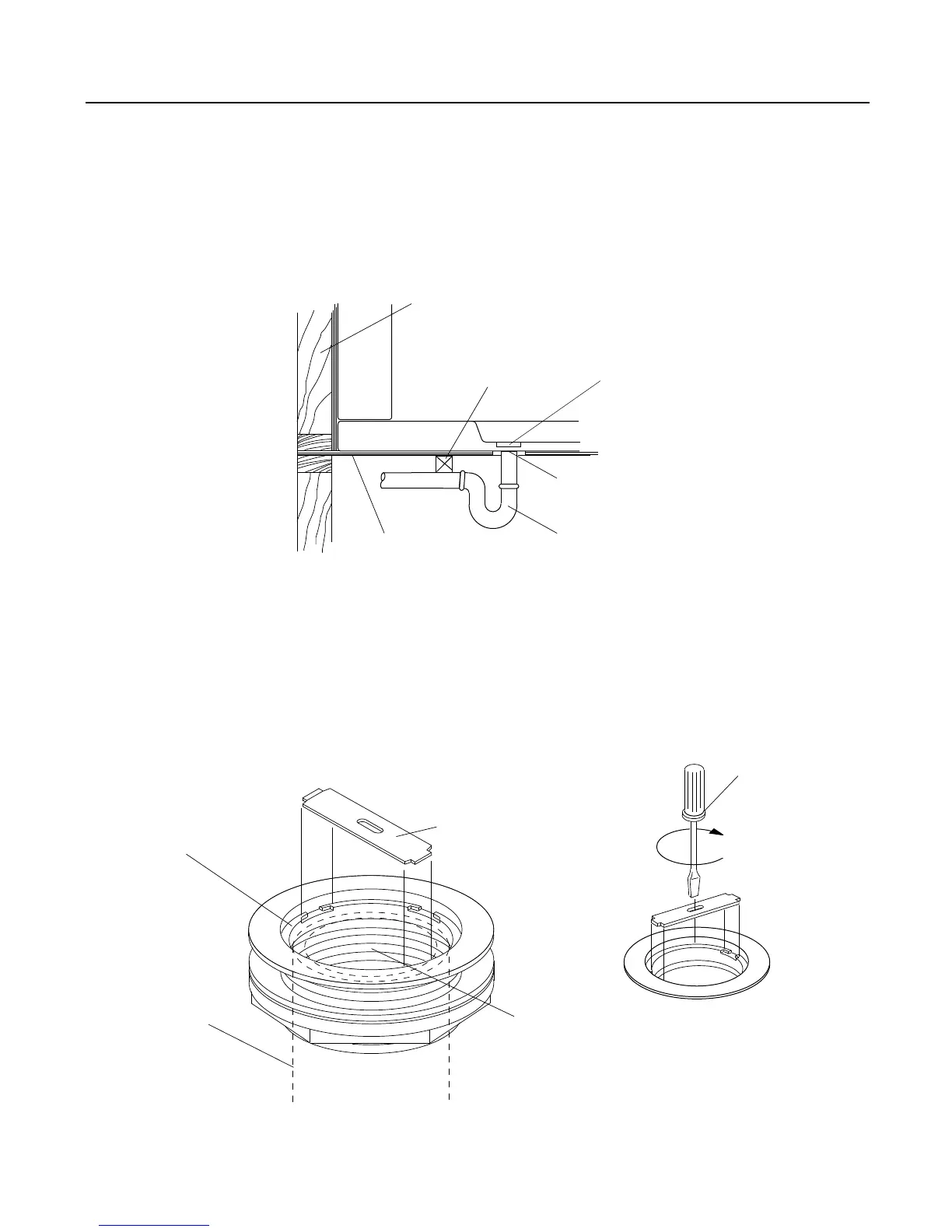

Broken Line
Represents
Drain Stub
Assembly Tool
Locking
Ring
Rubber
Compression
Sleeve
Screwdriver
Tighten
Locking Ring
Clockwise
Wall
Drain
Compression
Fitting
Temporary
Wood Block
Drain Assembly
Floor
Drain stubout flush
with, or beneath floor
surface
J-Dream Owner’s Manual
Drain Fitting
Remove the block and pull the drain assembly up to insert the stub into the drain. The drain fitting is a non-
caulk type (compression fitting) drain. Make certain that the locking ring is loose to allow the drain stub to insert easily
inside the rubber compression sleeve. If necessary, lubricate the sleeve with a mild soap solution. The drain stub
must extend well into the rubber sleeve before the locking ring is tightened. Use a screwdriver and the assembly tool
provided to tighten the locking ring.
The drain fitting is provided with the unit. Leave enough flexibility in the waste line to allow the end of the stubout
to be blocked temporarily in a position flush with or below the floor surface. This will allow you to slide the shower unit
across the floor into its final position without having to lift the shower unit.
11
