Jacuzzi J-DREAM - Top Frame

J-Dream Owner’s Manual
Attach Top Frame to Door Frame, End Panel Assembly, Back Wall, and Seat
Wall Frames

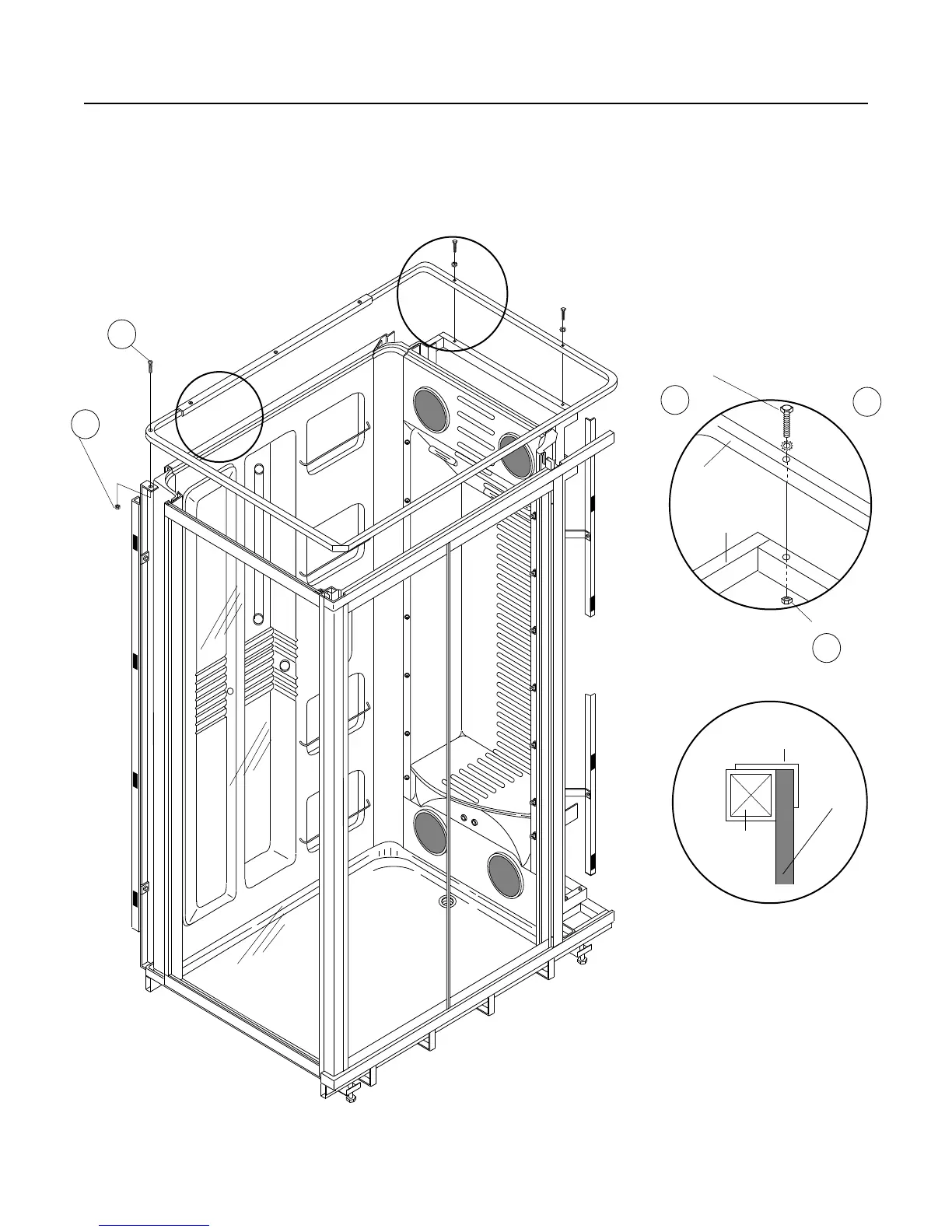

Press/tap top frame into door frame and end panel frame, aligning notch in door frame with corner of top of frame while
aligning with corners of enclosure (Illustration A). Frame snaps down into door frame and back snaps over back wall
(Illustration B). Install bolts (2) through top frame and into seat wall frame (Illustration A).
Top
Frame
Seat Wall
Frame
Back
Wall
Bracket
(preinstalled)
Top
Frame
A
B
Washer (2)
Bolt (2)
G
I
Nut (2)
J
A
B
Nut (1)
D
Screw (1)
P
