INST 396 Jacuzzi® J-HN Series Heater V12-16
5

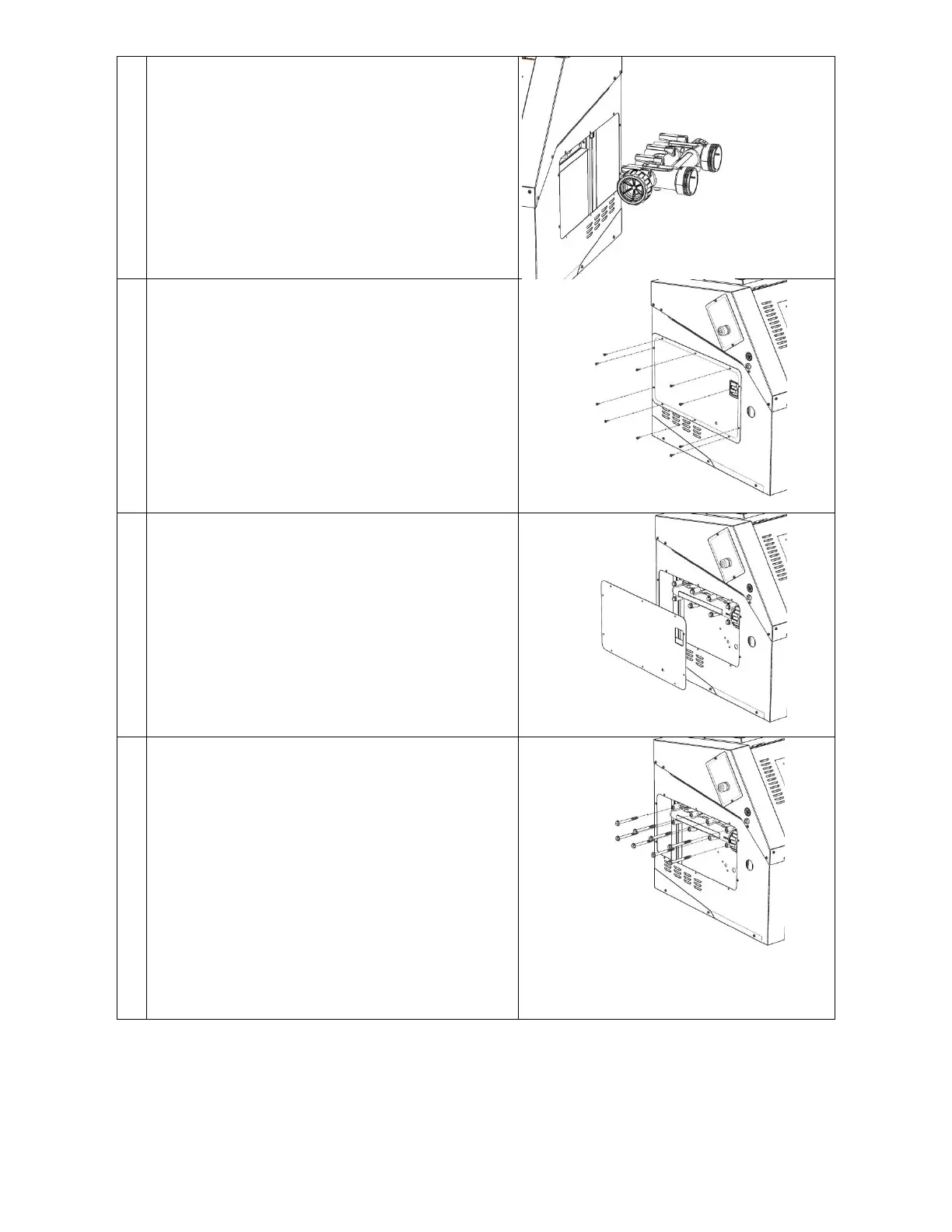

REMOVE RIGHT HAND SIDE MANIFOLD
6
USING A PISTOL CLUTCH TYPE TORQUE
CONTROL SCREWDRIVER , UNSCREW 10 X
SCREWS FROM RETURN HEADER COVER PLATE
JOB TORQUE SETTING 1.8 FT/IBS (2.5±0.1Nm):
7
REMOVE RETURN HEADER COVER PLATE
8
REMOVE 8X HEX HEAD BOLTS WITH CLICK TYPE
TORQUE WRENCH WITH 7/8” SOCKET
JOB TORQUE SETTING 2.6 FT/IBS (3.6±0.2Nm):
