Jacuzzi J-HN250C User Manual

- 32 -
INST 396 Jacuzzi® J-HN Series Heater V12-16
9

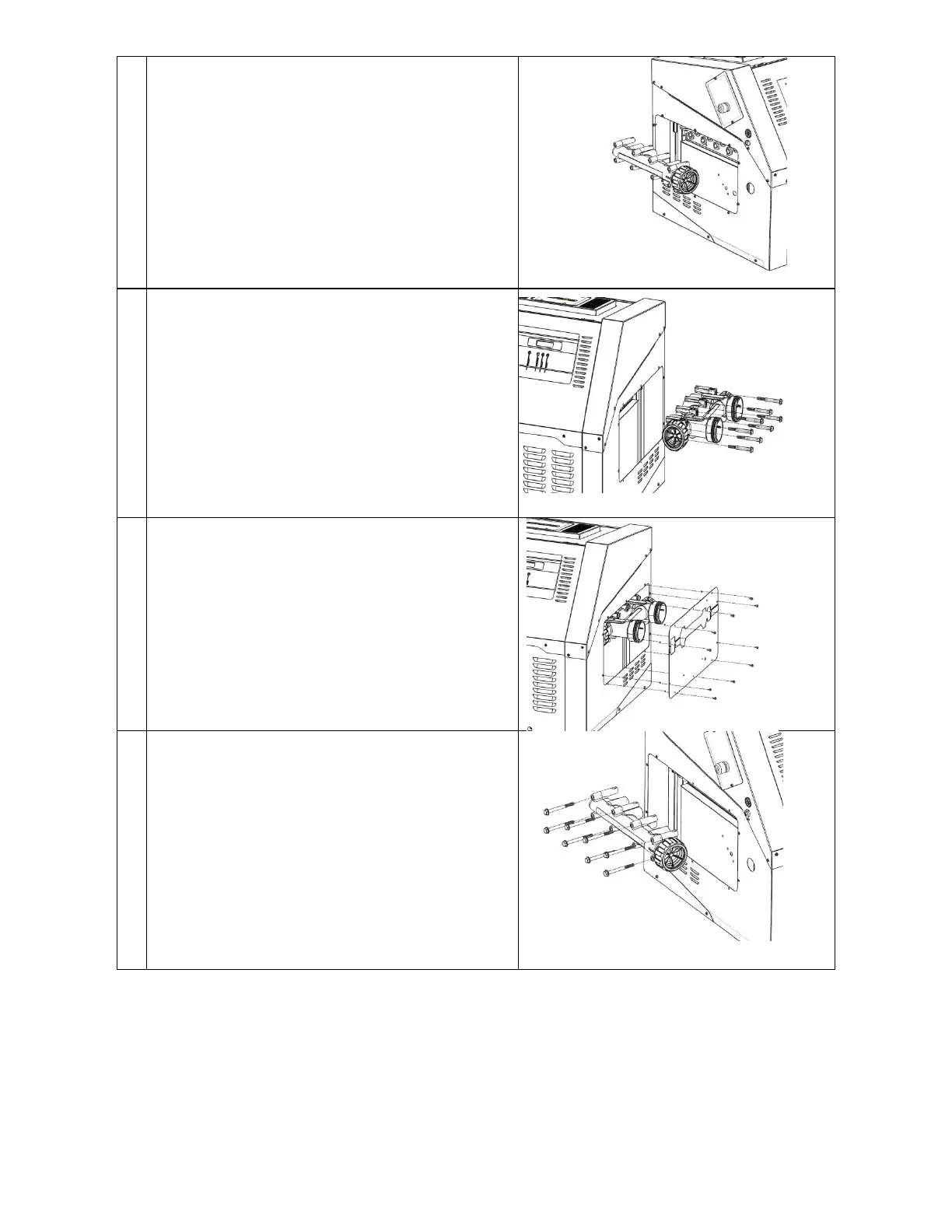

REMOVE LEFT HAND SIDE MANIFOLD
1
INSTALL RIGHT HAND SIDE MANIFOLD USING 8X
HEX HEAD BOLTS WITH CLICK TYPE TORQUE
WRENCH WITH 7/8” SOCKET
JOB TORQUE SETTING 2.6 FT/IBS (3.6±0.2 Nm):
2
ATTACH IN/OUT HEADER COVER PLATE TOP AND
BOTTOM USING A PISTOL CLUTCH TYPE TORQUE
CONTROL SCREWDRIVER , SCREW 10 X SCREWS
FROM IN/OUT HEADER COVER PLATE TOP AND
BOTTOM
JOB TORQUE SETTING 1.8 FT/IBS (2.5±0.1Nm):
3
INSTALL LEFT HAND SIDE MANIFOLD USING 8X
HEX HEAD BOLTS WITH CLICK TYPE TORQUE
WRENCH WITH 7/8” SOCKET
JOB TORQUE SETTING 2.6 FT/IBS (3.6±0.2 Nm):
