Jade JTRH - Oven Shut-Off Valve Removal

SM-14
Jade Range LLC – A Middleby Company
Titan
TM
Series Heavy Duty Range
Model Series JTRH, JMRH & JTRHE
REVIEW COPY 7
Oven Shut-Off Valves
NOTE: The Oven Shut-Off valve is located below the
manifold panel on the oven control panel, or is the far
left valve on griddle/char broiler units. See
THERMOSTAT AND THERMOCOUPLE for removal
and replacement.
WARNING
PERFORM THE ELECTRICAL LOCKOUT/
TAGOUT PROCEDURE.

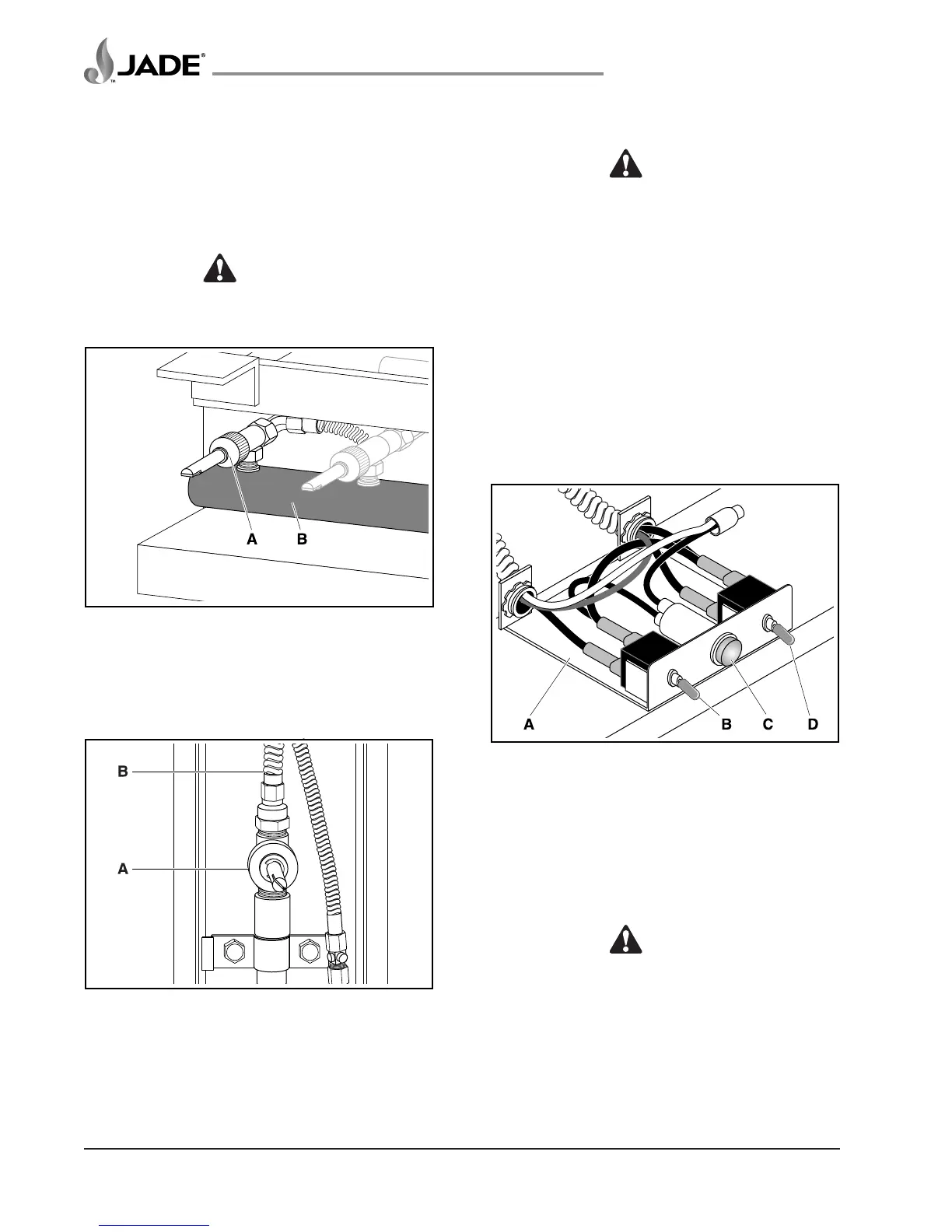

Figure 10: Oven Shut-Off Valve
(Griddle & Broiler Models)
A. Oven Shut-Off Valve
B. Manifold
Figure 11: Oven Shut-Off Valve
(Standard Configuration)
A. Oven Shut-Off Valve
B. Gas Line to Burner
1. Shut off all electrical controls and perform the
Electrical LOCKOUT/TAGOUT procedure.
WARNING
PERFORM THE GAS LOCKOUT/TAGOUT
PROCEDURE.
2. Shut off all gas controls and perform the Gas
LOCKOUT/TAGOUT procedure.
3. Remove manifold cover as described in
COVER and PANELS.
4. Remove gas line to burner and right angle
connector on burner.
5. Remove shut-off valve.
6. Reverse procedure to install valve.
Fan Motor Switches and Indicator Light
Figure 12: Fan Motor Switches
and Indicator Light
A. Switch Bracket
B. Power ON/OFF Switch
C. Power ON (P.O.) Light
D. Blower AUTO/OFF/MANUAL Switch
WARNING
PERFORM THE ELECTRICAL LOCKOUT/
TAGOUT PROCEDURE.
1. Shut off all electrical controls and perform the
Electrical LOCKOUT/TAGOUT procedure.
