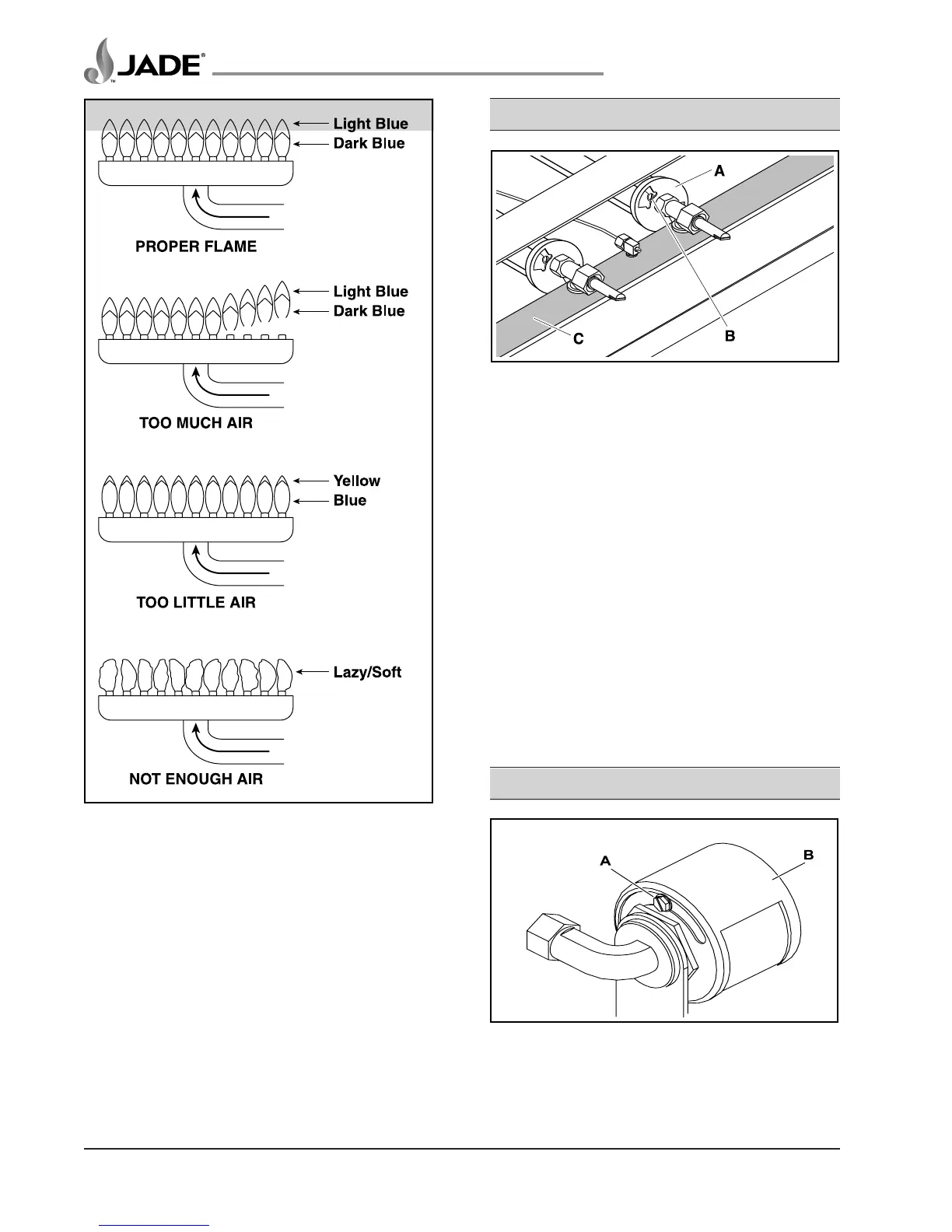

Figure 28: Examples of Burner Flames
TOP BURNER ADJUSTMENT
Figure 29: Top Burner Adjustment
A. Air Shutter
B. Air Shutter Adjustment Screw
C. Manifold
1. Remove manifold cover as described in
COVERS and PANELS.
2. Loosen the screw on the air shutter.
3. Light the burners and observe the quality of
the flame.
4. Adjust the air shutter as per AIR SHUTTER
ADJUSTMENT.
5. Repeat procedure for all burners.
6. Tighten screw on the air shutter.
7. Replace the manifold cover and burner knobs.
OVEN BURNER ADJUSTMENT
Figure 30: Oven Burner Adjustment
A. Air Shutter Adjustment Screw
B. Air Shutter/Mixer Sleeve
