REVIEW COPY 7
SM-20
Jade Range LLC – A Middleby Company
Titan
TM
Series Heavy Duty Range
Model Series JTRH, JMRH & JTRHE
Motor and Blower Assembly

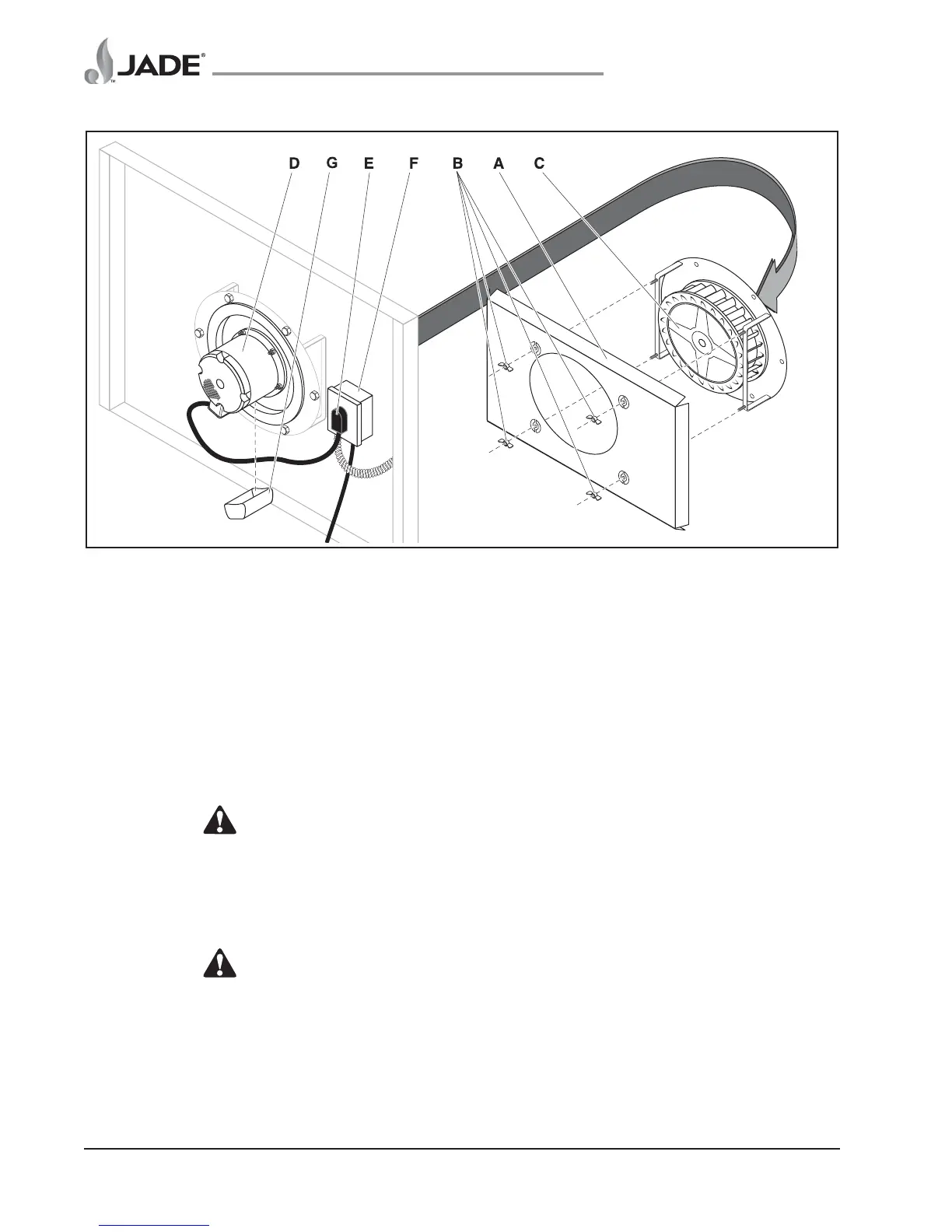

Figure 23: Motor and Blower Assembly
A. Blower Shield
B. Wing Nuts
C. Blower
D. Blower Motor
E. Blower Plug
F. Junction Box
G. Capacitor Cover
WARNING
PERFORM THE ELECTRICAL LOCKOUT/
TAGOUT PROCEDURE.
1. Shut off all electrical controls and perform the
Electrical LOCKOUT/TAGOUT procedure.
WARNING
PERFORM THE GAS LOCKOUT/TAGOUT
PROCEDURE.
2. Shut off all gas controls and perform the Gas
LOCKOUT/TAGOUT procedure.
3. Remove oven racks and rack supports from
inside oven cavity.
4. Remove four wing-nuts on blower cover. Then
remove the cover from the oven cavity.
5. Remove the 6 bolts around the perimeter of
the mounting plate.
6. Remove motor/blower assembly and set it down
inside the oven cavity.
7. Reach through the opening and unplug the
blower assembly at the back of the range
(Twist-Loc-Plug).
8. Remove four bolts and spacers on motor mount.
9. Reverse procedure to install the assembly.
