JAGA NV | BRIZA   JFCC | MANUEL | .. | V..

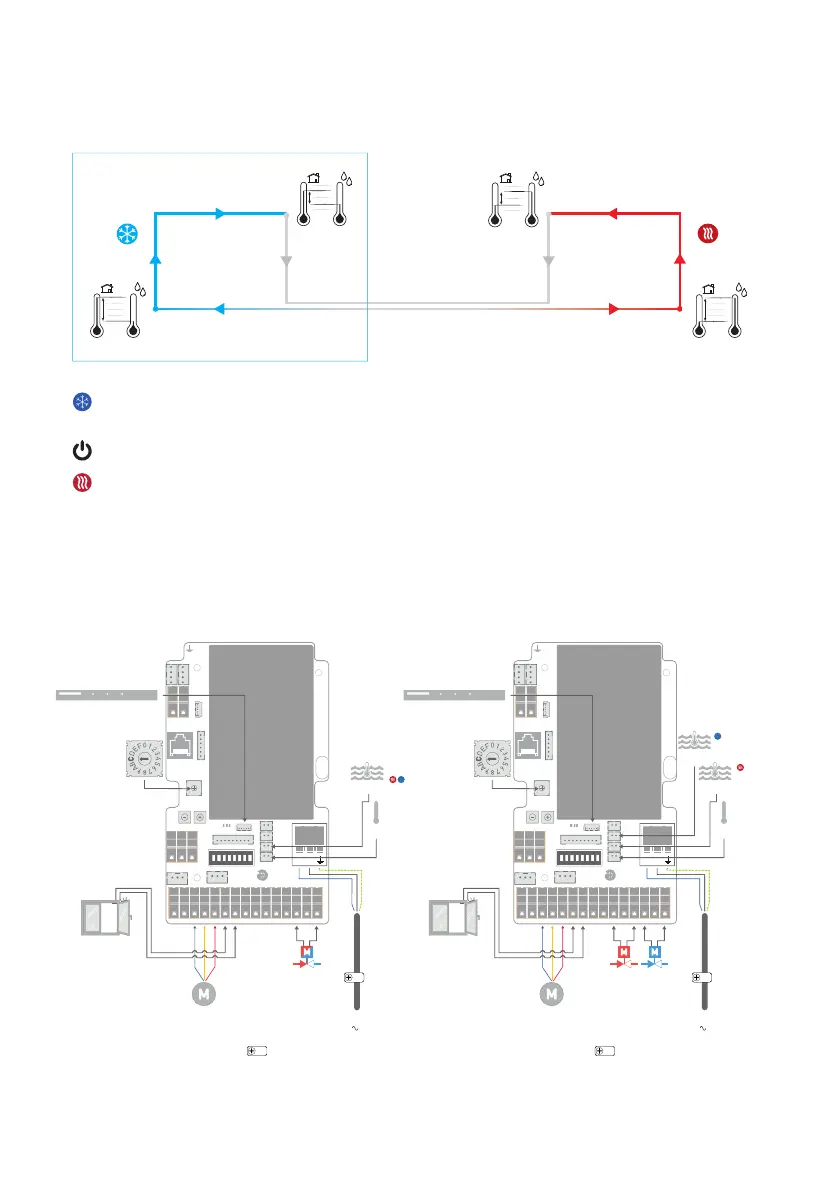

B. 0  10V BMS WITH WATER AND ROOM TEMPERATURE MONITORING

AUTOCHANGEOVER

Configuration code : FCC.BRC / FCC.BRC / FCC.BRC

4⁰C

1⁰C

2⁰C

Standby mode

Only in combination with a suitable heat

pump and control valve for heating and

cooling

The device automatically enters cooling mode when the water temperature is 

C/°F below the room temperature. If

the differential between room and water temperature is less than 

C/°F, the device will automatically switch to standby.

The unit is in standby. The unit automatically starts a new cycle if the preset temperature is reached.

The device automatically enters heating mode when the water temperature is 

C/°F above the room temperature.

If the differential between room and water temperature is less than 

C/°F higher than the room temperature, the

device will automatically switch to standby.

strain relief strain relief

POWER 45W

INPUT: 110-240VAC

OUTPUT: 24V

15120045

GND GND GND GNDNTC1 V.H. V.C.0-10V0-10V0-10V +24V

GND 0-10V 24V

GND 24V

+24V RC IN/OUT GND

Tsens 1

CONTROL PANEL

I2CRS485 A/B

CO2PC / RF

THERMOSTATE 1

DIPSWITCH

Tsens 2

Tsens 3

Tsens 4

JAGA

12345678

(230V - 50Hz)

[C]

[B]

[D]

MODE

[F]

[I]

[A]

[G] [H]

4-pipe
