J&M HT-974 - Axle Weldments

16

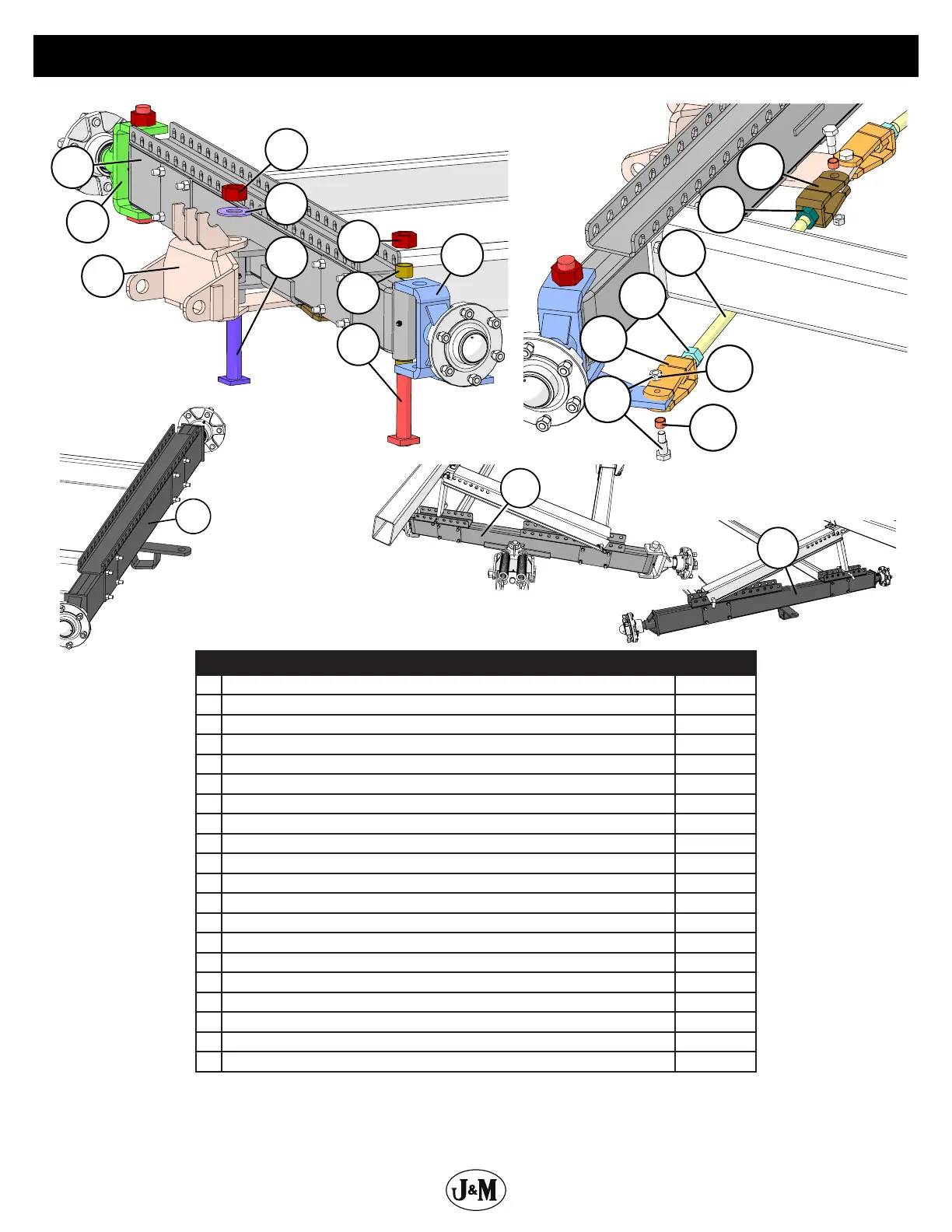

Axle Weldments
2
1
6
3
5
4
8
7
4
9
10
11
12
13
14
15
17
16
18
Description Part No.
1 Front Axle, Less Hub, Spindle Assembly and Hitch For Stalk Rollers (HT) JM0076273
2 1-3/4” Spindle & “U” Assembly, Right (SA-874R) JM0030141
3 Hitch Swivel Weldment 6-8 Ton (HT-974) (HW-68) JM0030131
4 1-1/4”-12 Gr5 Z Hex Nut JM0002158
5 1-1/4” USS Flat Washer JM0010112
6 King Pin Vertical Hitch Bolt (1-1/4” x 7-3/4”) 6-10 Ton (KP-610) JM0027665
7 1-1/4” ID x 1-1/2” OD Bronze Bushing (1” Depth) JM0002248
8 Spindle Bolt 1-1/4” x 10-1/4” (HT974) (SB-114) JM0019324
9 1-3/4” Spindle & “U” Assembly, Left (SA-874L) JM0030136
10 6-10 Ton Clevis Weldment (Left) (TRE-78L) JM0003168
11 7/8”-14 Gr5 Z LH Hex Nut JM0027686
12 Tie Rod (7/8” x 24-1/2”) (TR-78) JM0030104
13 7/8”-14 Gr5 Z Hex Nut JM0025714
14 6-10 Ton Clevis Weldment (Right) (TRE-78R) JM0030149
15 5/8” Shoulder Dia x 1” Shoulder Length x 1/2”-13 Shoulder Bolt & Nut (SB-58) JM0002408
16 1/2”-13 Gr5 Z Centerlock Hex Nut JM0001511
17 5/8” ID x 3/4” OD x 1/2” Bronze Bushing (BB-58) JM0003189
18 Rear Axle, Less Hub Assemblies for Stalk Roller (HT) JM0076274
19 Front Axle, Less Hub, Spindle Assembly and Hitch (HT) (FA-974) JM0030103
20 Rear Axle, Less Hub Assemblies (HT) (RA-974) JM0030097
20
19
Standard Axle Weldments
shown here
Stalk Roller Axle Weldments
shown here
