J&M HT-974 - Spindle & Tire Assemblies

17

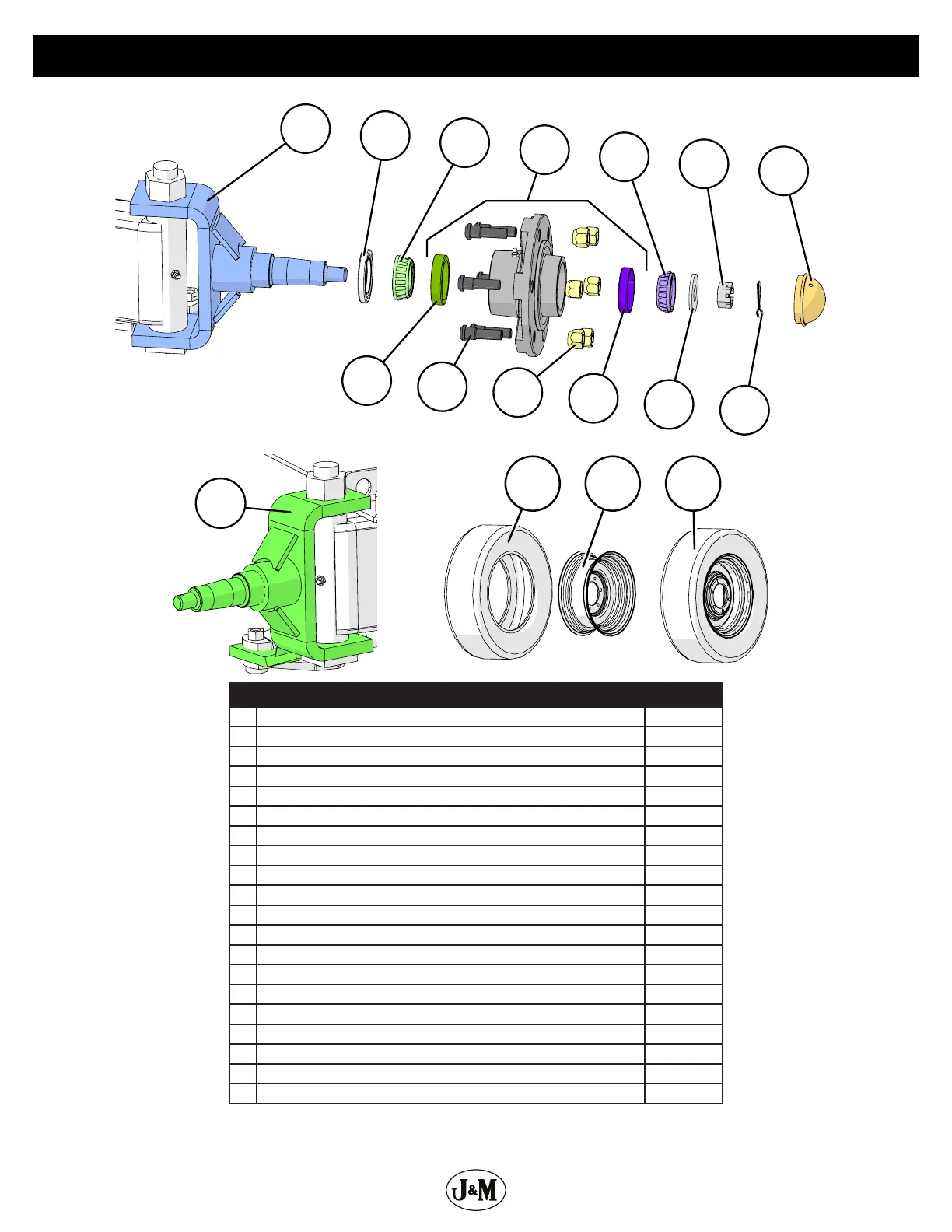

Spindle & Tire Assemblies
1
2
3
8
9
13
11
4
5
12
6
10
7
14
15 16 17
Description Part No.
1 1-3/4” Spindle & “U” Assembly, Left (SA-874L) JM0030136
2 Grease Seal, 6-8 Ton (103953) JM0026572
3 Large Inner Bearing for 6-8 Ton (LM48548) (104579) JM0019563
4 G25 Hub with Races, Studs and Nuts, 7-8 Ton (105218) JM0026566
5 Small Outer Cone for 6-10 Ton (LM67048) JM0019564
6 3/4”-10 Gr5 Z Castle Hex Nut JM0002130
7 Dust Cap, 6-10 Ton (103969) JM0026567
8 Large Cup for 6-8 Ton (LM48510) (104580) JM0026565
9 Wheel Stud for Hub, 6-8 Ton (1/2”-20 x 1-7/8”) (4187) JM0019559
10 1/2”-20 Lug Nut, 6-8 Ton (5552) JM0003062
11 Small Cup for 6-10 Ton (LM67010) (200500) JM0026564
12 3/4” USS Flat Washer JM0010006
13 5/32” x 1-1/2” Cotter Pin JM0014348
14 1-3/4” Spindle & “U” Assembly, Right (SA-874R) JM0030141
15 14” Tire 215/75R14D (HT974) JM0019529
15 15” Tire ST215-75E15 (Carlisle) JM0030451
16 14” x 6”- 6 Hole Wheel Rim JM0019535
16 15” x 6” Wheel 6 Hole JM0030449
17 ST215-75D14 Carlisle Sport Trail Tire and 14x6 - 6 Hole Wheel Rim JM0019536
17 15” Wheel & Tire Assembly ST215-75E15 6 Bolt (Carlisle) JM0030452
