J&M HT-974 - Specs and Dimensions

6

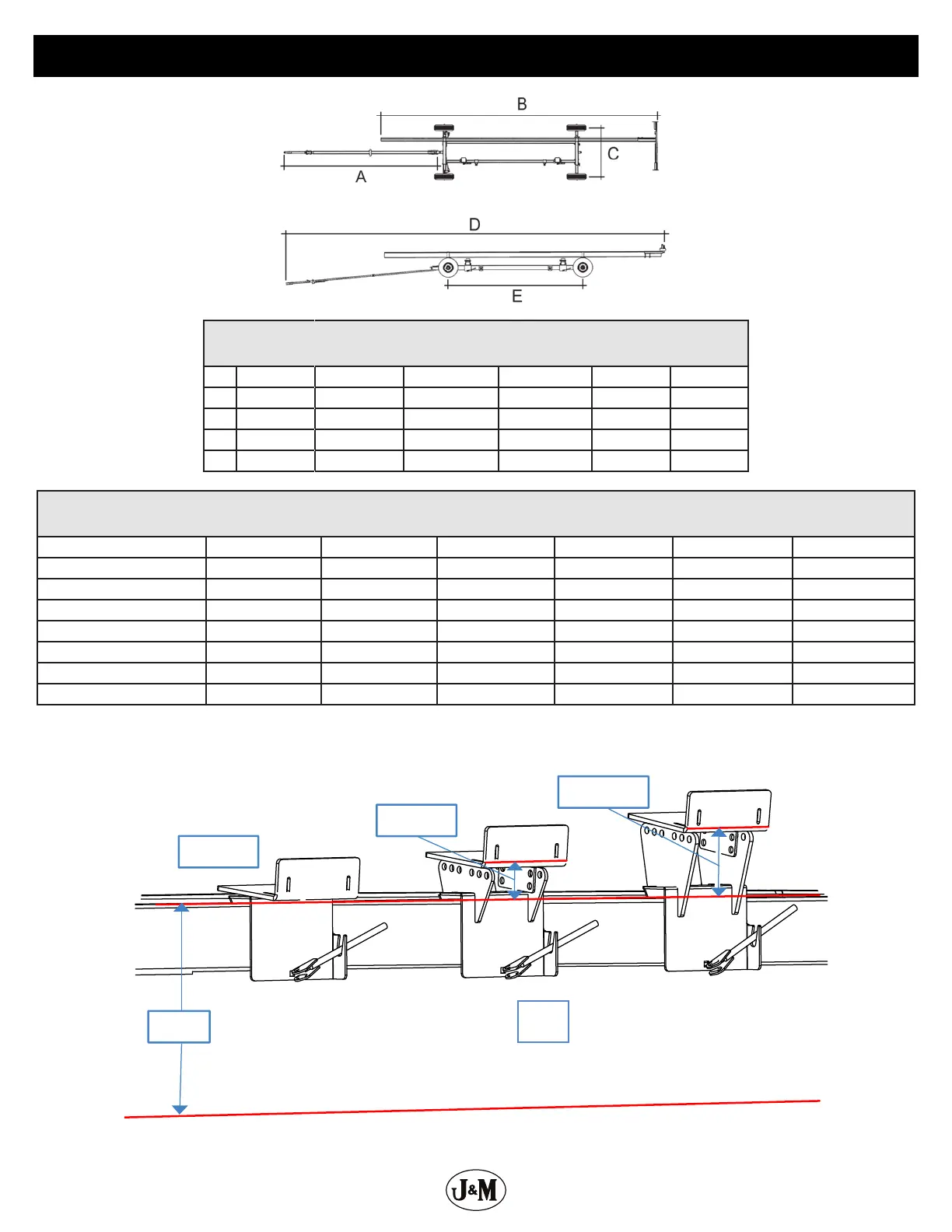

Specs and Dimensions
*HT-974-16 is at a height of 14”
Dimensions
HT-974 HT-974L-30 HT-974L-30X HT-974XL-36 HT-974-16 HT-974-20
A 12’-0” 15’-0” 15’-0” 17’-0” 6’-2” 6’-2”
B 27’-0” 32’-0” 32’-0” 38’-0” 16’-10” 20’-5”
C 6’-2” 6’-2” 6’-2” 6’-2” 6’-2” 6’-2”
D 33’-6” 39’-9” 36’-9” 44’-9” 23’-5” 27’-1”
E 13’-10” 16’-6” 24’-4” 16’-6” 14’-4” 18’-4”
Specications
HT-974 HT-974L-30 HT-974L-30X HT-974XL-36 HT-974-16 HT-974-20
Weight 1,540 lbs 1,755 lbs 1,870 lbs 1,830 lbs 1,580 lbs 1,725 lbs
Capacity (Net) 7,500 lbs 10,700 lbs 10,500 lbs 10,620 lbs 10,800 lbs 11,000 lbs
Spindle Size 1-3/4” Diameter 1-3/4” Diameter 1-3/4” Diameter 1-3/4” Diameter 1-3/4” Diameter 1-3/4” Diameter
Wheel Size 14”x6”-6 Bolt 15”x6”-6 Bolt 15”x6”-6 Bolt 15”x6”-6 Bolt 15”x6”-6 Bolt 15”x6”-6 Bolt
Tire Size 215/75R14-D 225/75R15-E 225/75R15-E 225/75R15-E 225/75R15-E 225/75R15-E
Steel Upper Bar 4”x6” 4”x6” 4”x6” 4”x6” 4”x6” 4”x6”
Upper Bar Length 25’ 30’ 30’ 36’ 20’ 20’
Box Channel Axle Frame 6” 6” 6” 6” 6” 6”
Extra low pro
mount
weldment for
4” x 6” tube
4-1/2” lip
Low pro base
weldment for
4“ x 6” tube and
upper mount
with 4-1/2” lip
High pro base
weldment for
4” x 6” tube and
upper mount
with 4-1/2” lip
17”
0”
4” or 6”
8” or 10”
High Prole
Mount
Standard
Low Prole
Mount
Extra
Low Prole
Mount
Measurement for “Ground to Top of Bar Height” is based on
standard tires and apex of the crown of the bar.
4-Wheel Steer Mount Options
