Page 19
Jandy
®
JXi
™
Gas-Fired Pool and Spa Heater | Installation & Operation Manual
3.3.7 Indoor and Outdoor Shelter Exhaust
Termination
Category I: Appliance must be vented vertically and
terminate at the roof. Vent must terminate at least
2 feet (610 mm) above any objects within 10 feet
(3.05 m). Termination must pass through a properly
installed and approved roof jack, a properly sized
storm collar and an listed vent cap. See Figure 4.
Category III: Appliance can be vented vertically
to terminate at the roof or vented horizontally to
terminate at a side wall. Side wall vents must be
installed and located in accordance with the National
Fuel Gas Code NFPA
®
54 / ANSI
®
Z223.1 or the
Canadian Natural Gas and Propane Installation Code
CAN/CSA-B149.1. In addition some local installation
codes may have requirements that exceed those of
the national codes. The product must be installed
in accordance with the codes being enforced by the
local Authority Having Jurisdiction (AHJ).
Inlet
12 in (30 cm) min.
a
FORCED AIR INLET
3 ft (0.9 m) min.
If dim. “a”
is less than
10 ft (3.0 m)
4 ft
(1.2 m) min.
4 ft
(1.2 m) min.
VENT TERMINATION
(Suggested Z-Vent part# 2SVSRTF)
Refer to CSA B149 for requirements specific to Canadian installations.
Check local installation codes which may require greater minimum
distances from windows and doors to be maintained.
12 in (30 cm) min.
above snow or finished grade, whichever is higher
7 ft (2.13 m) min.
above grade
adjacent to
public walkways

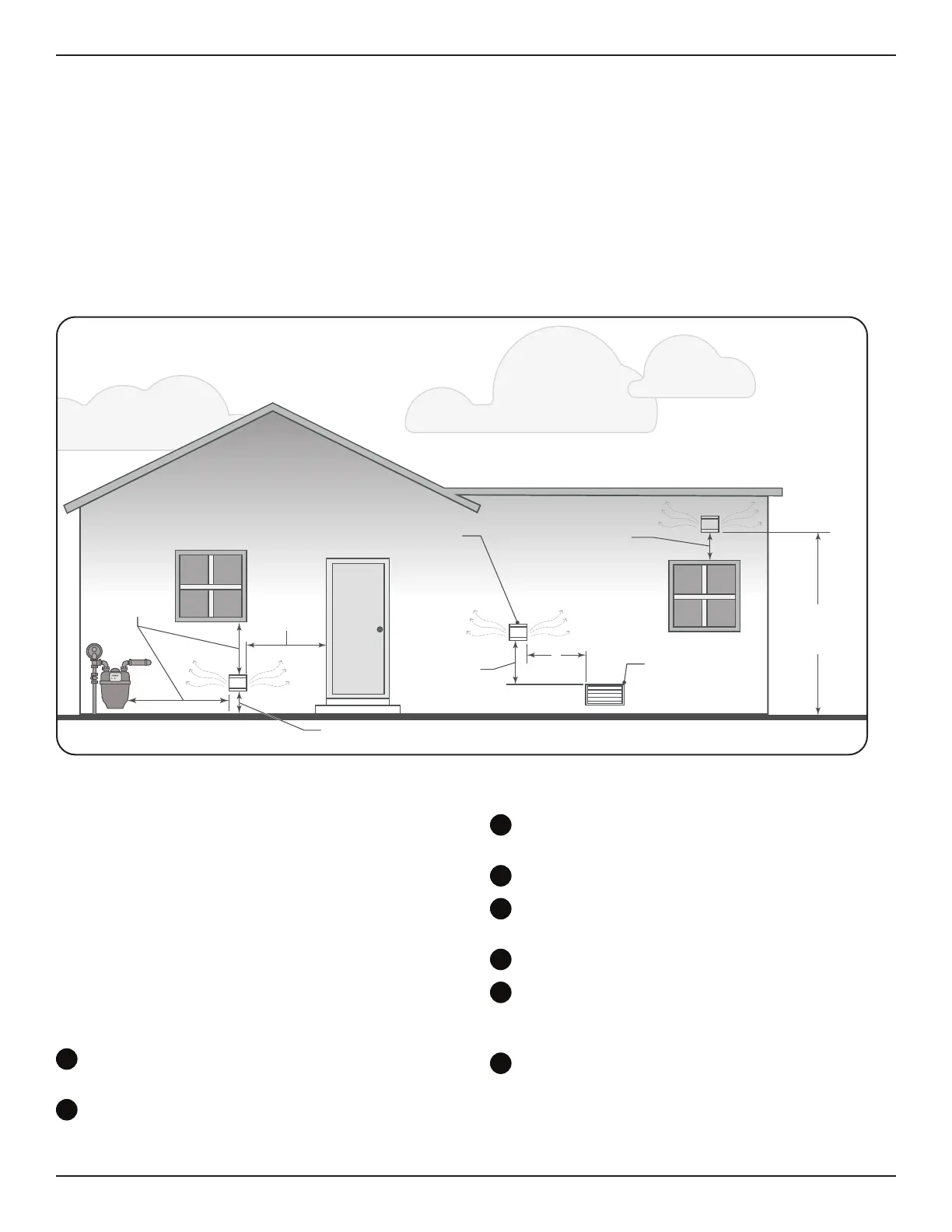

Figure 7. Side Wall Vent Termination
3.3.8 Outdoor Heater Install with Venting for
Extreme Weather Conditions
In the event that the heater is installed outdoors
and there are concerns over extreme weather
conditions, the heater exhaust can be converted
using Category III vent material as shown in this
section. An approved Category III vent termination
cap needs to be installed vertically. We recommend
using a vent termination cap from Z-flex (part #:
2SVSRCF04). The vent adaptor is also required and
can be ordered as R-Kit R0731100.
Remove two screws securing the exhaust grill to
the exhaust grill backplate.
Remove exhaust grill.
Remove the two screws securing the rain shield
to the exhaust backplate.
Remove the rain shield.
Remove the remaining two screws securing the
exhaust backplate to the exhaust outlet.
Remove the exhaust grill backplate.
Using two #10 thread cutting screws secure the
vent adapter from R-Kit R0731100 to the exhaust
outlet.
Install 4” elbow to the vent adapter using the
screw clamp to ensure a proper seal.
To Next Page
