Vent the heater vertically using Al29-4C stainless
steel components. Consult manufacturers such
as Z-Flex
®
or Heat Fab
®
to obtain approved
components. Venting materials must comply with
UL
®
1738 for Category III, Special Gas Vent. Based
on the normally expected fl ue temperatures of this
appliance. PLASTIC VENTING MUST NOT BE USED.
Install vent cap to the vent elbow. Double check
that there are no possible leak paths between joints.
If a leak path is identifi ed or suspected it can be
sealed using red RTV 600° F rated silicone adhesive.
When using parts or materials from other
manufacturers please be sure to follow the
manufacturers instructions completely to ensure
harmonious function.
IMPORTANT NOTE: In the Commonwealth of
Massachusetts, additional requirements, covered
in document CMR 248 5.00, which supersede
some of the requirements of ANSI Z223.1 (NFPA
54) apply to Side Wall Horizontally Vented
appliances. If installing this product using an
approved side-wall horizontal vent system in the
Commonwealth of Massachusetts, be sure to
adhere to these additional requirements. These
requirements include verbiage that says that
the property owner is to ensure that Carbon
Monoxide Detectors are installed in the vicinity of
the appliance and also on all levels of the dwelling
in which the appliance is installed.
For further instructions, contact Technical Support
at 800.822.7933.
A properly designed common venting system must
include vent temperature limit switches for each
appliance. All vent limit switches must be wired in
series so as to prevent any appliance from fi ring
in the event of a blocked vent. An outside draft
inducer must be installed to pull and create negative
pressure in the vent system. Refer to ANSI
®
Z223.1
or in Canada CAN/CSA B149.1 for more information
on common venting multiple appliances. Do not
connect vent systems of different categories to the
same venting system.
i
g
h
a
e
b
f
c
d

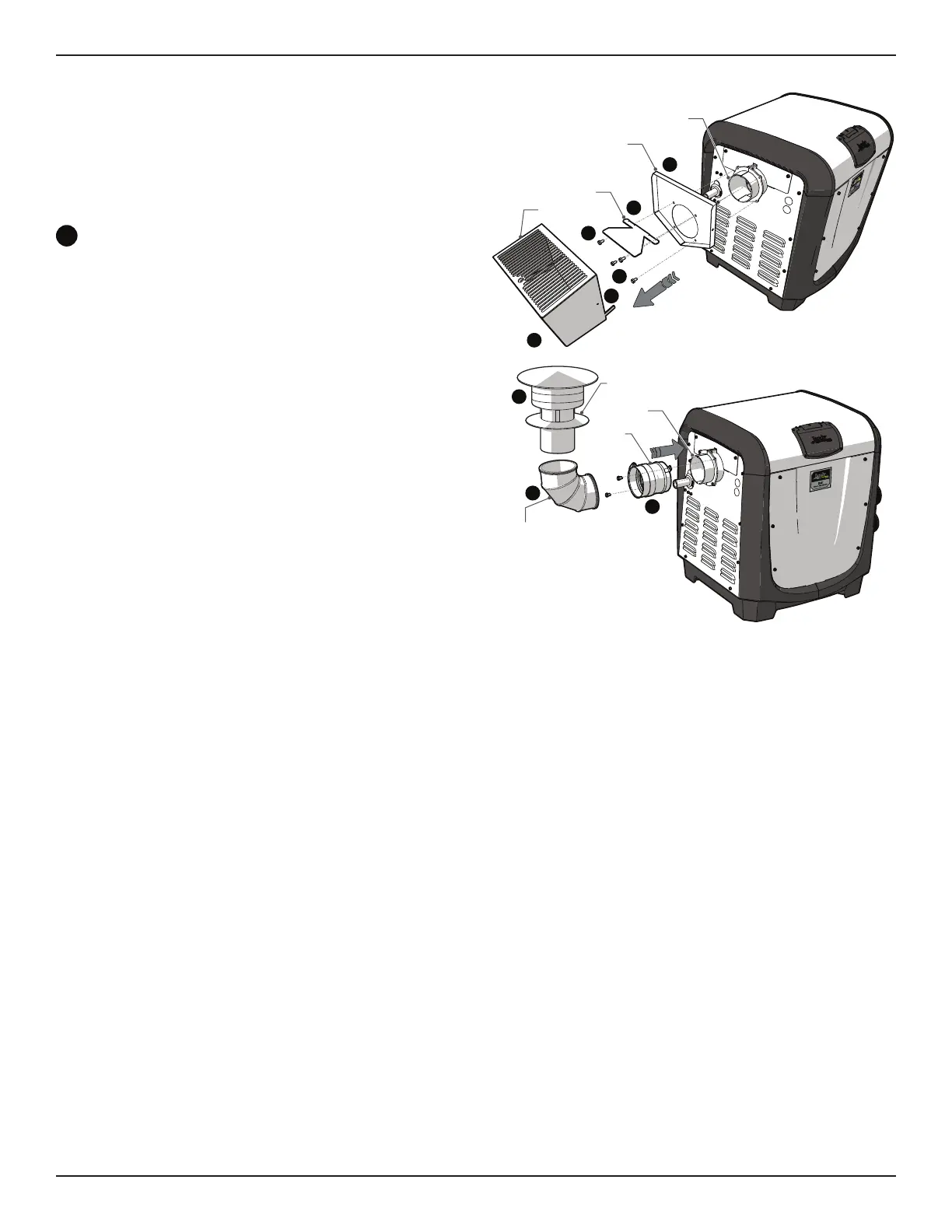

Exhaust Grill
Exhaust
Outlet
Vent Cap
Vent
Adapter
Vent Elbow
Exhaust Grill
Backplate
Rain Shield
Exhaust Outlet
3.3.10 Inspection and Replacment of Existing
Vent System with New Components
When replacing an existing pool heater with the JXi,
it is recommended that a new appropriate venting
system is installed with the new heater.
However, if the existing venting system must be
used, be sure to carefully inspect the existing
system to ensure that it is in good condition
and appropriate for the JXi heater. Replace any
parts that are not in serviceable condition before
completing the installation.
3.3.9 Precautions Against Common Venting
Zodiac Pool Systems LLC does not recommend
using a common vent to vent multiple appliances
through a common duct. If no other option
is deemed available by the installer, seek the
assistance of a Registered Professional Engineer for
proper design of a common venting system.
