Jandy Laminar Jet User Manual

Page 6

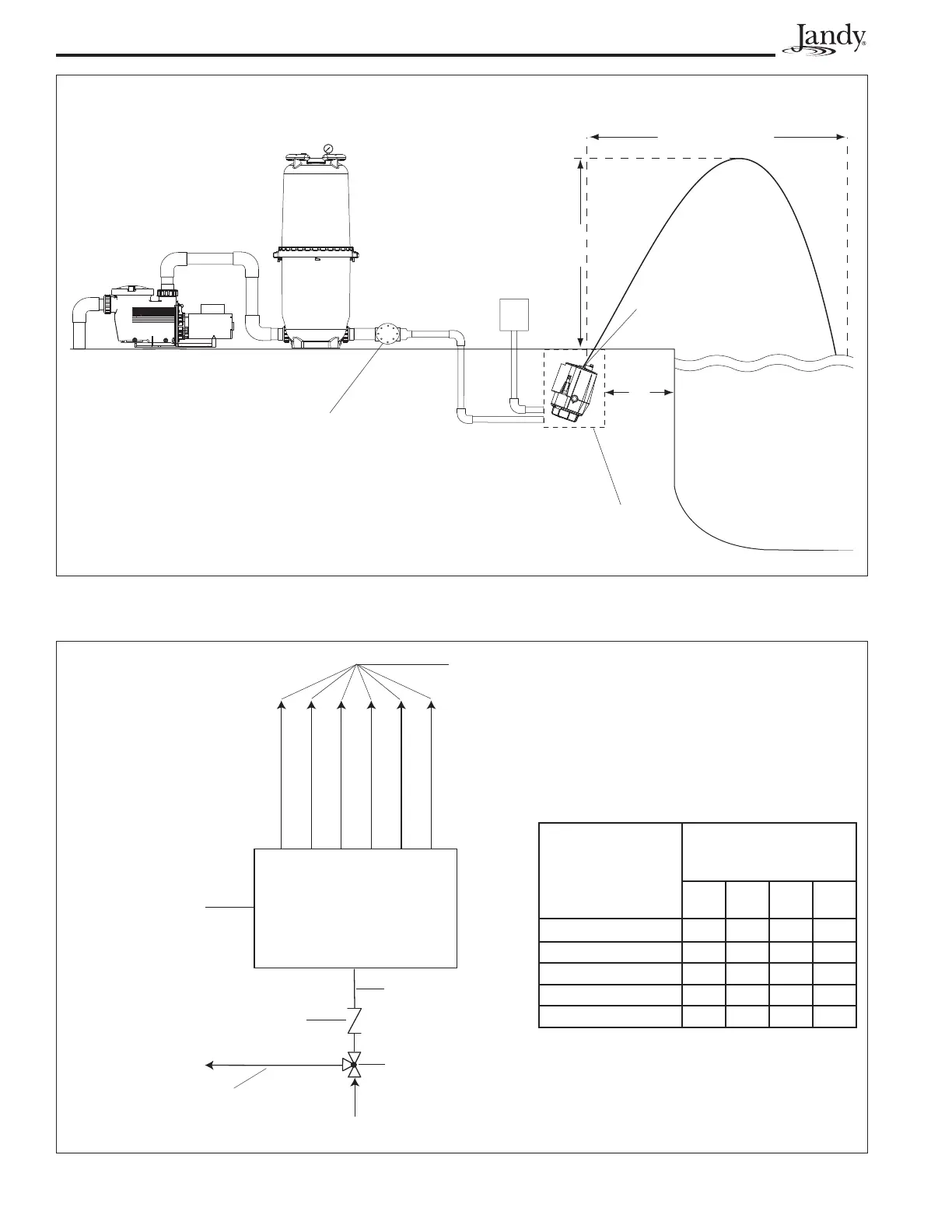

Figure 2. Plan View of Plumbing Loop for Multiple Laminar Jets
Table 1. Multiple Jet Setup
Number of
Laminar Jets at
rate of 10 GPM
(gallons per
minute)
Recommended Pipe
Size within 25' of
equipment
ABCD
2 1½" 1" 1" 1½"
3 1½" 1½" 1" 1½"
4 2" 1½" 1" 2"
5 2" 1½" 1" 2"
6 2" 1½" 1" 2"
"B" - Plumbing
Loop
"C" - Inlet Lines to
Laminar Jet Deck Canister
(Maximum 6 Lines per
Plumbing Loop)
"D" - Bypass/Bleed Off Line
"A" - Main Feed Line
Check Valve
Jandy 3-Port Valve
(P/N 4715 if
" A " is 1½ " or P/N 4717 if " A " is 2 " )
Note: If using a high head pump,
plumb a cartridge filter inline.
Figure 1. Basic Plumbing Diagram for Laminar Jet with Deck Canister
Pump
Filter
Check Valve
Jandy Laminar
Nozzle
Water Throw
8' Maximum
6'
max
Deck Canister
Water Height
7' Maximum
Low Voltage
Transformer
