WARNING
Do not connect the compressor to the power source at this time. All of
the preparation must be completed and all panels reinstalled before elec-
trically connecting the compressor.
Unit must be wired by an authorized electrician in accordance with the
national Electrical Code, ANSI NFPA 70-1987, as well as the local
codes. This shall include installation of a readily accessible disconnect
device into the fixed wiring supplying power.
An insulated earthing conductor that is identical in size, insulation mate-
rial and thickness to the earth and unearth branch circuit supply conduc-
tors, except that it is green with or without one or more yellow stripes is
to be installed as part of the branch circuit which supplies the unit or sys-
tem. The earthing conductor described is to be connected to the earth at
the service equipment, or supplied by a separately derived system at the
supply transformer or generator.
8200 Compressor
CTI-CRYOGENICS
HELIX TECHNOLOGY CORPORATION

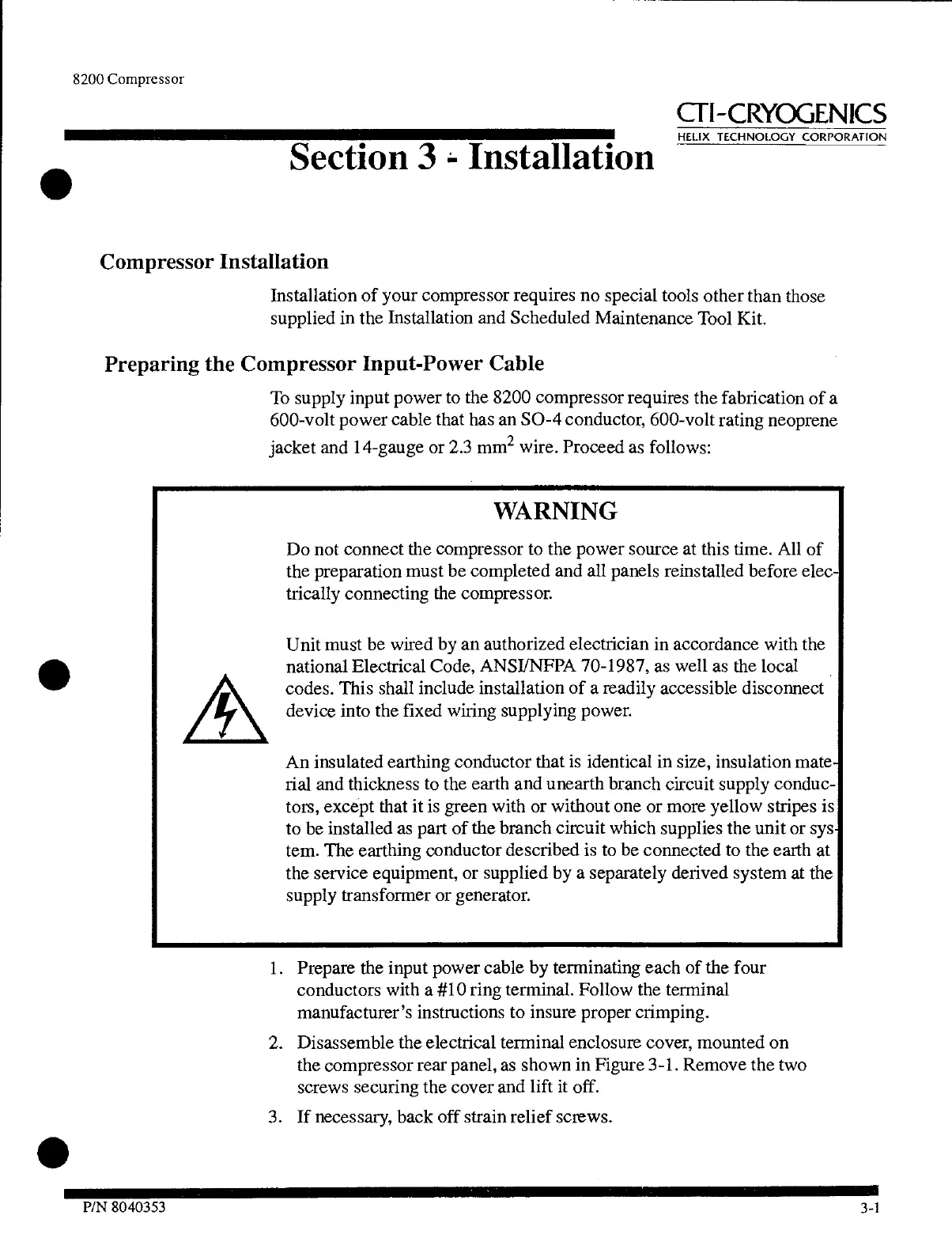

Section 3 - Installation
Compressor Installation
Installation of your compressor requires no special tools other than those
supplied in the Installation and Scheduled Maintenance Tool Kit.
Preparing the Compressor Input-Power Cable
To supply input power to the 8200 compressor requires the fabrication of a
600-volt power cable that has an SO-4 conductor, 600-volt rating neoprene
jacket and 14-gauge or 2.3 mm
2
wire. Proceed as follows:
1.
Prepare the input power cable by terminating each of the four
conductors with a #10 ring terminal. Follow the terminal
manufacturer's instructions to insure proper crimping.
2.
Disassemble the electrical terminal enclosure cover, mounted on
the compressor rear panel, as shown in Figure 3-1. Remove the two
screws securing the cover and lift it off.
3.
If necessary, back off strain relief screws.
■
1111
■
111111111
■
111
■
1111
P/N 8040353
3-1
