Janis CCS-150 - The Model 22 Cold Head

CTI-CRYOGENICS
HELIX TECHNOLOGY CORPORATION
S
Lo w J
O
1. Drive Unit
6. Gas Return Connector
2.
Crankcase (Houses the Drive Mechanism)
7.
Cylinder
3. Drive Motor
8.
Second-Stage Cold Station
4. Power Connector
9. First-Stage Cold Station
5.
Gas Supply Connector
10.
Top Flange
•

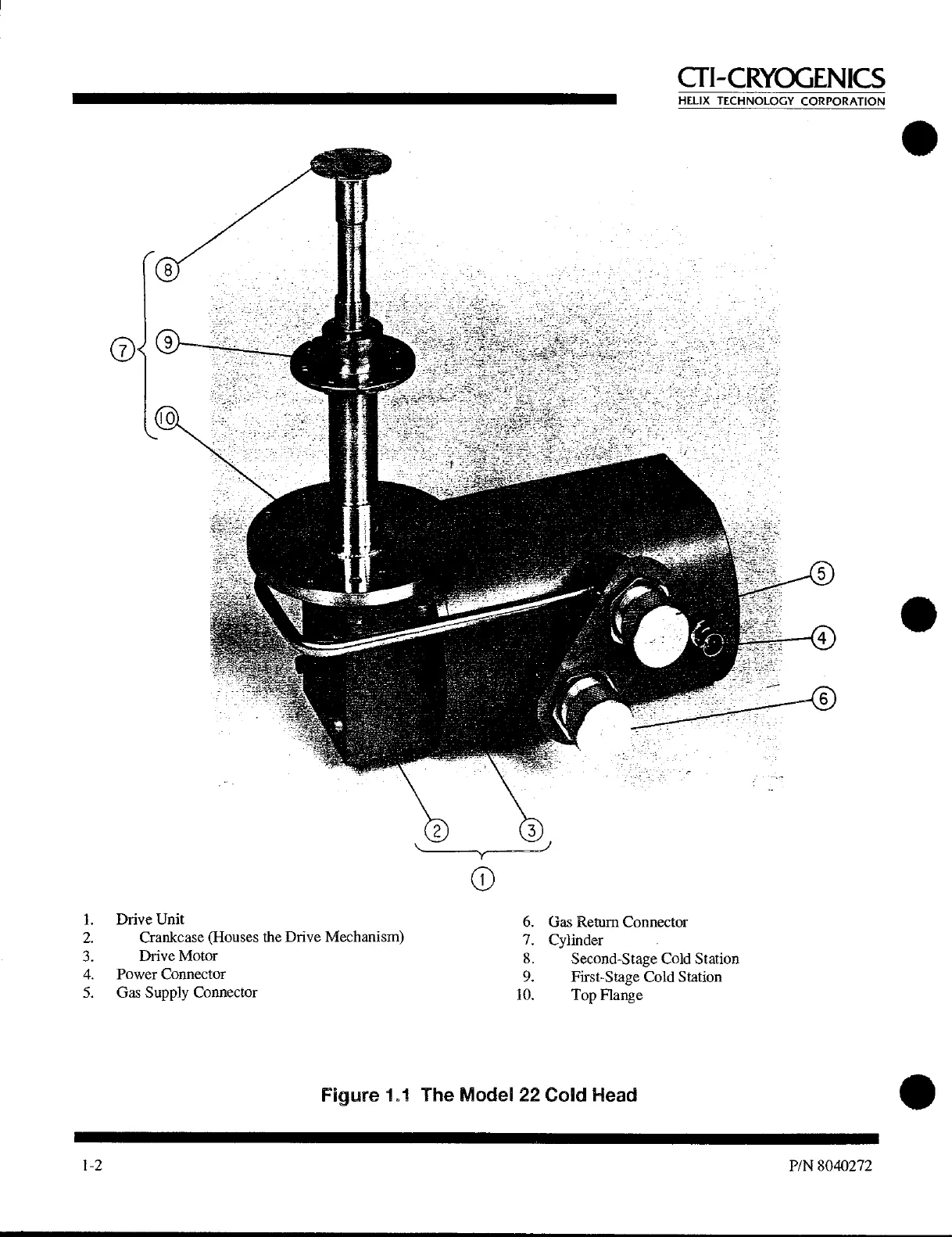

Figure 1.1 The Model 22 Cold Head
1-2 
PIN 8040272
