Z (not used for single phase)
Ground Screw
Power Cable
8200 Compressor
CTI-CRYOGENICS
HELIX TECHNOLOGY CORPORATION

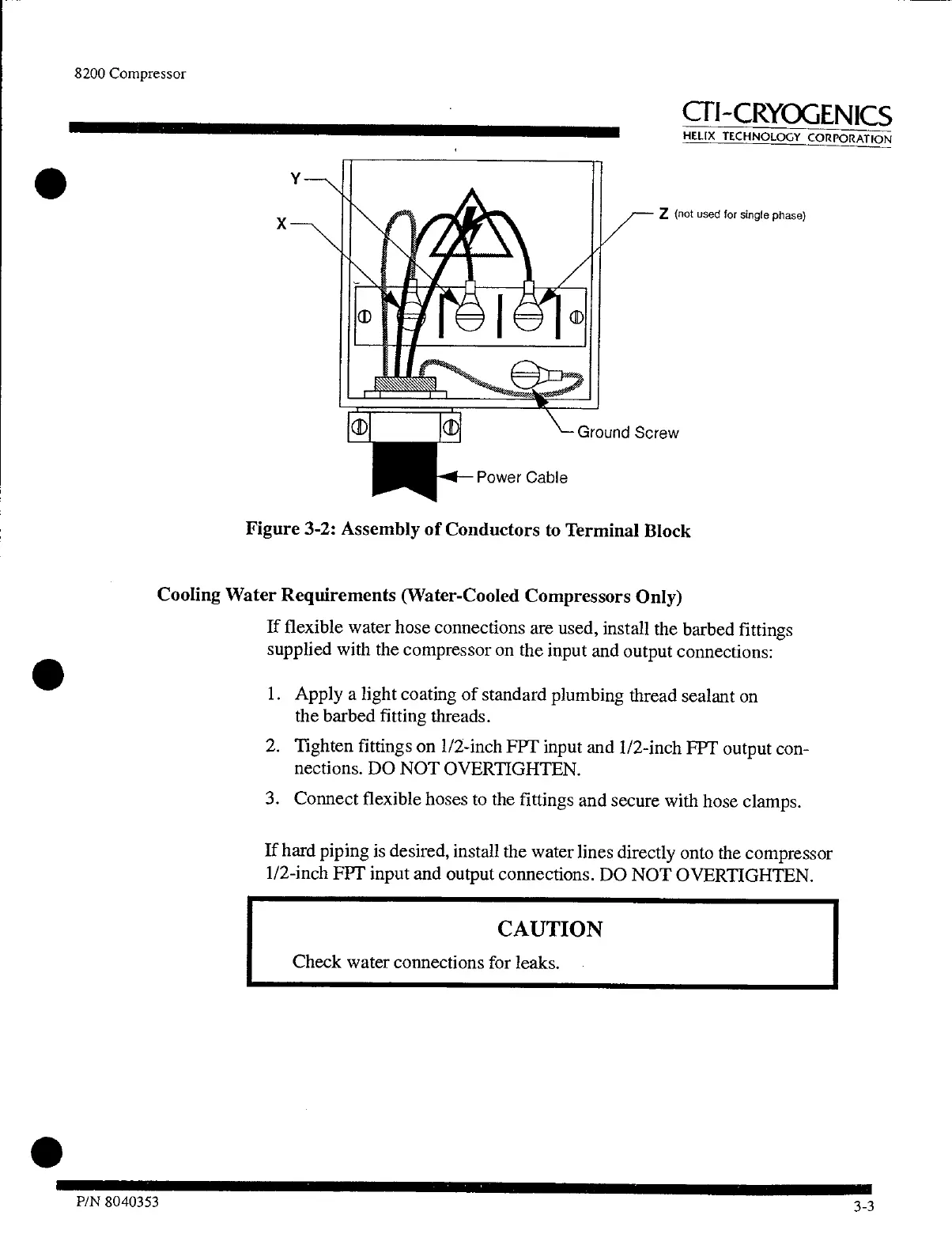

Figure 3-2: Assembly of Conductors to Terminal Block
Cooling Water Requirements (Water-Cooled Compressors Only)
If flexible water hose connections are used, install the barbed fittings
supplied with the compressor on the input and output connections:
1.
Apply a light coating of standard plumbing thread sealant on
the barbed fitting threads.
2.
Tighten fittings on 1/2-inch FPT input and 1/2-inch 1-1-
7
1 output con-
nections. DO NOT OVERTIGHTEN.
3.
Connect flexible hoses to the fittings and secure with hose clamps.
If hard piping is desired, install the water lines directly onto the compressor
1/2-inch FPT input and output connections. DO NOT OVERTIGHTEN.
CAUTION
Check water connections for leaks.
P/N 8040353

3-3
