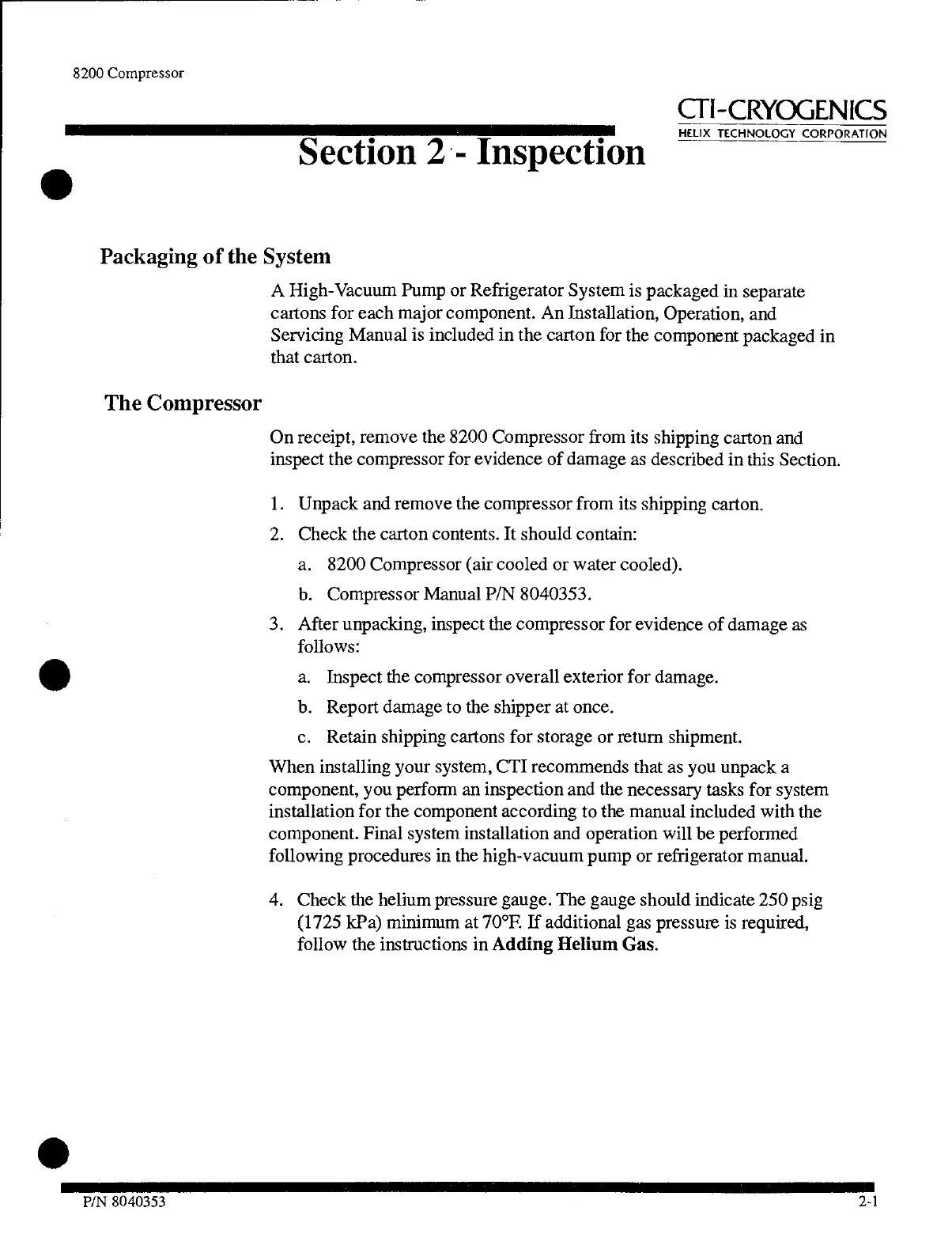

8200 Compressor
CFI-CRYOGENICS
Section 2 - Inspection
HELIX TECHNOLOGY CORPORATION
Packaging of the System
A High-Vacuum Pump or Refrigerator System is packaged in separate
cartons for each major component. An Installation, Operation, and
Servicing Manual is included in the carton for the component packaged in
that carton.
The Compressor
On receipt, remove the 8200 Compressor from its shipping carton and
inspect the compressor for evidence of damage as described in this Section.
1. Unpack and remove the compressor from its shipping carton.
2. Check the carton contents. It should contain:
a.
8200 Compressor (air cooled or water cooled).
b.
Compressor Manual P/N 8040353.
3. After unpacking, inspect the compressor for evidence of damage as
follows:
a.
Inspect the compressor overall exterior for damage.
b.
Report damage to the shipper at once.
c.
Retain shipping cartons for storage or return shipment.
When installing your system, CTI recommends that as you unpack a
component, you perform an inspection and the necessary tasks for system
installation for the component according to the manual included with the
component. Final system installation and operation will be performed
following procedures in the high-vacuum pump or refrigerator manual.
4. Check the helium pressure gauge. The gauge should indicate 250 psig
(1725 kPa) minimum at 70°F. If additional gas pressure is required,
follow the instructions in Adding Helium Gas.
P/N 8040353
2-1
