Janis CCS-150 - The Model 350 CP Cold Head

HELIX TECHNOLOGY CORPORATION
II
O
O
dOIV7,1391tli3b
3611,00A7,0
O
 O
 12
8
CTI-CRYOGENICS
Legend
1.
Cylinder
2.
Second Stage Cold Station
3.
Second Stage Cylinder
4.
First Stage Cold Station
5.
First Stage Cylinder
6.
Top Flange
7.
Helium Gas Supply Connector (with dust cap)
8.
Helium Gas Return Connector (with dust cap)
9.
Electrical Power Connector
10.
Drive Motor
11.
Crankcase (houses drive mechanism)
12.
Pressure Relief Valve
• 

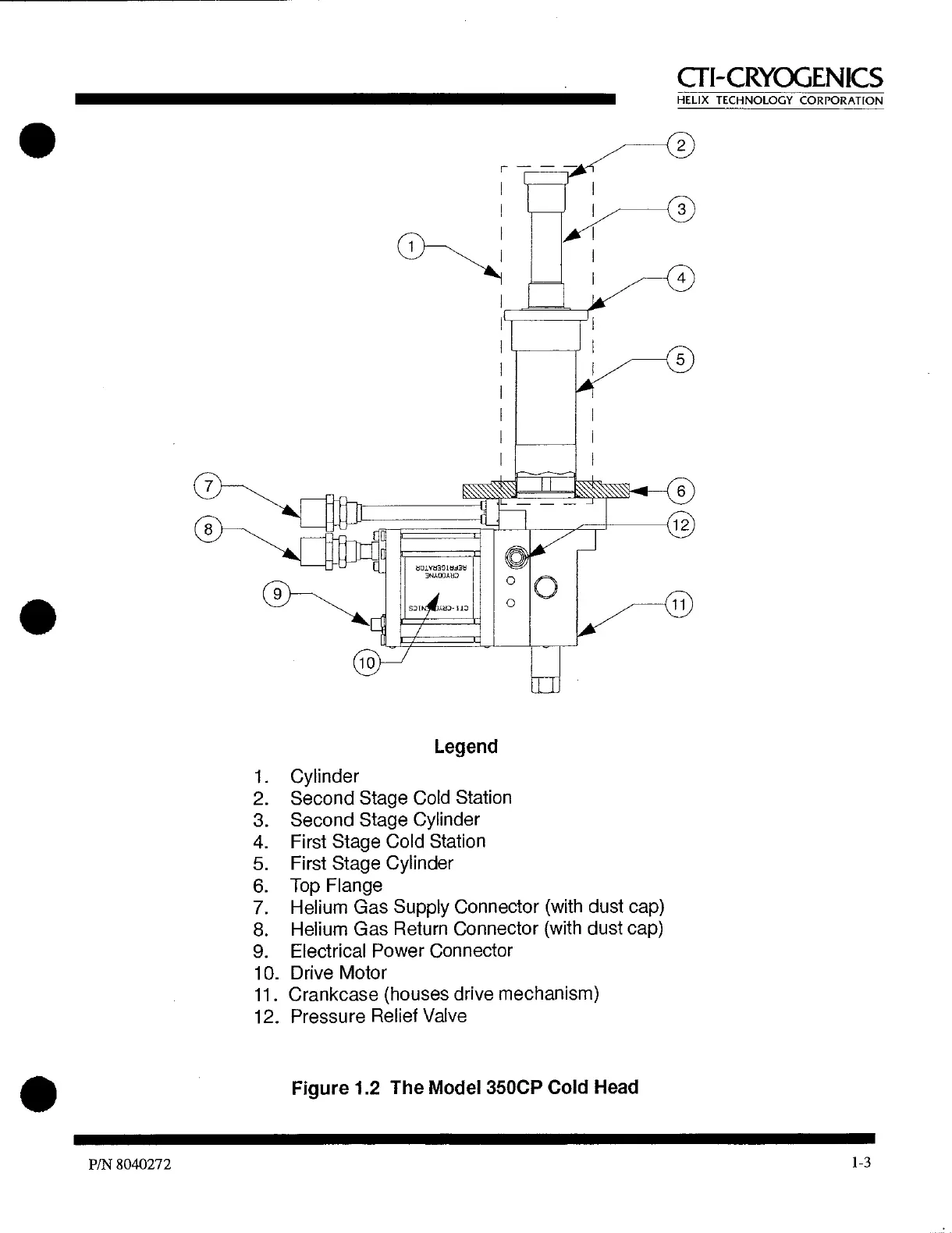

Figure 1.2 The Model 350CP Cold Head
P/N 8040272

1-3
