WARNING
Depressurize the adsorber before disposing of it. Attach the depressur-
ization fitting (included in the Installation and Scheduled Maintenance
Tool Kit) to the coupling half at either end of the adsorber and tighten it
slowly.
—Compressor Base
Maintenance Procedures
CTI-CRYOGENICS
HELIX TECHNOLOGY CORPORATION
Compressor
Rear —IN-
Panel
•
This 1 1/8 in.
wrench holds the
coupling in a station-
ary position.
This 1 3/16 in. wrench is used
to loosen the self sealing
coupling connector. Note the
direction of the large arrow.
This 1 1/8 in.
wrench holds the
coupling in a station-
ary position.
This 1 3/16 in. wrench is used
to tighten the self sealing
coupling connector. Note the
direction of the large arrow.
To Disconnect The Coupling
To Connect The Coupling

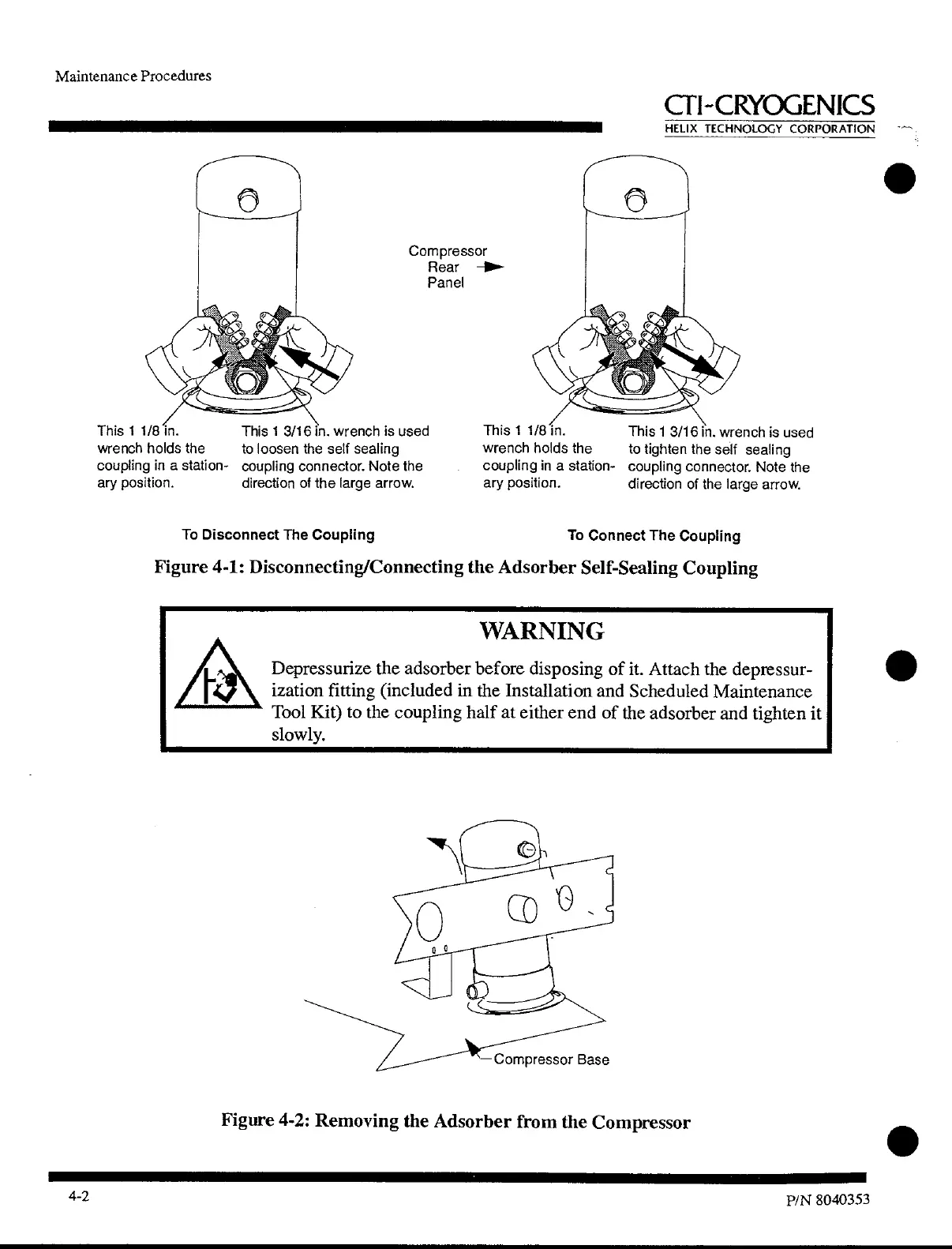

Figure 4-1: Disconnecting/Connecting the Adsorber Self-Sealing Coupling
Figure 4-2: Removing the Adsorber from the Compressor
4-2
P/N 8040353
