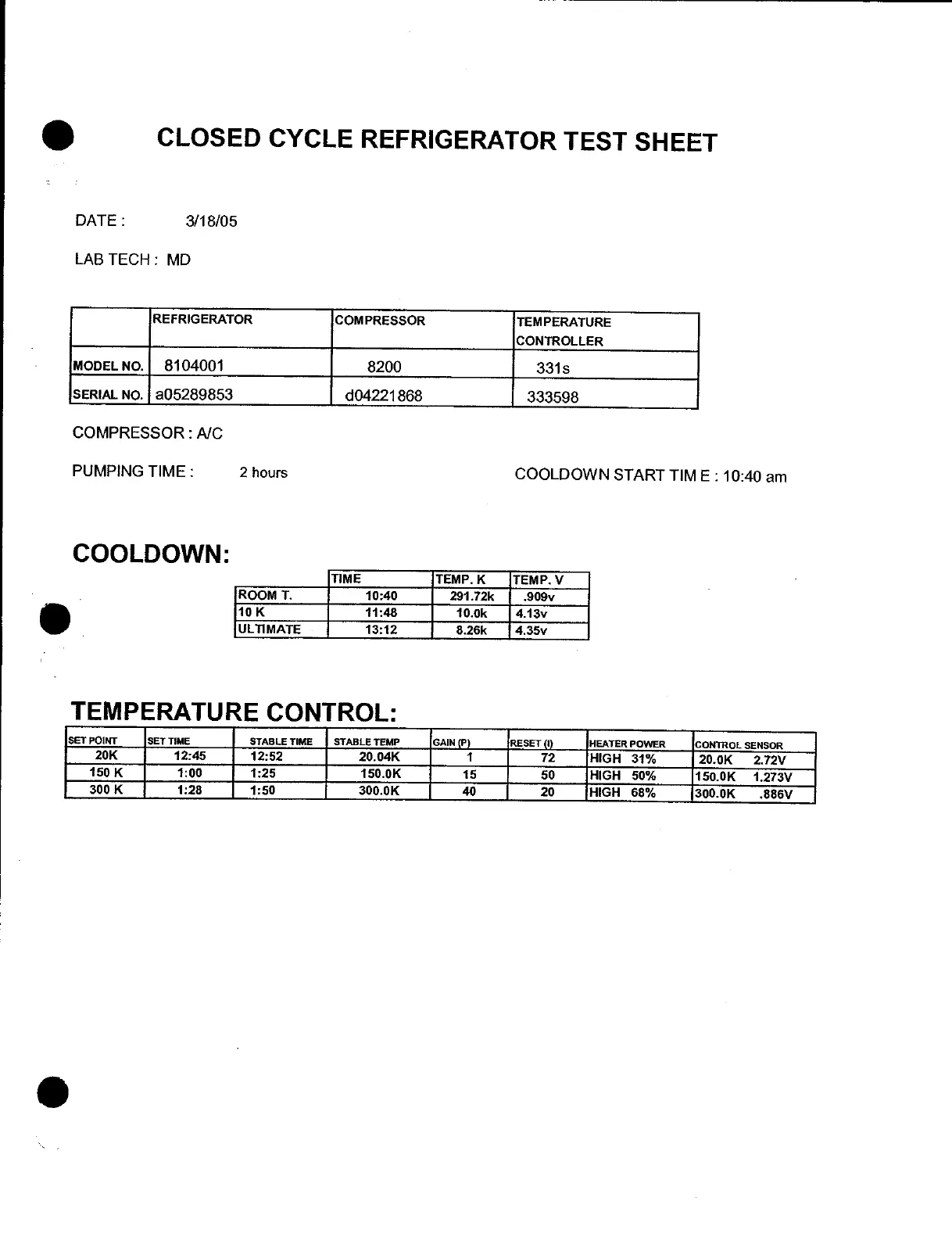

CLOSED CYCLE REFRIGERATOR TEST SHEET
DATE:

3/18/05
LAB TECH : MD
REFRIGERATOR
COMPRESSOR
TEMPERATURE
CONTROLLER
MODEL NO.
8104001
8200
331s
SERIAL NO.
a05289853
d04221868
333598
COMPRESSOR : NC
PUMPING TIME :

2 hours

COOLDOWN START TIM E : 10:40 am
COOLDOWN:
TIME
TEMP. K
TEMP. V
ROOM T.
10:40
291.72k
.909v
10 K
11:48
10.0k 4.13v
ULTIMATE
13:12
8.26k
4.35v
TEMPERATURE CONTROL:
SET POINT
SET TIME
STABLE TIME
STABLE TEMP
GAIN (P)
RESET (I)
HEATER POWER
CONTROL SENSOR
20K
12:45
12:52
20.04K
1
72
HIGH 31%
20.0K

2.72V
150 K
1:00 1:25
150.0K
15
50
HIGH 50%
150.0K 
1.273V
300 K
1:28
1:50
300.0K
40 20
HIGH 68%
300.0K 
.886V
•
