Description
Specification
Cold head power receptacle: Mates with plug on cold head
power cable.
On-Board power receptacle: Mates with plug on cold-head
power cable.
Compressor input-power terminal block enclosure: Mates with
input power cable, fabricated by customer or available from
CTI-CRYOGENICS.
Gas-supply connector: 1/2-inch self-sealing coupling
Gas-return connector: 1/2-inch self-sealing coupling
Interface
AdsOrber. serviceschedulr:
-
Replace every 12 months.
Cooling water require-
ments (water cooled only)
100°F (38°C) maximum discharge temperature
Refer to Figures 3-5 and 3-6 for parameters.
8200 Compressor
CTI-CRYOGENICS
HELIX TECHNOLOGY CORPORATION

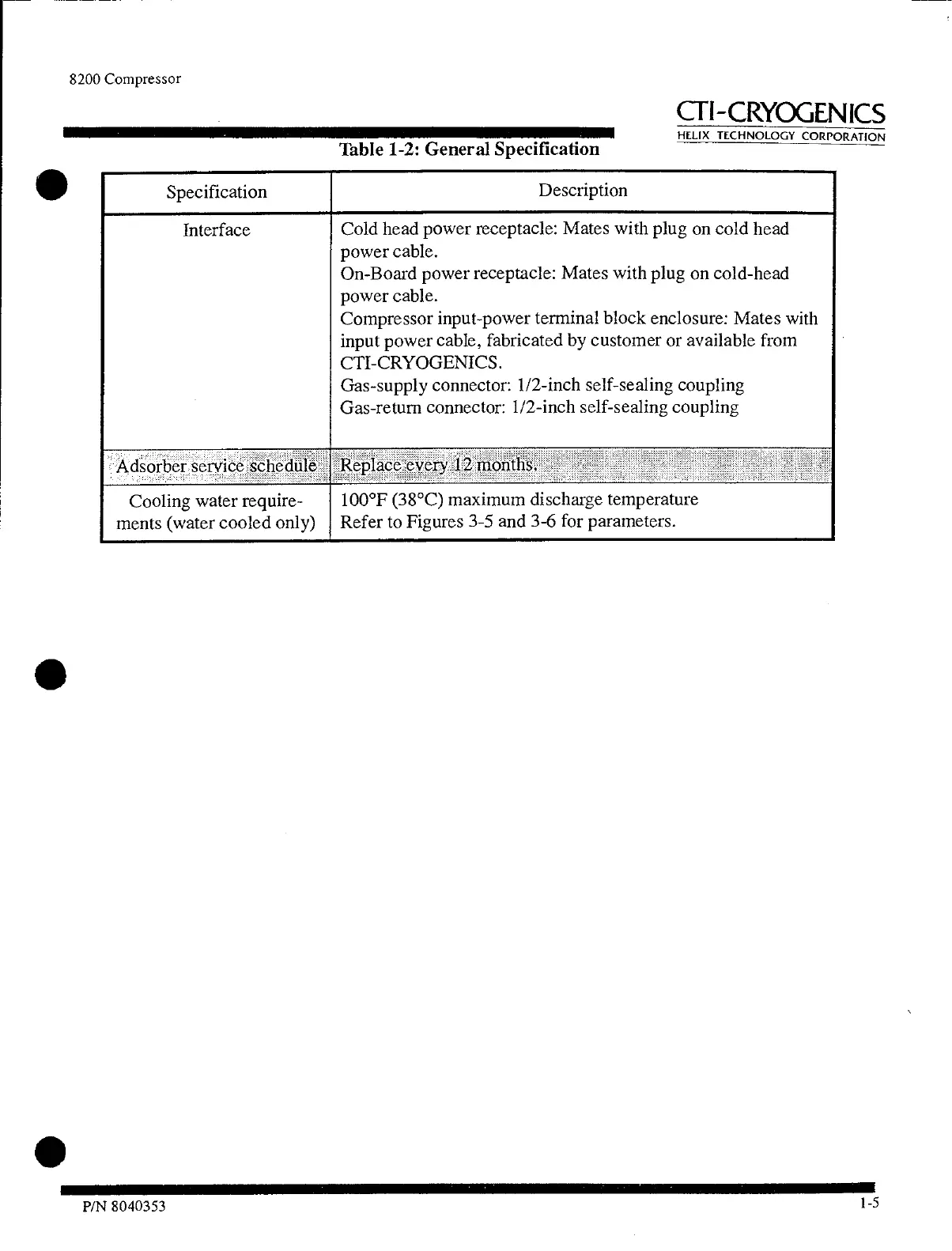

Table 1-2: General Specification
P/N 8040353
1-5
