3. 6 Connections and rating plate
1 2
3
1 24V supply voltage (via 3-pin Phoenix
connector (FE | GND | 24V))
2 USB 2.0 type A
3 Ethernet

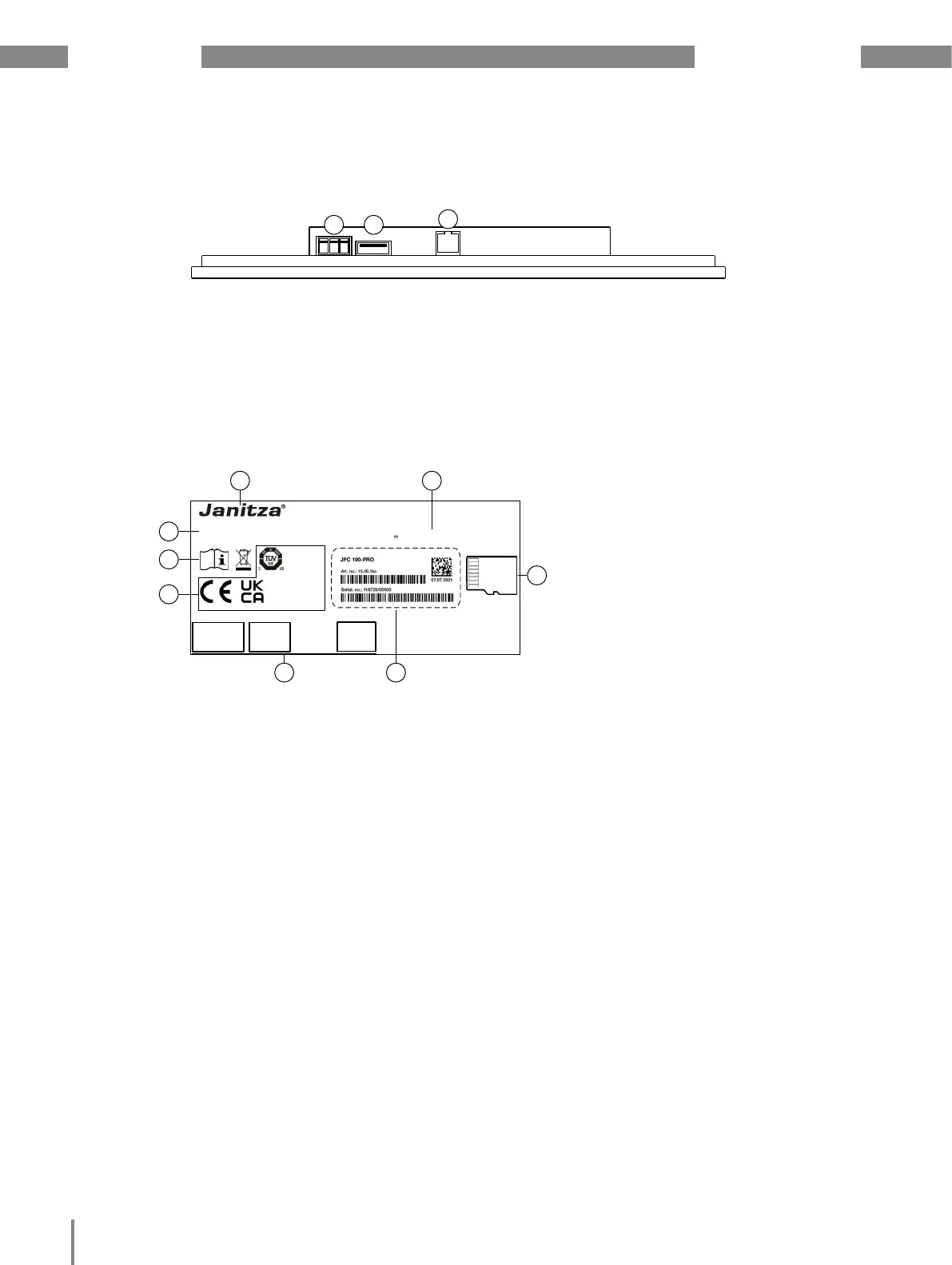

Fig. 1: Bottom view
3. 6. 1 Connections
3. 6. 2 Rating plate
1 2
3
4
8
1 Manufacturer’s logo
2 Operating data (supply voltage and maxi-
mum current draw)
3 Information about elements on the side
4 Product label with device designation,
production date, part number and serial
number
5 Information about connections on the
side
6 Conformity markings
(see section 1. 6)
7 Reference to the usage information and
disposal notice (WEEE)
8 Manufacturer address
Fig. 2: Rating plate
7
5
6
X9
USB1
X5
NET1
X3
MicroSD
X1
Power
FE | GND | 24V
Janitza electronics GmbH
Vor dem Polstück 6, 35633 Lahnau / Germany 24 V / 550 mA max.
Represented by:
Authorised Rep Compliance Ltd.
ARCHouse
Thurnham
Lancaster
LA2 0DT
UK
