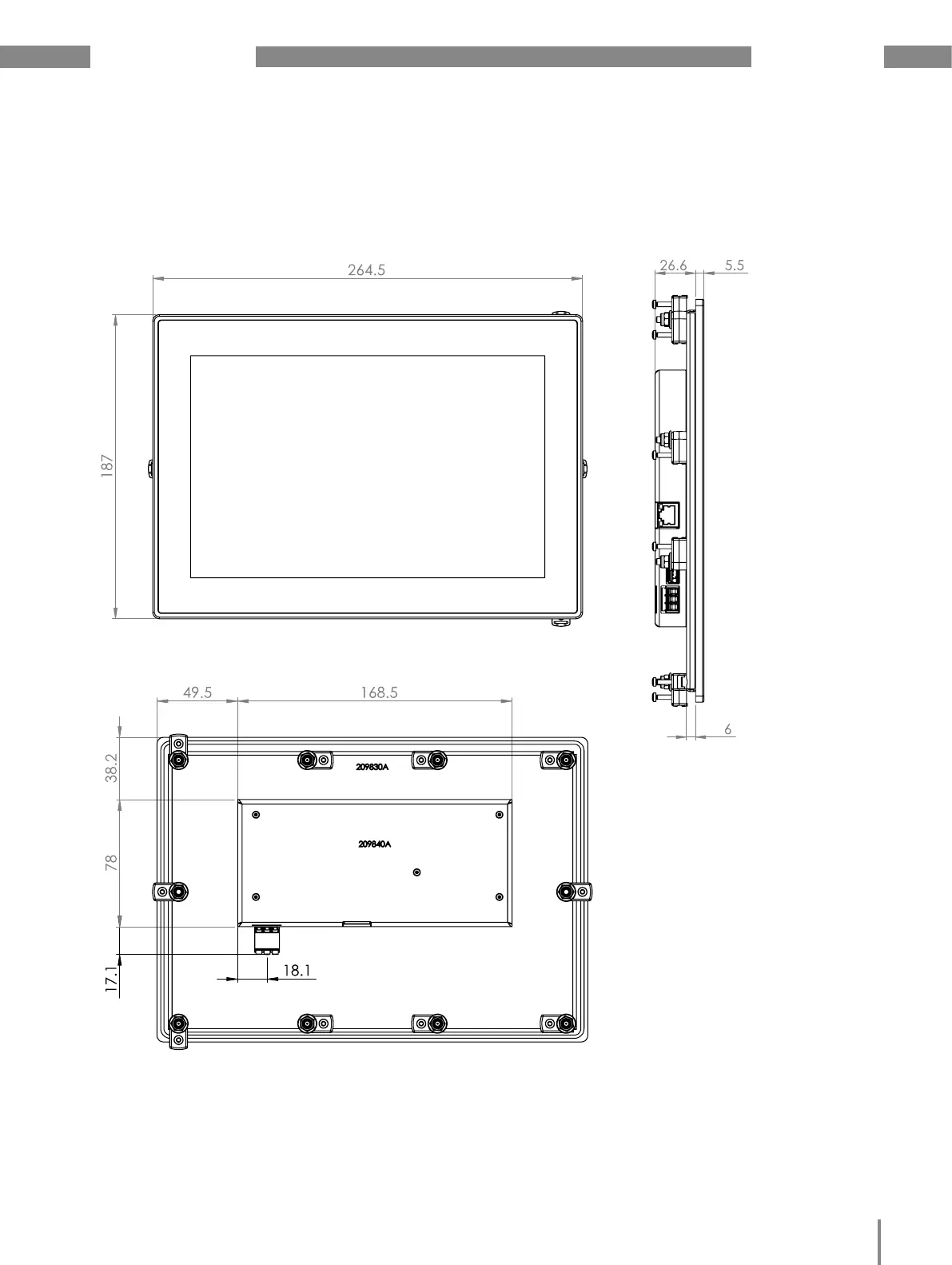

Dimensional drawings
Fig. 7: Front view
Fig. 8: Side view
Fig. 9: Rear view
The figures are for illustration purposes only and are not to scale.
(Dimensions in mm).
