Janome 4120QDC - Front Cover

6
CHanging exteRnal PaRts

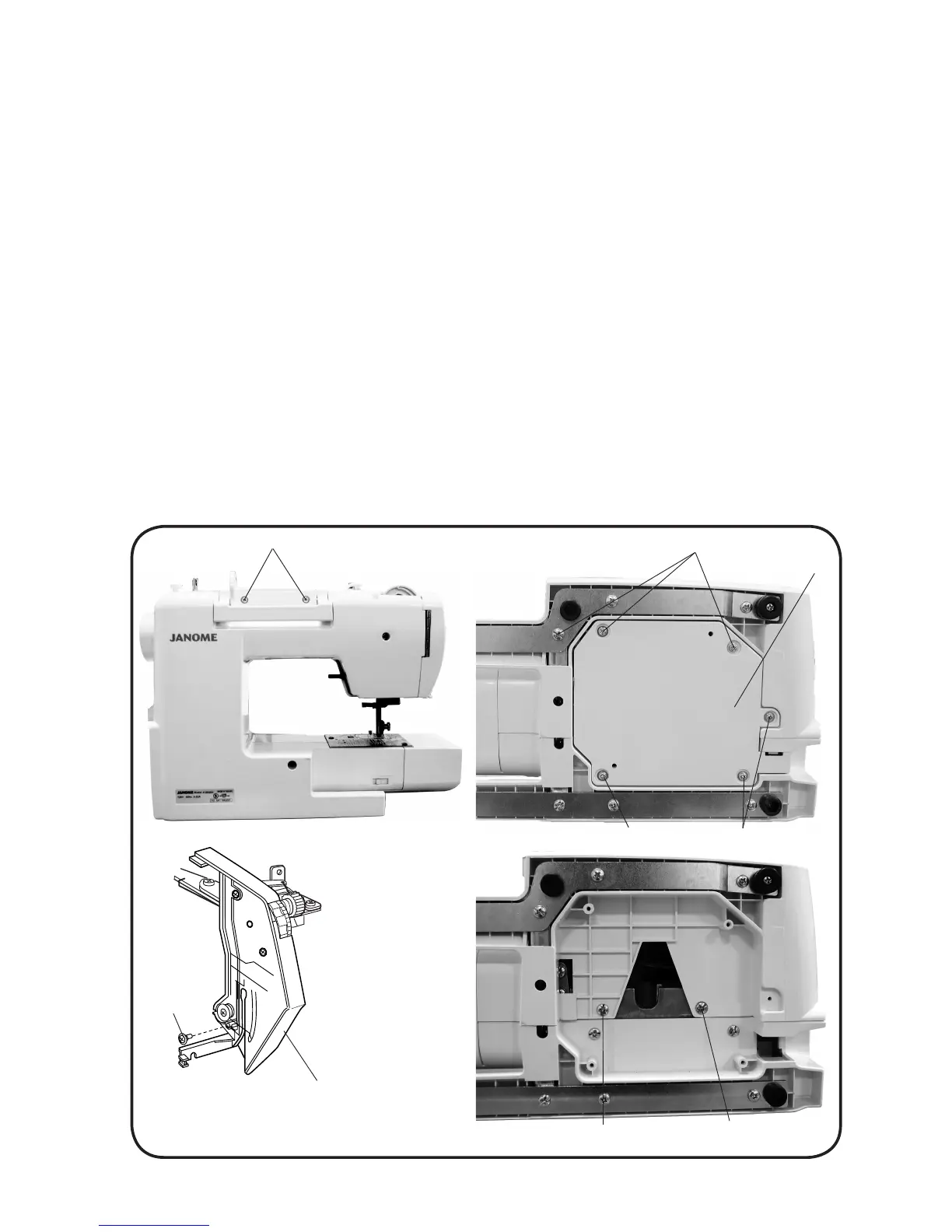

fRont CoveR (1)
to Remove:
1. REMOVE THE FACE COVER AND FREE-ARM COVER (SEE PAGE 8 AND 9).
2. REMOVE THE SETSCREWS (A)
q
(2 PCS.).
3. REMOVE THE SETSCREWS (B)
w
(6 PCS.), BACK COVER
e
.
4. REMOVE THE SETSCREWS (C)
r
(2 PCS.).
5. LOOSEN THE SETSCREW
t
.
6. DISCONNECT ALL THE CONNECTORS FROM THE CIRCUIT BOARD A.
note:
DO NOT DISCONNECT THE CONNECTORS BY PULLING ON CORD.
TO DISCONNECT, GRASP THE CONNECTOR, NOT THE CORD.
to attaCH:
7. FOLLOW THE ABOVE PROCEDURES IN REVERSE.
q
w
e
t
THREAD TENSION
UNIT
w
w
r
r
