68

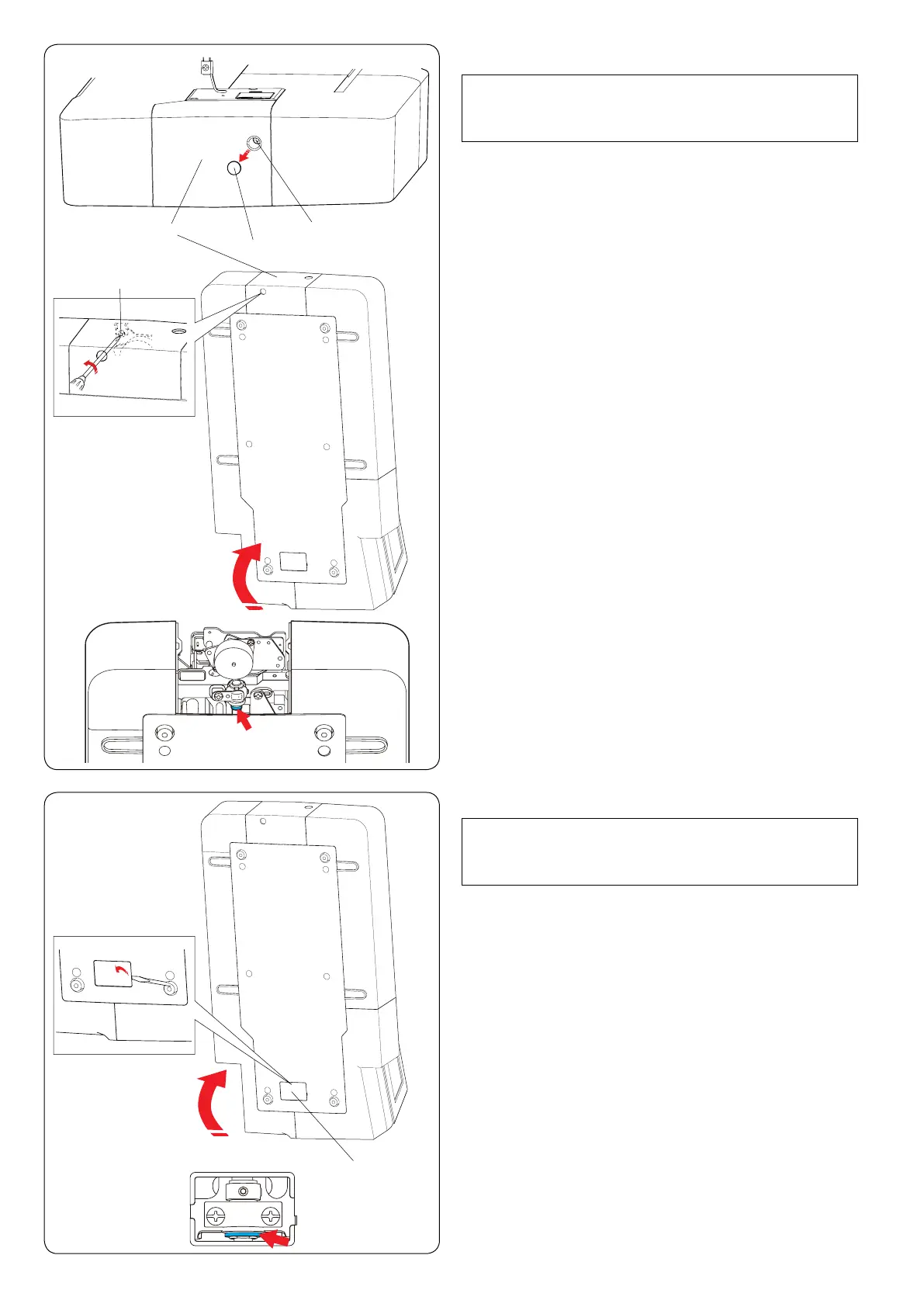

Oil the lower shaft supporter (front)
q
w
r
Oil the lower shaft supporter (rear)
q
Oil the arrow point (felt) as indicated in the illustration.
Oil the arrow point (felt) as indicated in the illustration.
e
NOTE:
Be careful not to damage any parts when raising the
machine.
Remove the cap q and setscrew A w with a screwdriver.
Stand the machine so that the handwheel side comes to
the underside of the machine.
Insert the screwdriver from the bottom hole of the thread
cutter cover. Loosen the setscrew B e.
Remove the thread cutter cover r.
q Cap
w Setscrew A
e Setscrew B
r Thread cutter cover
NOTE:
Be careful not to damage any parts when raise the
machine.
Stand the machine so that the handwheel side comes to
the underside of the machine.
Remove the cover q on the underside of the machine
with a screwdriver.
q Cover
