REMOTE MOUNTING OF AIR BLOWER
The Jason AirMasseur
®
system has been factory
installed following ETL/UL Standard safety guidelines.
During installation, if remote mounting of the air blower
is desired or required, the following procedures should
be followed.
Note: Do no remote mount the blower more than 15
feet [4.5m] away from the air inlet of the bath. Choose
a location as close as possible to the bath to ensure
maximum efficiency.
1. The installer must determine the layout of the
piping; exact remote mount location; and
service access before beginning any work. Use
1.5” ABS or PVC plastic tubing. Locate the
blower in an area accessible for servicing.
2. Note: A 15 foot extension set can be
purchased from your Jason supplier, if needed.
To ensure proper functioning of the system,
avoid remote mounting in a location which
requires more than six (6) piping direction
changes. A 90° direction change should be
made up of two 45° elbows for maximum
efficiency.
3. If the blower has been factory installed,
disconnect the blower from the air bath
plumbing by removing the two (2) screws on
the check valve outlet and disconnect the short
piece of pipe between the check valve and the
elbow by removing the two (2) screws in the
elbow. [Omit this step on baths where the
blower is not factory installed and remote
mounting is required.]
4. Install the blower in the remote location. The
remote mount location ambient air temperature
should remain at approximately 72°F [22°C] for
optimum air heating.
5. Make sure the blower is well ventilated. The
blower mount should be attached firmly to the
floor. Piping between the remote blower
location and the bath can be insulated using a
minimum of ½” [13mm] thick insulation. Attach
new piping to the elbow of the existing piping.
FIELD INSTALLATION OF THE
WHIRLPOOL PUMP ASSEMBLY
The Jason Whirlpool system has been factory installed
following ETL/UL Standard safety guidelines. For
shipping purposes on some bath models, the Whirlpool
pump assembly may be packaged separately and
disconnected from the bath.
WARNING: Any modification to the equipment is
not recommended and will VOID the manufacturer’s
warranty.
To install the Whirlpool Pump Assembly to the bath, the
following procedures must be followed.
1. Before beginning any work, the installer is to
determine the proper location of the pump unit
and service access.

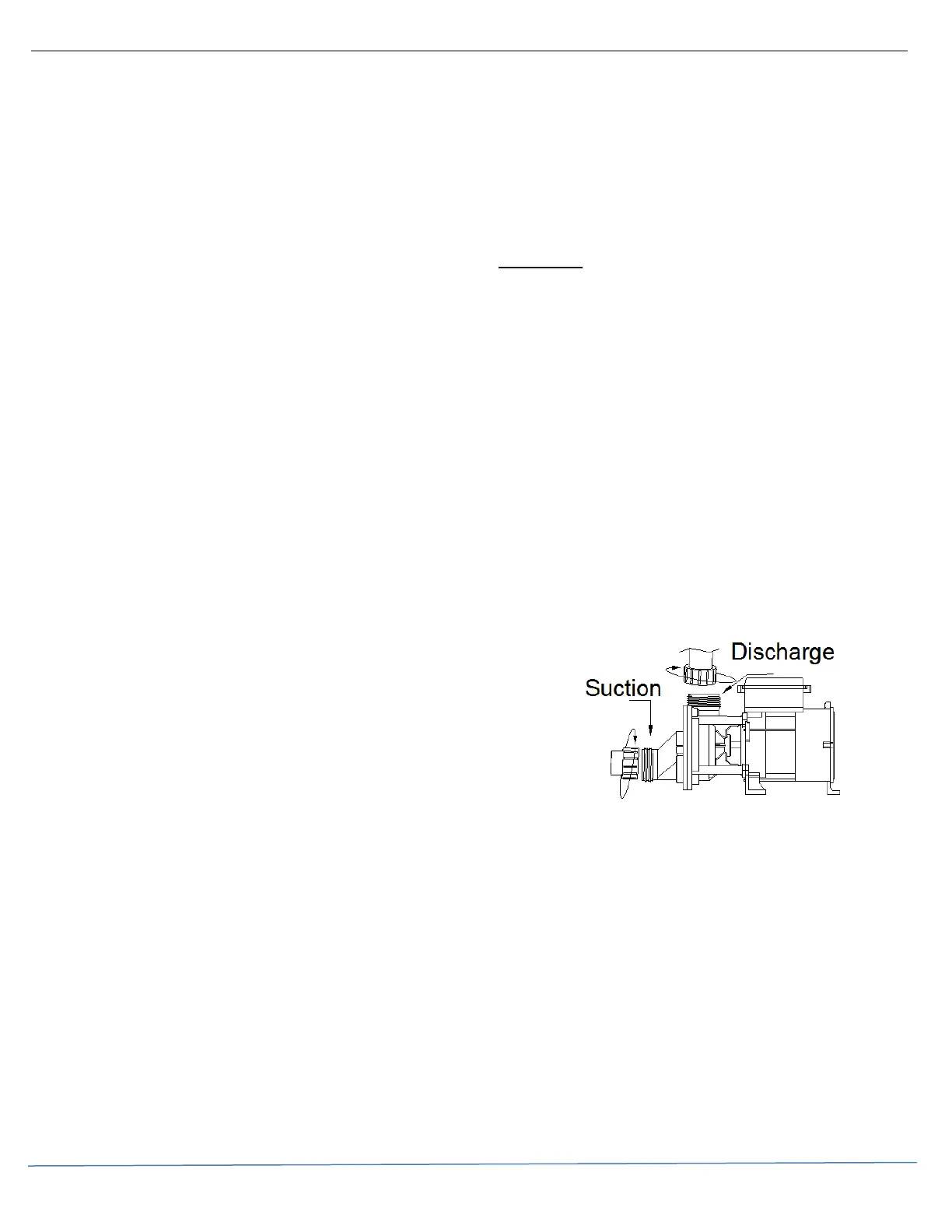

2. Thread the discharge union onto the discharge
of the pump.
3. Thread the suction union fitting onto the suction
of the pump.
4. Connect the Whirlpool Pump Assembly power
cord to the Load line of the control box.
Caution: Hand-tighten unions only. Over tightening
may cause damage to the seals.
