7.0 MAINTENANCE
7.1 Your recovery machine will provide many seasons of reliable service if it is properly maintained.
The actual maintenance requirements are minimal but important.
7.2 Keep the unit clean by wiping it down with a damp cloth to remove dirt, oils, etc. Prior to storage
for the day. Standard household detergent or isopropyl alcohol may be used if the unit is particularly
dirty; in all cases, exercise care to prevent liquids from entering the unit. Gasoline and other solvents
are to be avoided as they can damage the plastic enclosure and are hazardous.

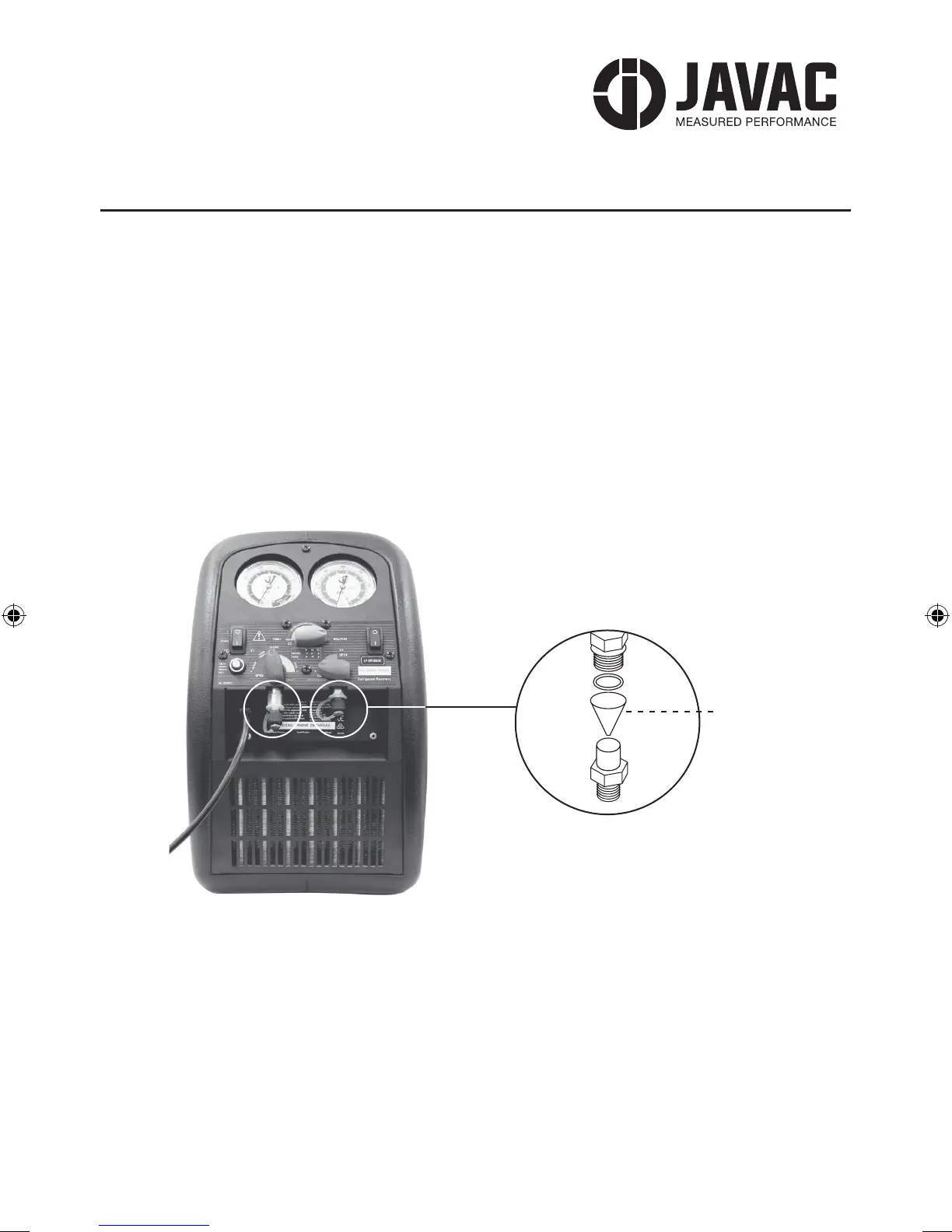

7.3 Clean inlet particle lter regularly. Discard internal lter screen if it is heavily contaminated and
replace with a new screen. Replace screen as per sketch for eciency.
7.4 Ensure that the Inlet and Discharge ports are protected and kept clean by replacing the plastic
caps after every use. For best results, keep a FILTER permanently connected to the INLET port and
change it regularly.
7.5 Change HOSES periodically as they develop leaks and a build-up of contaminants over time.
Change hoses at least once per season.
7.6 When storing the recovery machine for the season, or for long periods of time, PURGE the unit
with an inert gas such as nitrogen.
7.7 When performance falls o it is likely that the compressor seals require replacing. This is normal
with use and may occur after a year or two or more often, depending upon the conditions that are
prevalent during the recovery operations. Contact your Wholesaler for assistance in selecting the
proper maintenance kit.
FILTER
SCREEN
DIRECTION
RECOVERY UNIT
POWER
SOURCE
OPTIONAL
CONNECTION
TO SYSTEM
CYLINDER
WITH
CT-OFD
SCALE
VAPOUR LIQUID
RECOVERY UNIT
VAPOUR
VAPOUR
LIQUID
SYSTEM
POWER
SOURCE
FILTER
CYLINDER
WITH
CT-OFD
SCALE
LIQUID
RECOVERY UNIT
LIQUID
CYLINDER
SCALE
POWER
SOURCE
RECOVERY UNIT
VAPOUR
LIQUID
LIQUID
SYSTEM
CYLINDER
WITH
CT-OFD
SCALE
POWER
SOURCE
FILTER
VALVE POSITIONS FOR PUSH/PULL METHOD
V2
L
I
Q
U
I
D
OPEN CLOSEPURGE
PURGE RECOVER
OPEN
V3
V1
VALVE POSITIONS DURING PURGE OPERATION
V2
L
I
Q
U
I
D
V1
CLOSE
OPEN
CLOSEPURGE
PURGERECOVER
OPEN
V3
VALVE POSITIONS DURING SUB-COOLING METHOD
V2
L
I
Q
U
I
D
V1
CLOSE
OPEN
CLOSEPURGE
PURGE RECOVER
OPEN
V3
VALVE POSITIONS DURING NORMAL RECOVERY
V2
L
I
Q
U
I
D
V1
CLOSE
OPEN
CLOSEPURGE
PURGERECOVER
OPEN
V3
