Slideout SyStemS
1. The auxiliary battery (customer supplied) must be fully charged and connected. If
possible, the recreation vehicle should be hooked up to 120-volt AC power so the
converter operates.
2. The recreation vehicle must be level and the stabilizer jacks in the extended position.
3. Most slideout switches are located on the inside of the recreation vehicle, either in the
command center panel or on the wall. To move the room out, press the OUT section
of the switch and hold it until the motor stops (travel time is approx. 25 seconds).
Operating the switch after the room is fully extended will damage the switch and
motor. Some models may be equipped with a wireless remote control to operate the
slideout. To operate the slideout using the remote, press the on/off button to power
on the remote. Select the slideout you want to operate by pressing the corresponding
button. Next, press and hold the (extend/retract) arrow button to move the room in or
out. When you are nished moving the slideout,, press the on/off button once more
to power off the remote. DO NOT try and time the end of the stroke by releasing the
button early. ALWAYS allow the controller to stop both motors before releasing the
switch button.
After the slideout is extended, verify that
the corners of the black rubber seal are set
up correctly. The corners of this seal are
cut at a 45° angle. The top of the seal must
overlap the side of the seal to avoid the
possibility of water penetration.
NOTE: Do not operate the switch after the room is fully extended
as damage can occur to the motor and/or switch.

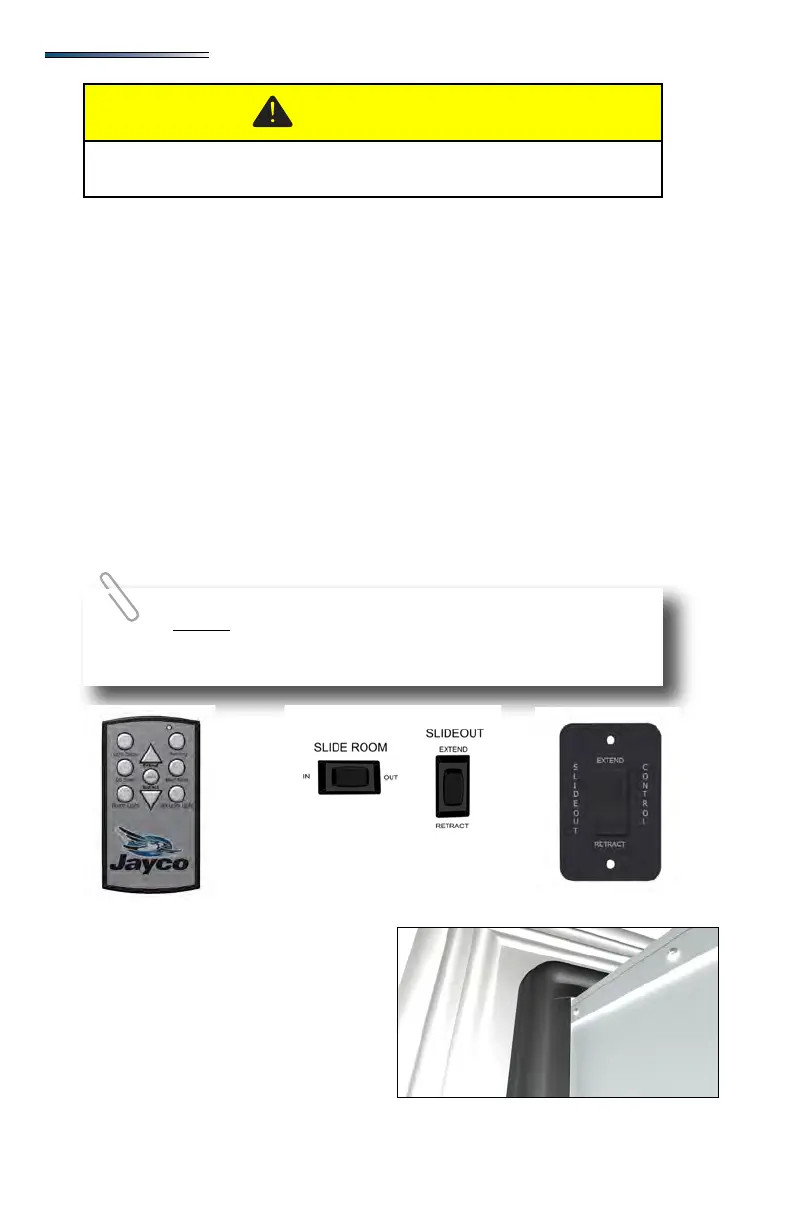

Slideout remote control
Slide room switches on monitor
panel
Slideout Wall Switch
Exterior slideout room corner
Additional support jacks are not needed under the slideout. Damage can occur
to your slideout room from improper use of aftermarket support jacks.
