Jayco 2016 PINNACLE - Load Center

72
electrical SyStem
Load Center
The Load Center contains 12VDC fuses and 120VAC circuit breakers for almost all of the
electrical appliances and circuits in the RV. The 120V Main Breaker (if so equipped) is
located in this panel and will turn off all 120-volt power to the recreation vehicle. The Load
Center is a hinged plastic panel typically attached to a cabinet face in the main living area.
Locations will vary by model. Refer to the diagram inside the Load Center for specic fuse
assignments. Most load centers contain the same components, but they may be positioned
differently. Not all load centers will include a main breaker.
Approximate Electrical Load Ratings
12 Volt System
Aisle Lights 1.0 AMP
Baggage Compartment Lights 1.4 AMPS
Decorative Wall Lights 1.5 AMPS
Dinette Light 4.5 AMPS
Exterior Entertainment Center 5-7 AMPS
Fantastic Fan 1.5 AMPS
Fluorescent Double Lights -12” 2.0 AMPS
Fluorescent Double Lights -18” 2.5 AMPS
Furnace 12.0 AMPS
Generator Start 95.0 AMPS*
Halogen Light 1.7 AMPS
Illuminated Switch .125 AMP
Inverter variable
Leveling System 95.0 AMPS*
LP Detector .125 AMP
Map Light 1.5 AMPS
Porch Light 1.5 AMPS
Power Awning 10.0 AMPS
Power Vent 5.0 AMPS

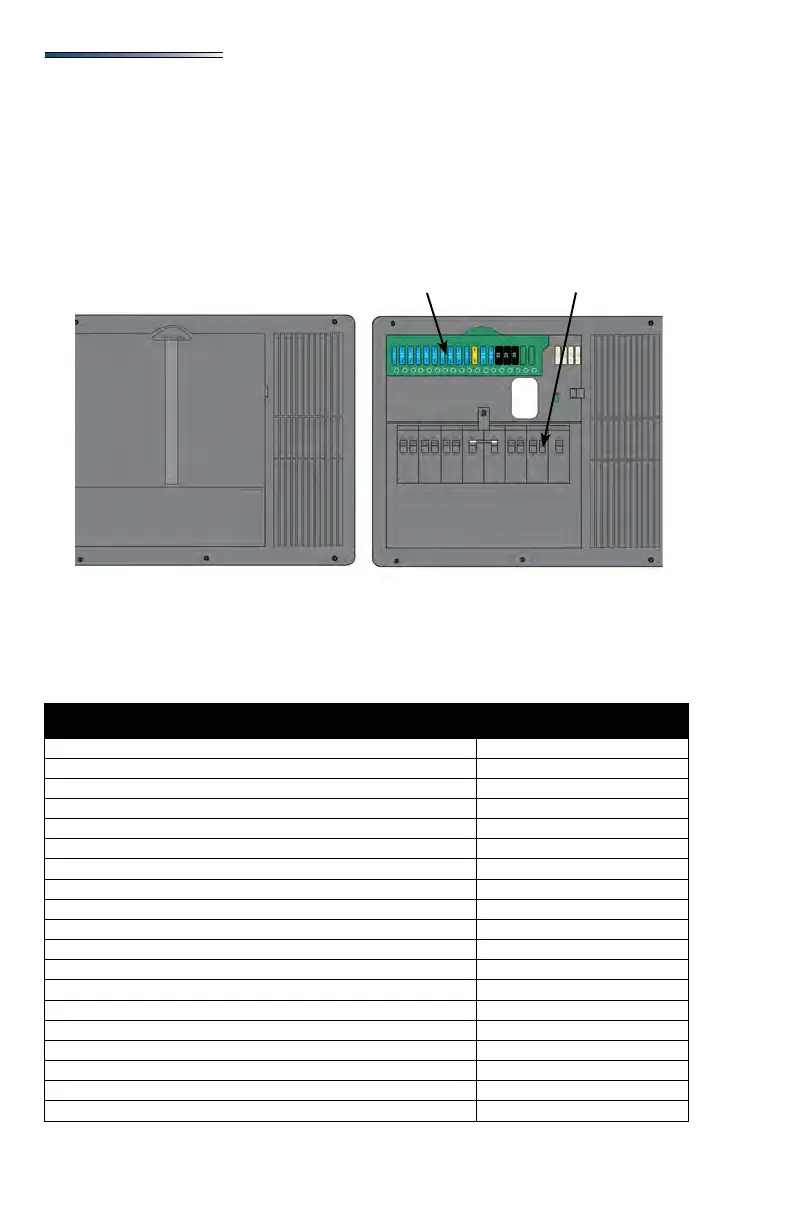

Typical Load Center Exterior
Panel
50A Load Center Panel w/120 volt
Main breaker
12V fuses
120V Main Breaker
