electrical SyStem
Mounted to wall

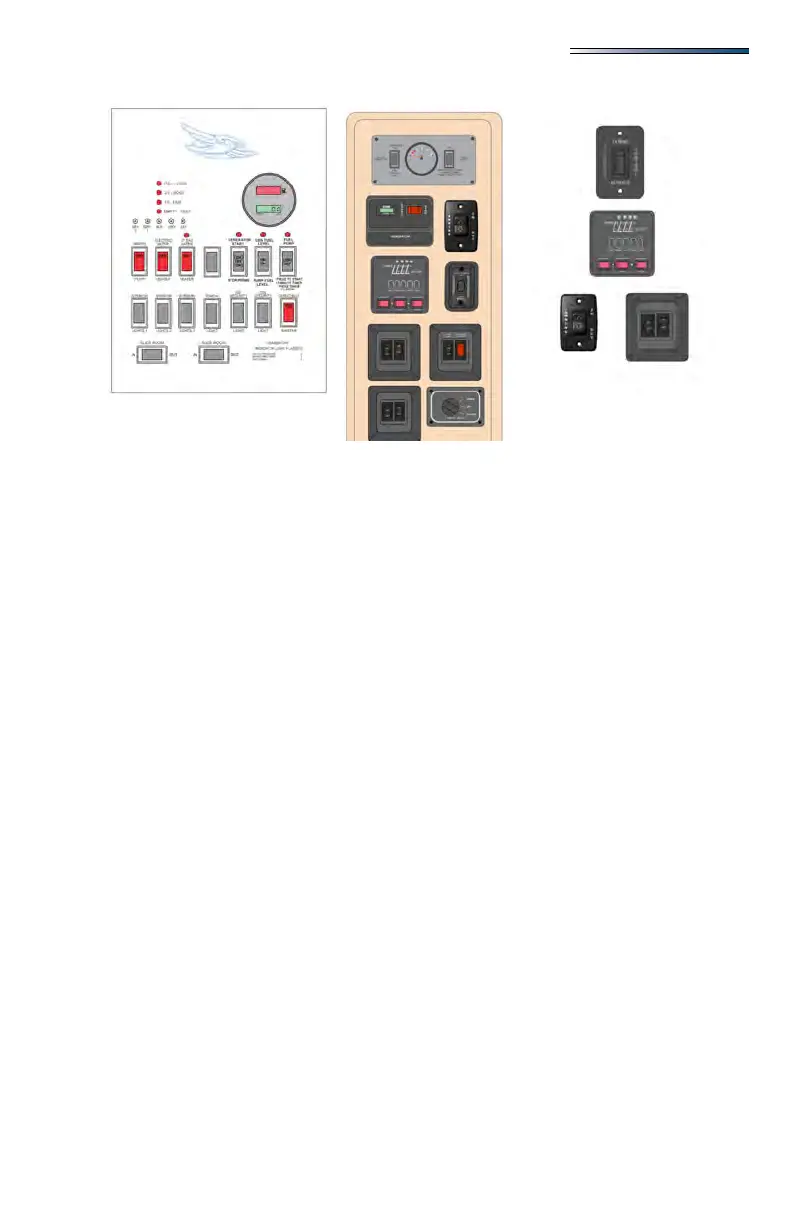

Command Center Panel W/Switch Modules
Command Center Panel
Command Center Panel:
Typical items found on this panel include (may vary depending on model):
Fuel gauge and hour meter with switches for fuel pump and fuel levels
Lighted red pump switch, lighted red water heater switches (electric & LP gas)
Generator start / stop switch
Tank heater switches
Light switches for porch lights, exterior security lights, interior lights, awning
LED lights, front cap LED accent lights
Cargo bed red lighted master control switch
Slideout control switches (press and hold to extend / retract)
Awning control switches (press and hold to extend / retract)
Command Center Panel with Switch Modules:
Items may include separate switch modules and controls that are mounted to a recessed
plastic panel.
Typical items found on this panel include (may vary depending on model):
Systems monitor with LED indicators for tank levels and battery charge status
Systems monitor includes lighted red switches for pump and water heater
Slideout switches (press and hold to retract / extend slideouts)
Light switches for porch lights, exterior security lights, interior lights, awning
LED lights, power entry step
Awning switches (press and hold to retract / extend awning)
Auto leveling control panel (for leveling the recreation vehicle)
Inverter panel (power switch with display)
