plumbing SyStem
There are two different water systems in your recreation vehicle:
The fresh water system consists of the fresh water holding tank, fresh water connections,
water pump, outside shower assembly (if so equipped), water heater, faucets, tub/
shower, and water purication system (if so equipped).
The waste water system consists of the waste water holding tank, sewage holding tank,
drains and toilet.

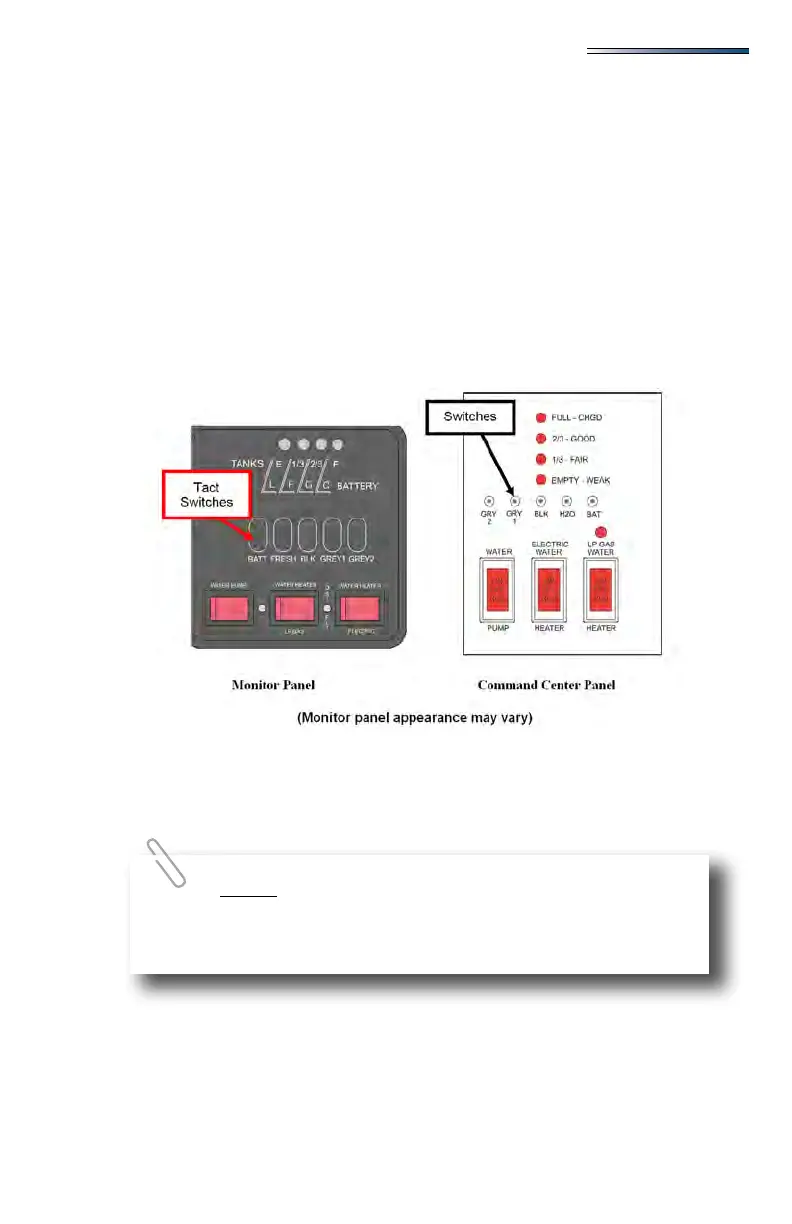

Monitor Panel (if So equiPPed)
The interior wall-mounted Monitor Panel allows you to monitor the fresh water, grey water,
black water and auxiliary battery levels. These functions are controlled using the “tact”
switches located on the monitor panel faceplate. The Monitor Panel operates on 12-volt
DC power supplied by either the converter or auxiliary battery. No power is drawn from
the battery unless a switch is pushed or turned ON. Fuses for the Monitor Panel are located
in the Load Center. Refer to the manufacturer’s operators manual for further information.
Operation
Press only one “tact” switch at a time. As you push either the “FRESH”, “BLK” “GREY1”
or “GREY2” switch, one or more LED lights will illuminate (from left to right) indicating
the content level for that tank. When pushing the “BATT” switch, the LED lights illuminate
from left (lowest) to right (highest) to indicate the estimated auxiliary battery condition.
The LEDs corresponding to the letters C,G,F,L on the panel indicate the following:
C = Charge at 12.7 volts
G = Good at 12.1 volts
F = Fair at 11.6 volts
L = Low at 6.0 volts.
NOTE: When using shore power all 4 LEDs will light. If discon-
nected from shore power, 3 LEDs will light to indicate a full charge.
(The 4th LED may blink)
