A 12-volt DC motor and drive shaft will operate the room using energy from an
on-board auxiliary battery.
•
A specially designed auto reset fuse with load sensing capability stops the motor
when the room reaches its fully extended or retracted position.
I
WARNING:
V
Ensure that the trailer is level before operating the slideout room.
Water leaks and other problems could result if the slideout is operated
without leveling the trailer.
V
Ensure there are no people or obstructions blocking the path of the
room when it is moving.
V
Keep away from the slide rails when the room is in motion.
V
The gear assembly may pinch or catch on loose clothing causing
personal injury.
V
Always install travel bars for storage and transportation.
V
Ensure the slideout is in the closed position prior to hooking the unit to
the tow vehicle.
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN
SERIOUS INJURY OR DEATH.
Caution: After the slideout is extended, verify that the corners
of the black rubber seal are set up correctly. The corners of this
seal are cut at a 45 degree angle. The top of the seal must
overlap the side of the seal to avoid the possibility of water
penetration. (Fig. 9)
Extending Room
1. The batteries must be fully charged and connected. The trailer should
be hooked up to 120-volt AC power, if possible.
2. The trailer must be level and the stabilizer jacks in the down position.
Caution: Additional support jacks are not needed under the slideout.
Damage can occur to your slideout room from improper use of support
jacks.
3. Remove the “travel bars” (Fig. 10) from behind the top facia board
located above slideout room.
4. Locate the slideout room control switch (Fig. 11) .
5. To move the room out, press the “out” button on the switch and hold it until the motor
stops. Release the button. Travel time – approximately twenty-five seconds.
Retracting Room
1. Remove all objects left between the slideout and cabinetry.
2. Press the “In” button to bring the room in and hold it until the motor stops.
Jay Feather Conventional Travel Trailer 41
Setting Up Camp...

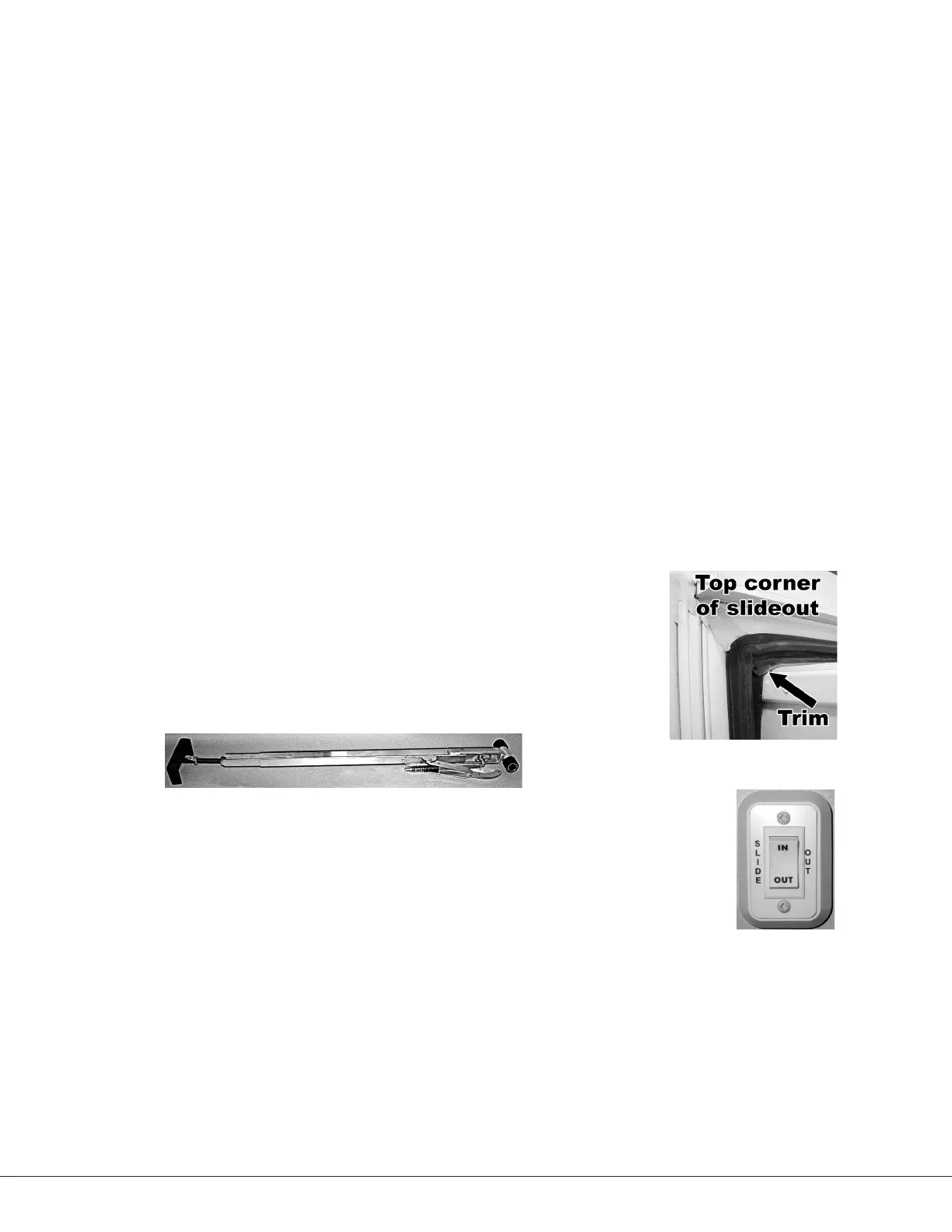

Fig. 9
