OPD OVERFILL PROTECTION
Your LP gas container(s) are equipped with Type 1 ACME LP Gas Connections. No tools
are required to tighten or loosen the connections. They are designed so gas will not flow
from the container unless the correct connection is made.
Make sure you read, understand and follow the information supplied with your unit that is
relevant to the LP gas container connections for your safety and convenience of use of the
OPD overfill protection.
The position of the LP gas container(s) and the hoses are critical to proper operation and
gas flow. Follow these instructions to make sure your LP gas container(s) are connected
properly.

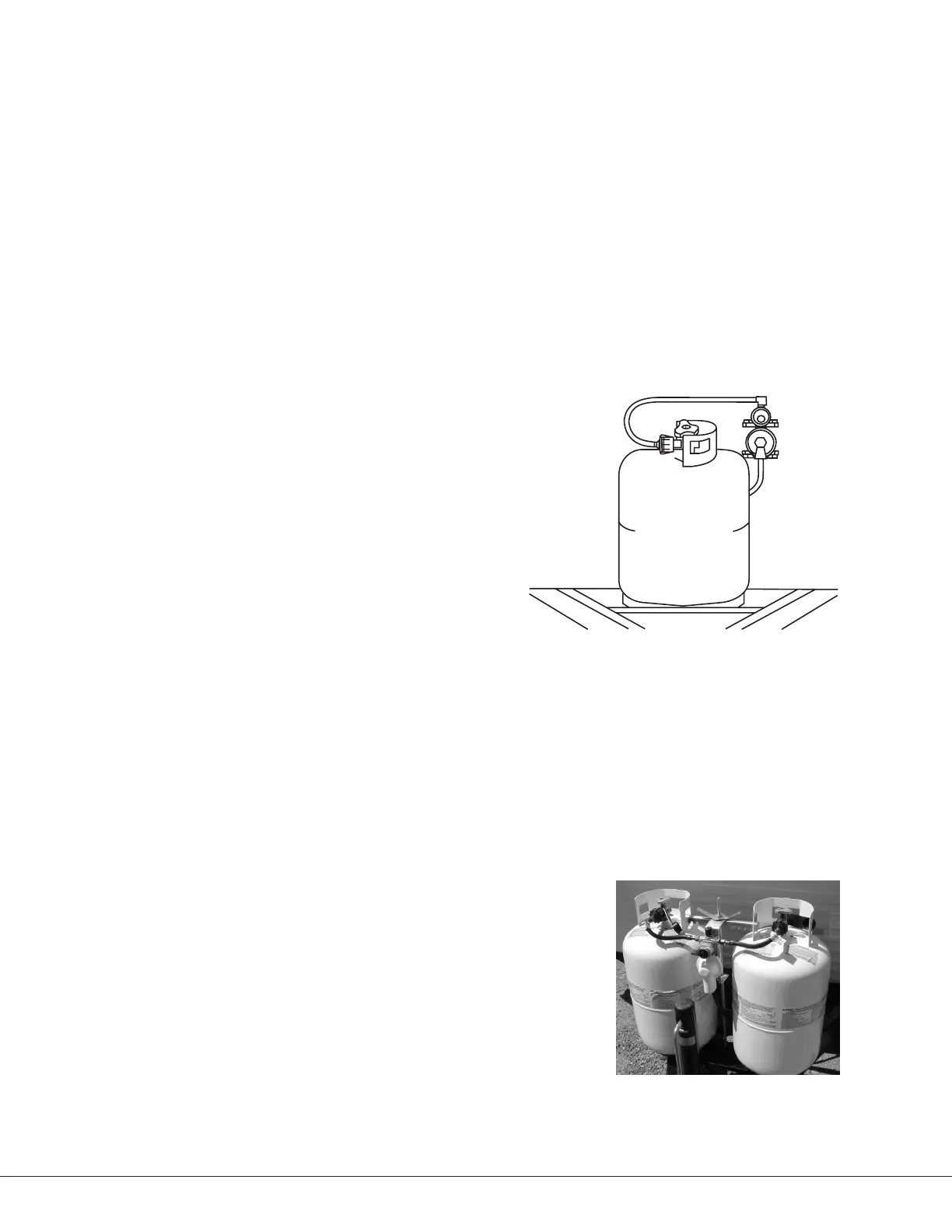

SINGLE CYLINDER MOUNTED ON A-FRAME
(JAY FEATHER SPORT)
1. Connect the 3/8" low pressure hose to the
outlet of the two stage regulator.
2. Attach the regulator with the “Z” bracket
on the center of the front wall with the
vent pointing down.
3. Attach the protective plastic cover to the
regulator.
4. The regulator has a 90° elbow that directs
the inlet toward the trailer curbside.
5. Place the cylinder on the bracket provided
on the A-frame and position is so the
outlet of the cylinder valve is pointed
directly outward to the curbside wall.
6. If a vinyl cylinder cover is provided, slip it over the cylinder and leave the zipper
open.
7. Attach the 1/4" inverted flare x 24" Type 1 pigtail hose to the regulator inlet and the
right hand swivel nut to the cylinder valve.
8. If applicable, close the cylinder cover zipper up to the hose.
9. Secure the cylinder to the A-frame bracket using the bolts, nuts and washers
provided.
DUAL CYLINDER ASSEMBLY WITH BOTTLE RACK ON
A-FRAME OR FRONT TRUNK
The containers must be positioned in the tray with the
valves pointing away from the trailer. The wing nut is
placed on the threaded rod to hold the cross bar down and
orient the containers. The regulator bracket is held in
position by the threaded rod and centers the regulator
between the two cylinders which are secured at the base on
the tray.
1. Connect the 3/8” low-pressure hose to the outlet of
the two-stage regulator.
2. Place the cylinders on the bracket provided on the A-frame and secure them so the
outlet of the cylinder valves point away from the front of the trailer.
Jay Feather Conventional Travel Trailer 59
Utilities/Systems
Cylinder
Type 1
Acme
Conector
Cylinder
Collar
Regulator
ex
e
gta
ose
Cylinder Valve
Fig. 21
Fig. 22
