LIGHTS
Exterior
All exterior running lights, such as tail lights, clearance lights, turn signals, brake lights,
etc., are energized by the tow vehicle power. When attaching wires to your tow vehicle,
carefully and tightly tape all connections for moisture protection.

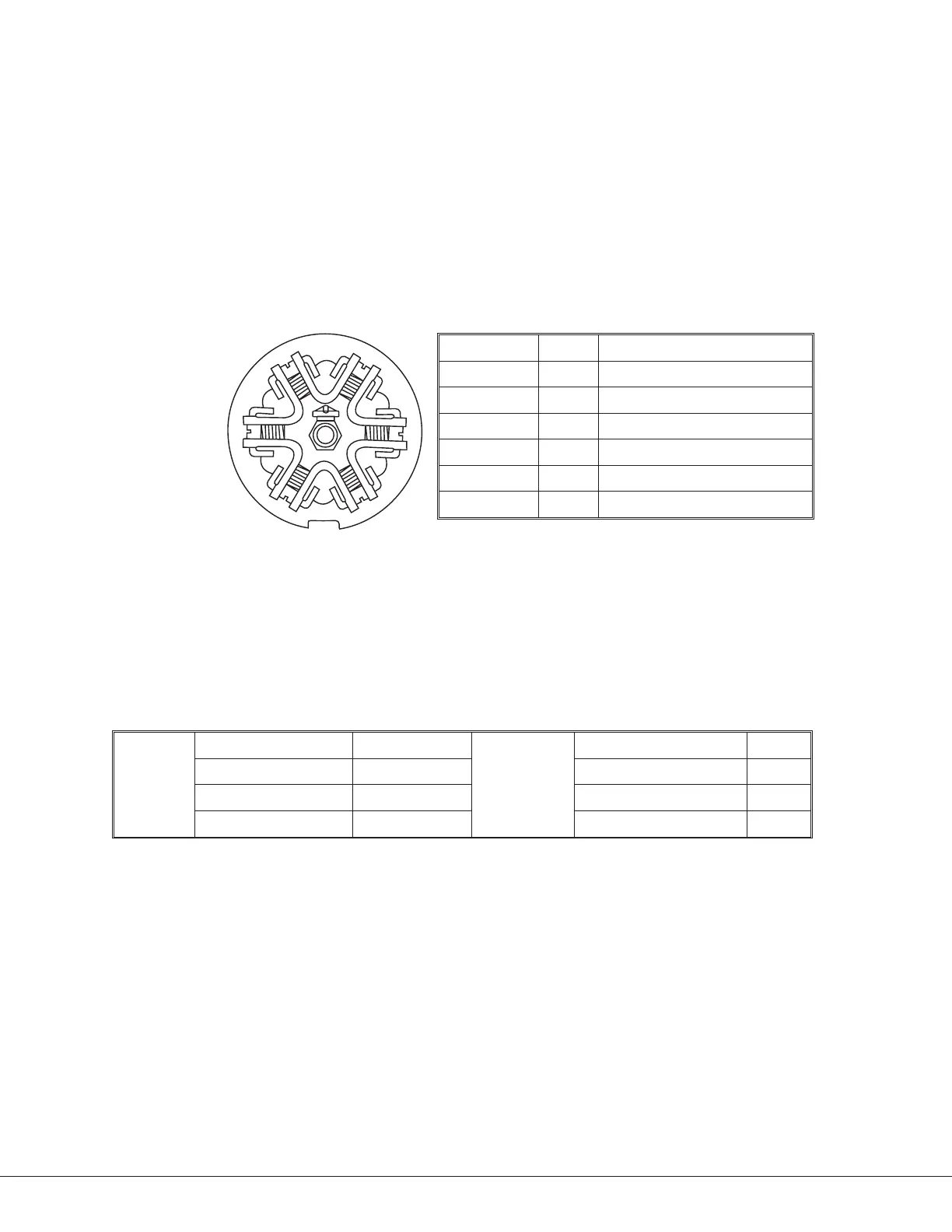

Refer to diagram (Fig. 26) for the color code of the seven pin connector. The connector
between the tow vehicle and your travel trailer may build up corrosion with extended use,
and should be cleaned periodically to insure good electrical contact.
Porch
Porch light(s) will have switches located on the wall inside of the entrance door.
Interior
The interior lights will operate from the converter and/or auxiliary battery. Some lights will
have wall switches and others will have switches in the fixtures themselves.
BULBS
Interior
Square lights #921
Exterior:
Porch Light #912
Round Lights #912 Tail Light #1157
Power Hood Lights #912 Turn Signal & Brake #1157
Clearance Light #194
FUSES
All fuses for the interior of the trailer and external porch lights are located in the fuse panel.
This panel is located near the converter.
I
WARNING: Do not replace circuit breakers or fuses with a higher
current rating than those supplied with the new camper. Over fusing
can cause a fire hazard by overheating the electrical wiring.
TELEVISION CABLE
The television coax cable is sized to accept satellite dish installations.
66 Jay Feather Conventional Travel Trailer
Utilities/Systems
4 black
6 brown
3 green
5 red
7 yellow
1 white
2 blue
Fig. 26
White 1 Ground
Blue 2 Brakes
Green 3 Running lights
Black 4 Interior 12-volt lighting
Red 5 Stop & left turn
Brown 6 Stop & right turn
Yellow 7 Back up
